Build
| Frame |

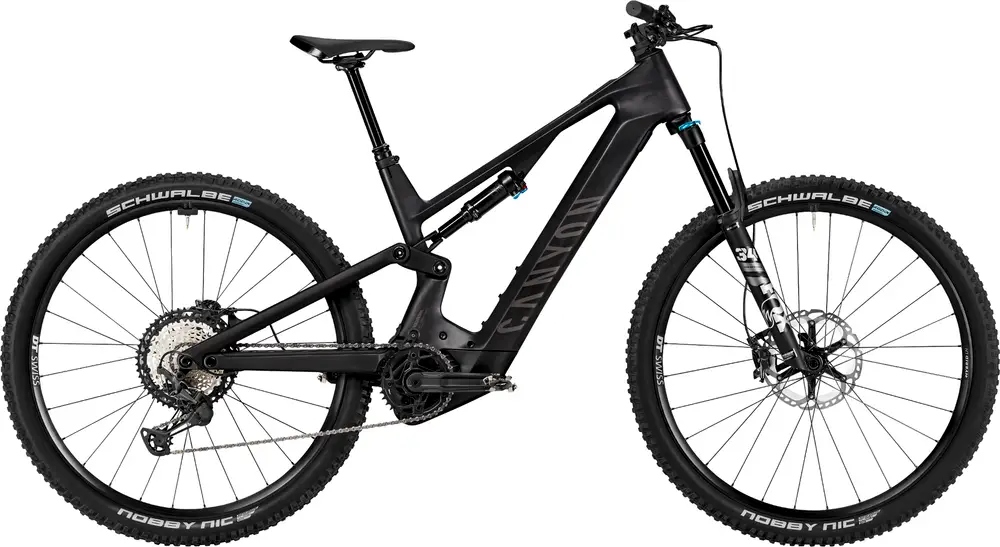

Canyon Neuron:ON CF, Elegant, compliant, light Canyon Neuron:ON carbon frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard:Â Bosch, Press Fit Color:Â Stealth |
|---|---|
| Fork |
FOX 34 Float Performance GRIP, Axle dimension: 15×110 mm, Stanchion Diameter: 34 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Volume Spacer Oe: 1 Travel:Â 140mm Spring Type:Â Air |
| Shock |
FOX DPS Performance, Volume Spacer Oe: 0/6 Travel:Â 140mm |
| Bottom Bracket |
Bosch, press-fit |
| Stem |
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
| Handlebar |
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise |
| Saddle |
Fizik Terra Alpaca X5, Weight: 230 g |
| Seatpost |
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 567 g Type:Â Dropper |
| Pedals |
Iridium VP-536 |
| Grips |
Canyon Lock-On Grips |
Groupset
| Rear Derailleur |
Shimano Deore XT M8100, Cage length: long, Weight: 286 g |
|---|---|
| Crank |
FSA 762 Forged Crank Bosch gen4 |
| Shifters |
Shimano DEORE XT M8100, Weight: 130 g |
| Cassette |
Shimano Deore XT M8100, Number of sprockets: 12, Range: 10-51 12S |
| Chain |
Shimano CN-M6100 |
| Chain Guide |
Canyon Chainguide M091/M129 |
| Brakes |
Shimano DEORE XT M8120 | Shimano Deore XT M8100 Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss HLN350 15×110 30mm Centerlock, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Weight: 1.03 kg | DT Swiss HLN350 12×148, Rotor mount: IS 6-bolt |
|---|---|
| Tires |
Schwalbe Nobby Nic 29×2.4 black skin, Width: 2.4″ |
| Disc Rotors |
Shimano XT STEPS rear rotor, 203mm, Size: 203 mm, Weight: 179 g | Shimano DEORE XT MT800, Size: 203 mm, Weight: 100 g |
Electric Components
| Motor |
Bosch Performance Line CX |
|---|---|
| Battery |
Bosch PowerTube 750Wh |
| Charger |
Bosch 4A |
