Build
| Frame |

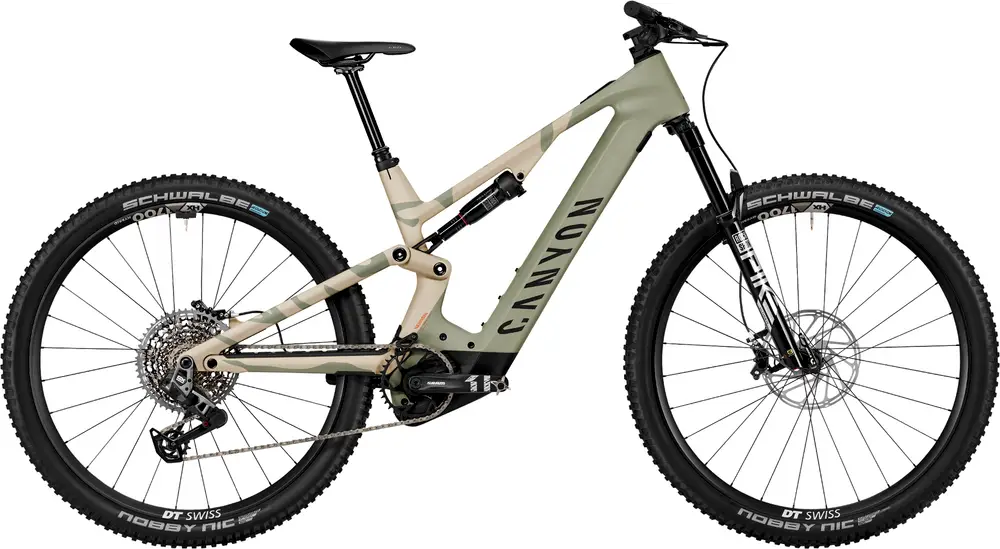

Canyon Neuron:ON, Elegant, compliant, light Canyon Neuron:ON carbon frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard:Â BSA, 73mm, Threaded Hanger Standard:Â UDH Color:Â Home Trail Safari |
|---|---|
| Fork |
Rockshox Pike Ultimate, Travel: 140 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm, Weight: 2.34 kg Travel:Â 140mm Spring Type:Â Air |
| Shock |
RockShox Deluxe Select R, Weight: 375 g Travel:Â 140mm |
| Bottom Bracket |
BSA, 73mm, threaded |
| Stem |
Canyon:ON ST0031, Canyon E-MTB stem., Length: 45 mm, Fork steer tube diameter: 1 1/8″, Clamping diameter: 35,0 mm |
| Handlebar |
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise |
| Saddle |
Fizik Terra Alpaca X5, Weight: 230 g |
| Seatpost |
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 567 g Type:Â Dropper |
| Pedals |
Iridium VP-536 |
| Grips |
Canyon Lock-On Grips |
Groupset
| Rear Derailleur |
SRAM GX Eagle AXS Transmission, Weight: 462 g |
|---|---|
| Crank |
SRAM X1 |
| Shifters |
SRAM AXS Pod, Weight: 67 g |
| Cassette |
SRAM XS-1275 Eagle Transmission, Number of sprockets: 12, Range: 10-52 |
| Chain |
SRAM GX Eagle Transmission |
| Chain Guide |
Canyon Chainguide M091/M129 |
| Brakes |
SRAM Code RSC Type:Â Hydraulic Disc |
Wheels
| Rims |
DT SWISS HX1700, Rotor mount: IS 6-bolt, Weight: 1.13 kg | DT Swiss HX1700, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Rim height: 21 mm, Hub Technology: Spline, Inner width: 30 mm, Rim material: Aluminium, Weight: 1.00 kg |
|---|---|
| Tires |
Schwalbe Nobby Nic 29×2.4 black skin, Width: 2.4″ |
| Disc Rotors |
SRAM Centerline, Size: 203 mm, Weight: 190 g |
Electric Components
| Motor |
Bosch Performance Line CX |
|---|---|
| Battery |
SRAM Powerpack | Bosch PowerTube 750Wh |
| Charger |
Bosch 4A |
