Build
| Frame |

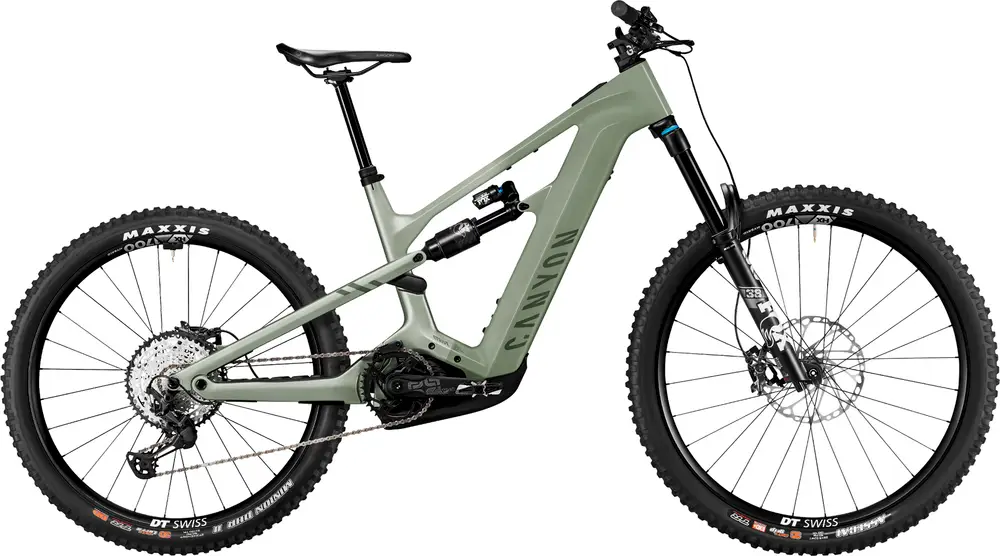

Canyon Strive:ON, Carbon e-enduro frame engineered to compete at the highest level of pro racing, meeting our rigorous 4e testing standards. With discreetly integrated battery and motor., Axle dimension: 12×148 mm, Material: Carbon (CF) BB Standard:Â Bosch, Press Fit Color:Â Liquid Forest |
|---|---|
| Fork |
FOX 38 Performance Elite Grip2, Axle dimension: 15×110 mm, Stanchion Diameter: 36 mm, Travel: 170 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Offset: 44 mm Travel:Â 170mm Spring Type:Â Air |
| Shock |
FOX X2 Performance Travel:Â 160mm |
| Bottom Bracket |
Bosch, press-fit |
| Stem |
Canyon G5, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world’s toughest trails., Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm, Material: Aluminium (AL) |
| Handlebar |
Canyon G5, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability., Clamping diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm |
| Saddle |
ERGON SM10 EMTB, Weight: 300 g |
| Seatpost |
Canyon G5, Clamp diameter: 30,9 mm, Material: Aluminium (AL) Type:Â Dropper |
| Pedals |
Iridium VP-536 |
| Grips |
Canyon G5 |
Groupset
| Rear Derailleur |
Shimano Deore XT M8100, Cage length: long, Weight: 286 g |
|---|---|
| Crank |
e*thirteen E-Spec Plus BOSCH |
| Shifters |
Shimano DEORE XT M8100, Weight: 130 g |
| Cassette |
Shimano SLX M7100, Number of sprockets: 12, Range: 10-51 |
| Chain |
Shimano CN-M6100 |
| Chain Guide |
Canyon GP0437-01 Chainguide |
| Brakes |
Shimano DEORE XT M8120 Type:Â Hydraulic Disc |
Wheels
| Rims |
DT Swiss HX1700, Axle dimension: 15×110 mm, Rotor mount: IS 6-bolt, Rim height: 21 mm, Hub Technology: Spline, Inner width: 30 mm, Rim material: Aluminium, Weight: 1.00 kg | DT Swiss HX1700 12×148, Axle dimension: 12×148 mm, Rotor mount: IS 6-bolt, Rim height: 21 mm, Free hub: Shimano, Hub Technology: Spline, Inner width: 30 mm, Rim material: Aluminium, Weight: 1.09 kg |
|---|---|
| Tires |
Maxxis Minion DHR II 3C MaxxTerra, Width: 2.4″, Weight: 900 g | Maxxis Assegai 3C MaxxGrip, Width: 2,5″, Weight: 1.16 kg |
| Disc Rotors |
Shimano SM-RT66, Size: 220 mm, Weight: 230 g | Shimano RT66, Size: 203 mm, Weight: 180 g |
Electric Components
| Motor |
Bosch Performance Line CX |
|---|---|
| Battery |
Depending on your selected configuration. |
| Charger |
Bosch 4A |
