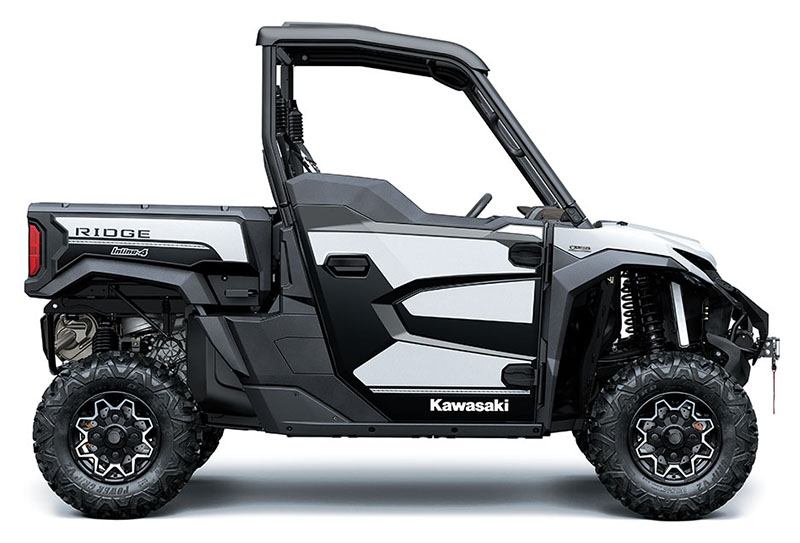

Kawasaki RIDGE Ranch Edition 2024 Specifications

ManufacturerKawasaki
Model Year2024
ModelRIDGE Ranch Edition
Model CodeKWF1000CRFNN
Stock Number00739
ColorMetallic Stardust White
Front BrakesDual hydraulic 249 mm discs with two-piston calipers
Rear BrakesDual hydraulic 249 mm discs with single-piston calipers
Engine BrakingYes
Wheels14 in. aluminum
Front / Rear TiresDuro 27 x 9-11 (Front) / Duro 27 x 11-14 (Rear)
Overall Length126.4 in.
Overall Height81.9 in.
Overall Width64.0 in.
Ground Clearance13.6 in. (max preload)
Wheelbase90.7 in.
Turning Radius15.0 ft.
Curb Weight1,909.5 lb. (with fluids, fuel, tool kit)
TransmissionCVT with High/Low/Neutral/Reverse
Final DriveSelectable 4WD with locking rear differential, shaft
Alternator Output85A (max)
InstrumentationFull-color TFT with Smartphone Connectivity (RIDEOLOGY THE APP Powersports),
Digital speedometer, Tachometer, Fuel Gauge, Odometer, Tripmeters, Total Time, Trip Time,
Average Speed, Gear Indicator, Driving Mode, Power Mode, Clock, Water Temp,
Battery Voltage, Oil Change Reminder, Bluetooth, ECO Indicator, Maintenance Reminder,
High Beam, Neutral, Reverse, Warning Lights (Battery, EPS, CVT, Seatbelt, Parking, Oil Pressure, Water Temp)
LightingAll-LED with floor lighting, accent lights
Advanced ElectronicsPower Modes (Work/Normal/Sport)
Economical Riding Indicator
Engine4-stroke, DOHC, 4-valve
CylindersIn-line four
CoolingLiquid
Displacement999 cc
Bore x Stroke2.9 x 2.3 in. (73.4 x 59.0 mm)
Compression Ratio10.6:1
Horsepower92 hp @ 8,500 rpm (ISO 4106 standard)
Torque65.8 lb-ft @ 5,500 rpm
Fuel SystemEFI
IgnitionTCBI with digital advance
StartingElectric
Fuel Capacity12.9 gal.
FrameLadder type, tubular steel
Front SuspensionLong-travel, double wishbone
Travel: 12.7 in.
Rear SuspensionLong-travel, double wishbone
Travel: 10.1 in.
SteeringRack-and-pinion with Electric Power Steering (EPS),
Tilting D-shape steering wheel
Seating Capacity3 (bench seats, adjustable driver’s seat)
Cargo Box (L x W x H)37.6 x 49.0 x 12.8 in.
Cargo Capacity1,000 lb.
Payload Capacity1,499 lb.
Towing Capacity2,000 lb.
Included FeaturesWARN VRX 45 powersport winch, RIDGE Ranch Edition 3D emblem, ERGO-FIT system, USB ports,
KQR system compatibility
WarrantyKawasaki STRONG 3-year limited
