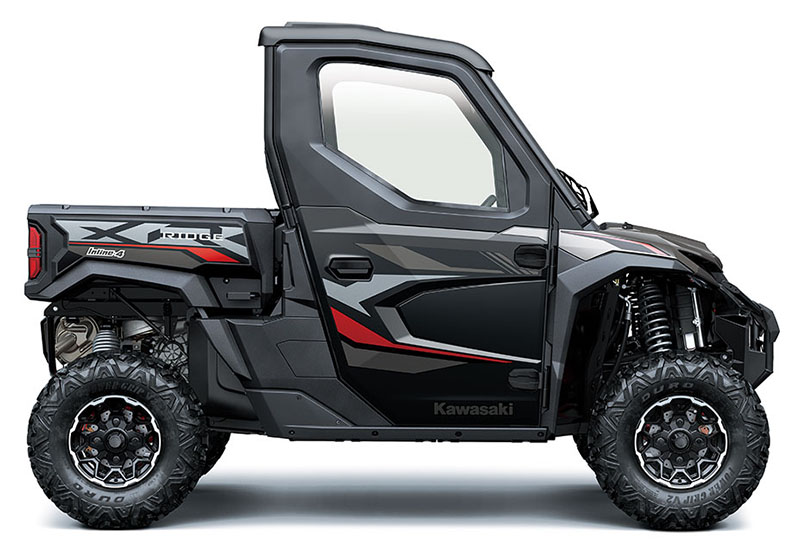

Kawasaki RIDGE XR HVAC 2024 Specifications
| Manufacturer | Kawasaki |
| Model Year | 2024 |
| Model | RIDGE XR HVAC |
| Model Code | KWF1000GRFNL |
| Stock Number | 2024399 |
| Color | Ice Gray |
| Front Brakes | Dual hydraulic 249 mm discs with two-piston calipers |
| Rear Brakes | Dual hydraulic 249 mm discs with single-piston calipers |
| Engine Braking | Yes |
| Wheels | 14 in. aluminum, Steel front wheel wells |
| Front / Rear Tires | Duro 30 x 10-14 |
| Overall Length | 125.4 in. |
| Overall Height | 82.3 in. |
| Overall Width | 64.0 in. |
| Ground Clearance | 13.8 in. (max preload) |
| Wheelbase | 90.7 in. |
| Turning Radius | 15.0 ft. |
| Curb Weight | 2,068.3 lb. (with fluids, fuel, tool kit) |
| Transmission | CVT with High/Low/Neutral/Reverse |
| Final Drive | Selectable 4WD with locking front/rear differential, shaft |
| Alternator Output | 85A (max) |
| Instrumentation | Full-color TFT with Smartphone Connectivity (RIDEOLOGY THE APP Powersports), Digital speedometer, Tachometer, Fuel Gauge, Odometer, Tripmeters, Total Time, Trip Time, Average Speed, Gear Indicator, Driving Mode, Power Mode, Clock, Water Temp, Battery Voltage, Oil Change Reminder, Bluetooth, ECO Indicator, Maintenance Reminder, High Beam, Neutral, Reverse, Warning Lights (Battery, EPS, CVT, Seatbelt, Parking, Oil Pressure, Water Temp) |
| Lighting | All-LED with floor lighting, accent lights |
| Advanced Electronics | Power Modes (Work/Normal/Sport) Economical Riding Indicator |
| Engine | 4-stroke, DOHC, 4-valve |
| Cylinders | In-line four |
| Cooling | Liquid |
| Displacement | 999 cc |
| Bore x Stroke | 2.9 x 2.3 in. (73.4 x 59.0 mm) |
| Compression Ratio | 10.6:1 |
| Horsepower | 116 hp @ 8,500 rpm (ISO 4106 standard) |
| Torque | 73.8 lb-ft @ 8,000 rpm |
| Fuel System | Electronic Fuel Injection (EFI) |
| Ignition | TCBI with digital advance |
| Starting | Electric |
| Fuel Capacity | 12.9 gal. |
| Frame | Ladder type, tubular steel |
| Front Suspension | Long-travel, double wishbone Travel: 12.7 in. |
| Rear Suspension | Long-travel, double wishbone Travel: 10.1 in. |
| Steering | Rack-and-pinion with Electric Power Steering (EPS), Tilting D-shape steering wheel |
| Seating Capacity | 2 (bucket seats, adjustable driver/passenger) |
| Cargo Box (L x W x H) | 37.6 x 49.0 x 12.8 in. |
| Cargo Capacity | 600 lb. |
| Payload Capacity | 1,100 lb. |
| Towing Capacity | 2,000 lb. |
| Included Features | Full Cab with HVAC, ERGO-FIT system, USB ports, KQR system compatibility, Storage space (behind seat) |
| Safety Features | Plastic roof and half doors |
| Warranty | Kawasaki STRONG 3-year limited |
