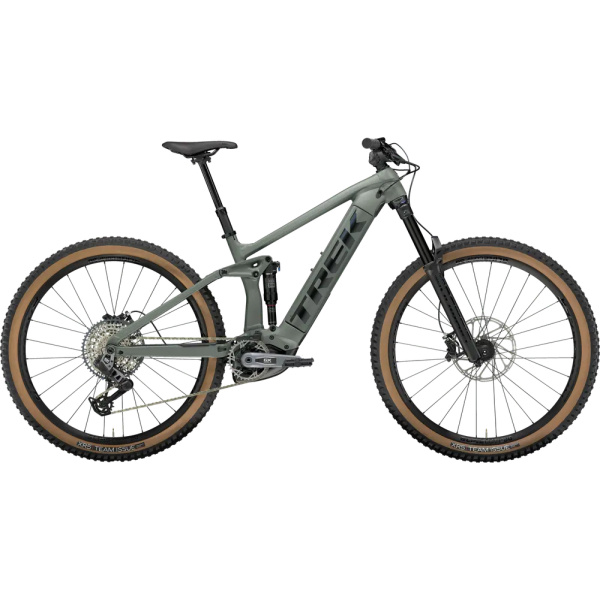

2024 Trek Rail 8 GX AXS T-Type Gen 3

Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel

RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel

RockShox Deluxe Select+ RT, 230mm x 57.5mm

Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom

Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length

Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width

Bontrager Verse P3, chromoly rails

Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: M, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length; Size: L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length

VP-536 nylon platform

Bontrager XR Trail Elite, nylon lock-on

SRAM GX Eagle AXS, T-Type

SRAM GX, 160mm length

SRAM AXS POD

SRAM Eagle XS-1275, T-Type,10-52, 12 speed

SRAM GX Eagle, T-Type, 12 speed

SRAM DB 8 4-piston hydraulic disc

Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29”, Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29”

Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29×2.50”

Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round edge, 220mm; Size: S, M, L, XL, SRAM CenterLine, 6-bolt, round edge, 200mm

Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

Bosch PowerTube 625Wh, smart system

Bosch LED remote, smart system

Bosch standard 4A, 110V, smart system
