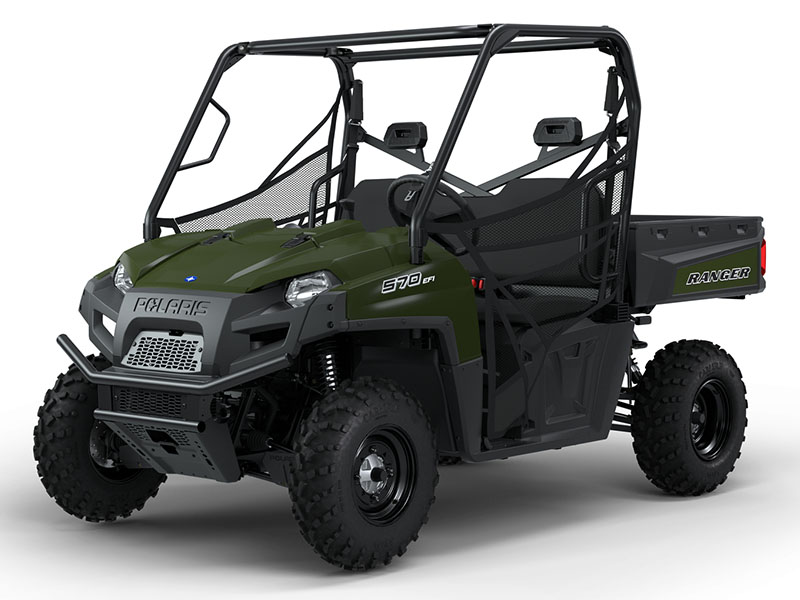

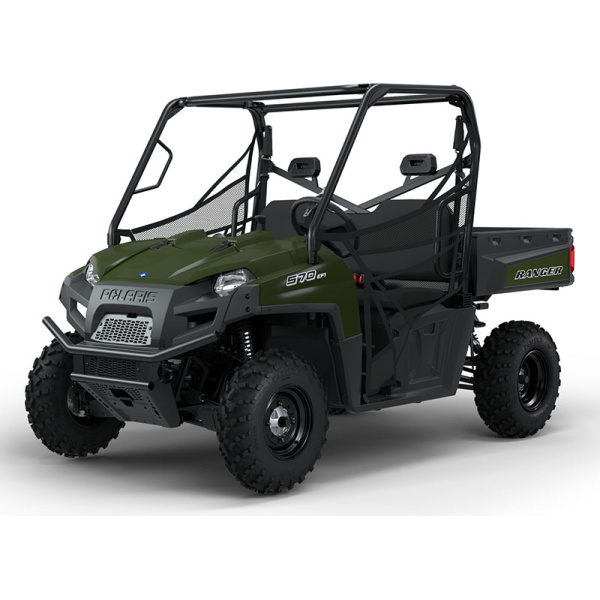

Polaris Ranger 570 Full-Size 2025 Specifications
| Manufacturer | Polaris |
| Model Year | 2025 |
| Model | Ranger 570 Full-Size |
| Model Code | R25CCA57A1 |
| Stock Number | 2025529 |
| Color | Sage Green |
| Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
| Parking Brake | Park In-Transmission |
| Wheels | Stamped Steel |
| Front Tires | 25 x 8-12; Carlisle 489 |
| Rear Tires | 25 x 10-12; Carlisle 489 |
| Overall Length | 114 in. (290 cm) |
| Overall Height | 74 in. (188 cm) |
| Overall Width | 60 in. (152 cm) |
| Dry Weight | 1,070.85 lb. (486 kg) |
| GVW | 2,642 lb. |
| Ground Clearance | 10.5 in. (26.7 cm) |
| Wheelbase | 79 in. (200.7 cm) |
| Turning Radius | 16 ft. (487.7 cm) |
| Transmission | Automatic PVT H / L / N / R / P |
| Drive System | On-Demand True AWD / 2WD / VersaTrac Turf Mode |
| Final Drive | Shaft |
| Instrumentation | Single Analog Dial with 2 in. LCD Rider Information Center Functions: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Codes, Seatbelt Reminder Light, DC Outlet |
| Lighting | 50W Headlight, LED Taillight |
| Engine | 4-Stroke, DOHC |
| Cooling | Liquid |
| Cylinders | Single |
| Horsepower | 44 hp |
| Displacement | 567 cc |
| Fuel System | Electronic Fuel Injection |
| Fuel Capacity | 9 gal. (34.1 l) |
| Front Suspension | MacPherson Strut – Travel: 9 in. (22.9 cm) |
| Rear Suspension | Dual A-Arm, IRS – Travel: 10 in. (25.4 cm) |
| Steering | Tilt |
| Seating | 3 Person Capacity |
| Cargo Box Dimensions (L x W x H) | 36.5 x 54 x 11.5 in. (93 x 137 x 29 cm) |
| Cargo Box Capacity | 800 lb. (363 kg) |
| Payload Capacity | 1,500 lb. (680.4 kg) |
| Towing Capacity | 1,500 lb. (680 kg) |
| Hitch | Standard 2 in. (5 cm) Receiver |
| Cargo Box System | Lock & Ride |
