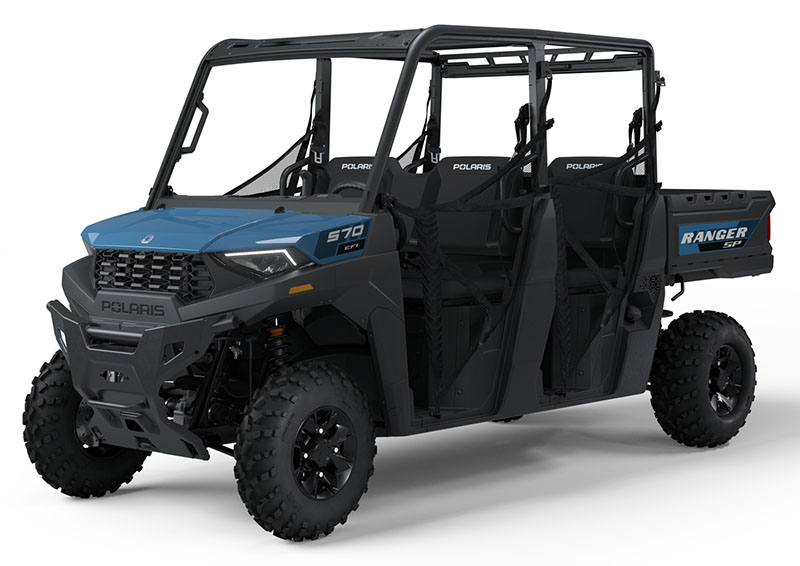

Polaris Ranger Crew SP 570 Premium 2025 Specifications
| Manufacturer | Polaris |
| Model Year | 2025 |
| Model | Ranger Crew SP 570 Premium |
| Model Code | R25M4E57B5 |
| Stock Number | 2025279 |
| Color | Zenith Blue |
| Brakes | 4-Wheel Hydraulic Disc |
| Parking Brake | Park In-Transmission |
| Wheels | 12 in. Black Aluminum |
| Front Tires | 25 x 8-12; Carlisle 489 |
| Rear Tires | 25 x 10-12; Carlisle 489 |
| Ply Rating | 4 Ply Rated |
| Overall Length | 144 in. (365.8 cm) |
| Overall Height | 74 in. (188 cm) |
| Overall Width | 56 in. (142.2 cm) |
| Dry Weight | 1,550 lb. (703 kg) |
| GVW | 2,700 lb. (1,225 kg) |
| Ground Clearance | 11 in. (27.9 cm) |
| Wheelbase | 105 in. (266.7 cm) |
| Turning Radius | 16.3 ft. (497.8 cm) |
| Transmission | Automatic PVT H / L / N / R / P |
| Drive System | On-Demand True AWD / 2WD / VersaTrac Turf Mode |
| Final Drive | Shaft |
| Battery | 575 CCA |
| Electrical System | Polaris Pulse Electrical System (3 Position) |
| Charger Type | 660W Charging System (Stator) |
| Instrumentation | 4 in. LCD Rider Information Center with Selectable Blue/Red Backlighting Features: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Codes, Seat Belt Reminder, DC Outlet |
| Lighting | LED Headlights (High/Low Beam), LED Taillamps |
| Engine | 4-Stroke DOHC |
| Cooling | Liquid |
| Cylinders | Single |
| Horsepower | 44 hp |
| Displacement | 567 cc |
| Fuel System | Electronic Fuel Injection |
| Fuel Capacity | 9.5 gal. (35.9 l) |
| Front Suspension | MacPherson Strut – Travel: 9 in. (22.9 cm) |
| Rear Suspension | Dual A-Arm, IRS – Travel: 10 in. (25.4 cm) |
| Steering | Electronic Power Steering (Tilt) |
| Seating | 4-Person Capacity with Premium Cut and Sew Seats |
| Includes | Gas Assist Dump Box, Single Latch Tailgate, Rear-Mounted Fiberglass Insulated Exhaust, In-dash SAE Charge Port, 48.4 gal. Onboard Storage, Sealed Bushings & Bearings, Full Skid Plate, Premium Panels, USB Port, Rear Wheel Liners |
| Cargo Box Dimensions (L x W x H) | 33.3 x 48.7 x 12.3 in. (84.6 x 123.7 x 31.2 cm) |
| Cargo Box Capacity | 500 lb. (226.8 kg) |
| Payload Capacity | 1,100 lb. (499 kg) |
| Towing Capacity | 1,500 lb. (680 kg) |
| Hitch | Standard 2 in. (5 cm) Receiver |
| Cargo Box System | Lock & Ride |
| Safety Features | Steel Front Bumper with Integrated Winch & Plow Mounts, Front Stabilizer Bar |
