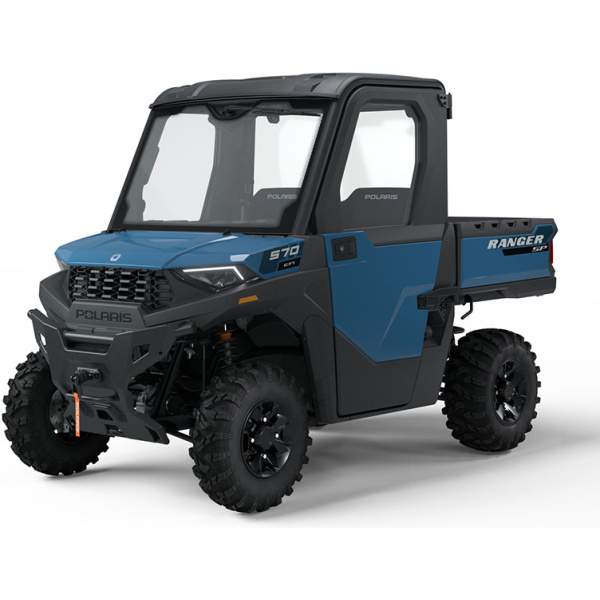

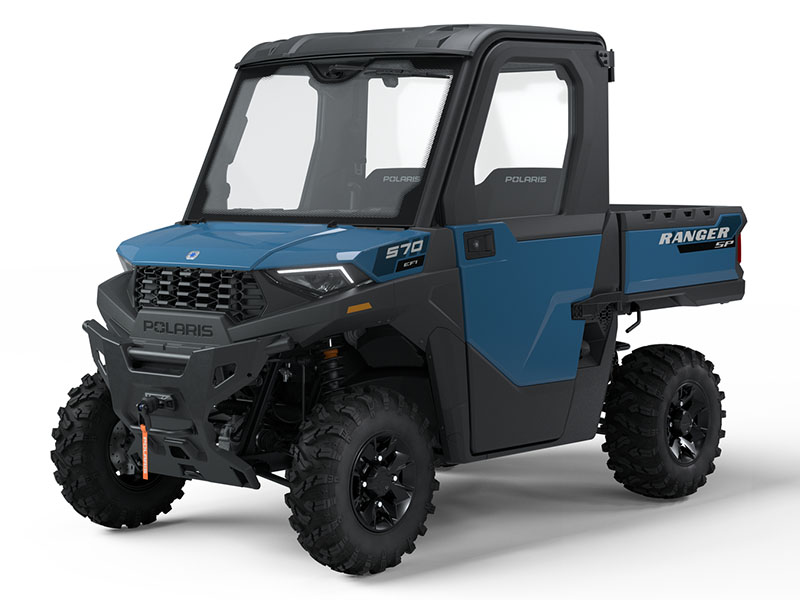

Polaris Ranger SP 570 NorthStar Edition 2025 Specifications
| Manufacturer | Polaris |
| Model Year | 2025 |
| Model | Ranger SP 570 NorthStar Edition |
| Model Code | R25MAU57B5 |
| Stock Number | 2025518 |
| Color | Zenith Blue |
| Brakes | 4-Wheel Hydraulic Disc |
| Parking Brake | Park In-Transmission |
| Wheels | 12 in. Black Aluminum |
| Front Tires | 25 x 8-12; Pro Armor X Terrain |
| Rear Tires | 25 x 10-12; Pro Armor X Terrain |
| Overall Length | 108 in. (274.3 cm) |
| Overall Height | 74 in. (188 cm) |
| Water Fording Capability | Equal to the Floorboards |
| Overall Width | 58 in. (147.3 cm) |
| Dry Weight | 1,502 lb. (681 kg) |
| GVW | 2,255 lb. (1,023 kg) |
| Ground Clearance | 10.5 in. (26.7 cm) |
| Wheelbase | 73 in. (185.4 cm) |
| Turning Radius | 12.6 ft. (386 cm) |
| Transmission | Automatic PVT H / L / N / R / P |
| Drive System | On-Demand True AWD / 2WD / VersaTrac Turf Mode |
| Final Drive | Shaft |
| Battery | 575 CCA |
| Electrical System | Polaris Pulse Electrical System (3 position) |
| Charger Type | 660W Charging System (Stator) |
| Instrumentation | 4 in. LCD Rider Information Center with Selectable Blue/Red Backlighting Features: Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Codes, Seat Belt Reminder, DC Outlet |
| Lighting | LED Headlights (High/Low Beam), LED Taillamps |
| Engine | 4-Stroke DOHC |
| Cooling | Liquid |
| Cylinders | Single |
| Horsepower | 44 hp |
| Displacement | 567 cc |
| Fuel System | Electronic Fuel Injection |
| Fuel Capacity | 9.5 gal. (35.9 l) |
| Front Suspension | MacPherson Strut – Travel: 9 in. (22.9 cm) |
| Rear Suspension | Dual A-Arm, IRS – Travel: 10 in. (25.4 cm) |
| Steering | Electronic Power Steering (Tilt) |
| Seating | 2-Person Capacity with Premium Cut and Sew Seats |
| Includes | Gas Assist Dump Box, Single Latch Tailgate, Fiberglass Insulated Rear Exhaust System, In-dash SAE Charge Port, 20.25 gal. Onboard Storage, Sealed Suspension Bushings & Bearings, Full Skid Plate, Premium Panels, Integrated Door Storage, Factory Installed Heater with Defrost and Vents, USB Port, Rear Wheel Liners, NorthStar Badging |
| Cargo Box Dimensions (L x W x H) | 33.3 x 48.7 x 12.3 in. (84.6 x 123.7 x 31.2 cm) |
| Cargo Box Capacity | 500 lb. (226.8 kg) |
| Payload Capacity | 700 lb. (318 kg) |
| Towing Capacity | 1,500 lb. (680 kg) |
| Hitch | Standard 2 in. (5 cm) Receiver |
| Winch | Polaris HD 3,500 lb. Synthetic Rope Winch with Autostop & In-Dash Switch |
| Cargo Box System | Lock & Ride |
| Safety Features | Full Steel Front Bumper with Winch & Plow Mounts, Premium Pro-Shield Cab, Doors with Crank Windows, Fixed Glass Windshield with Wiper and Washer, Rear Glass Panel, Front Stabilizer Bar |
