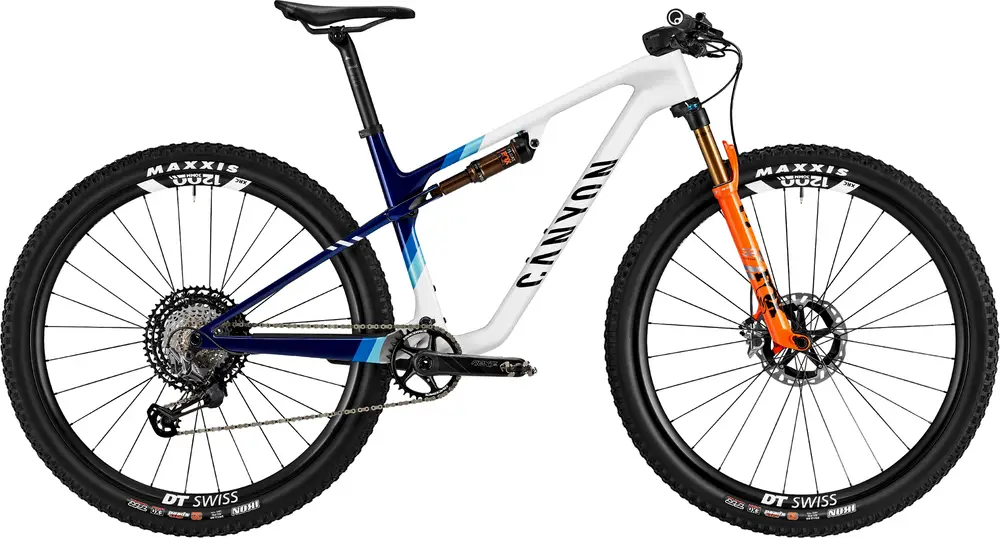

Canyon Lux World Cup CFR Team 2024 Overview
Build
| Frame |
Canyon Lux WC CFR, One of the lightest full-suspension frames in the world. As raced by Canyon’s pro riders, including Mathieu van der Poel., Axle dimension: 12×148 mm, Material: Carbon (CFR) BB Standard:?BB86/BB92, Press Fit Colors:?Team Alpecin-Fenix; Team Alpecin Deceuninck |
|---|---|
| Fork |
FOX 32 Step-Cast Factory Remote, Axle dimension: 15×110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8″ – 1,5″, Weight: 3.11 lbs Travel:?100mm Spring Type:?Air |
| Shock |
FOX Float DPS Factory Remote, Weight: 0.47 lbs Travel:?100mm |
| Bottom Bracket |
Ceramic Speed BB92 30 mm, Weight: 0.13 lbs |
| Saddle |
Ergon SR10 Pro Carbon, Gender: Unisex, Weight: 0.43 lbs |
| Seatpost |
Canyon SP0061 Carbon Seatpost, Clamp diameter: 30,9 mm, Material: Carbon (CF), Weight: 0.39 lbs Type:?Rigid |
| Pedals |
None included |
| Grips |
Ergon GA20 |
Groupset
| Rear Derailleur |
Shimano XTR, 12-speed, Cage length: long, Weight: 0.51 lbs |
|---|---|
| Crank |
Race Face Next SL, Number of chainrings: 1 |
| Shifters |
Shimano XTR, 12-speed, Weight: 0.29 lbs |
| Cassette |
Shimano XTR CS-M9101 12s 10-51, Number of sprockets: 12, Range: 10-51 12S |
| Chain |
Shimano CN-M9100 12s |
| Brakes |
Shimano XTR M9100 | Shimano XTR M9110 Type:?Hydraulic Disc |
Wheels
| Rims |
DT Swiss XRC 1200 Spline, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 1.76 lbs | DT Swiss XRC 1200 Spline, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 1.50 lbs |
|---|---|
| Tires |
Maxxis Ikon Exo 2.35″, Width: 2.35″, Weight: 1.63 lbs |
| Disc Rotors |
Shimano RT-MT900, 180mm, Size: 180 mm, Weight: 0.32 lbs | Shimano RT-MT900, Size: 160 mm, Weight: 0.27 lbs |
