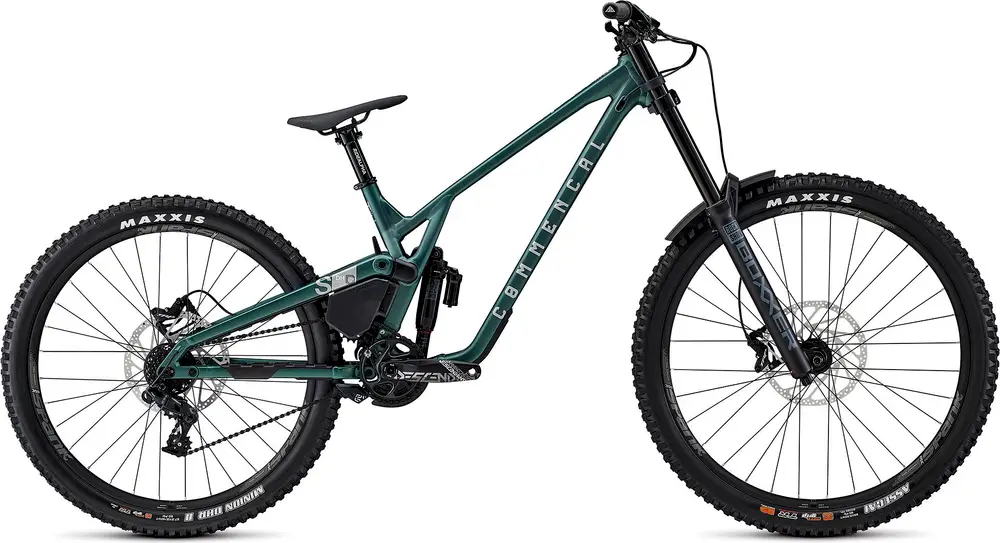

Commencal SUPREME DH V5 RIDE ROCKSHOX 2024 Overview
Build
| Frame |
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL, 29”, Alloy 6066, triple butted tubes, T4, T6 BB Standard:?BB86/BB92, 107mm, Press Fit Color:?Metallic Green, Matte Finish |
|---|---|
| Fork |
ROCKSHOX BOXXER, 200 mm, 29, Charger 3 RC damper, DebonAir+, LSC, rebound, Boost (20 x 110 mm), 52 mm offset, 0 Token Travel:?200mm Spring Type:?Air |
| Shock |
ROCKSHOX Super Deluxe Select R, 250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 3 Tokens pos. Travel:?220mm |
| Bottom Bracket |
Press Fit BB 107 |
| Headset |
ACROS ZS56 / ZS56, Alloy cups, sealed bearings |
| Stem |
RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm |
| Handlebar |
RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Saddle |
FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails |
| Seatpost |
RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075 Type:?Rigid |
| Grips |
ODI Elite Motion, Soft pro compound, single clamp, black |
Groupset
| Rear Derailleur |
SRAM GX DH, 7 sp |
|---|---|
| Crank |
TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t |
| Shifters |
SRAM GX DH, 7 sp |
| Cassette |
SRAM GX DH, 7 sp, 11-25t |
| Chain |
KMC X11EL, Black |
| Chain Guide |
E13 LG1 + Bottom Guide, 32-34t |
| Brakes |
TRP DH-R Evo, 4 pistons, resin pads, Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm widthv Type:?Hydraulic Disc |
Wheels
| Rims |
SPANK 359, Rear: 27.5”, 32h, 30 mm inner width – Front: 29”, 32h, 30 mm inner width |
|---|---|
| Front Hub |
Rear: FORMULA DHG-157 – Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide – Front: 32h, sealed bearings, 20 x 110 mm Boost, black |
| Rear Hub |
Rear: FORMULA DHG-157 – Front: FORMULA DHL-93, Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide – Front: 32h, sealed bearings, 20 x 110 mm Boost, black |
| Tires |
Rear: MAXXIS DHR II – Front: MAXXIS Assegai, Rear: 27.5” x 2.4”, WT, 3C MaxxGrip, DH casing, Tubeless Ready – Front: 29″ x 2.5″ WT, 3C MaxxGrip, Double Down, Tubeless Ready |
