2022 Giant

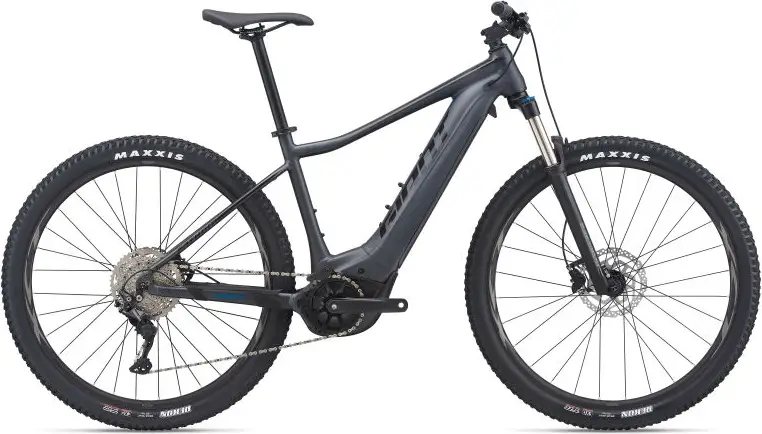

Fathom E+ 2 A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Build
| Frame |
ALUXX Aluminum, Overdrive 1½ – 1â…›” Head Tube, 141mm Boost QR, ISS, Giant EnergyPak Plus Range Extender Compatible, Integrated KS18 Kickstand Mount Color: Gunmetal Back |
|---|---|
| Fork |
SR Suntour XCR 32 Coil LO Boost 29 120mm travel, Tapered 1½ – 1â…›” steerer, lockout |
| Rear Shock |
– |
| Bottom Bracket |
N/A |
| Stem |
Giant Contact |
| Handlebar |
Giant Connect TR Riser 31.8x780mm |
| Saddle |
Giant Sport |
| Seatpost |
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Pedals |
Aluminum Platform |
| Grips |
Giant Sole-O Grip |
Groupset
| Rear Derailleur |
Shimano Deore, 10-speed, Shadow+ |
|---|---|
| Front Derailleur |
– |
| Crank |
FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T |
| Shifters |
Shimano Deore 1×10 speed |
| Cassette |
Shimano CS-M4100-10 11-46T 10-speed |
| Chain |
KMC e.10 Sport, e-bike optimised |
| Brakes |
Tektro HD-M280, hydraulic disc, 180mm |
| Brake Levers |
Tektro HD-M280 |
Wheels
| Rims |
Giant XCT 29 Tubeless Ready 25mm e-bike optimised |
|---|---|
| Spokes |
Stainless steel |
| Front Hub |
Shimano HB-MT401-B front, Shimano FH-MT200-B rear |
| Rear Hub |
Shimano HB-MT401-B front, Shimano FH-MT200-B rear |
| Tires |
Maxxis Rekon 29×2.4″, EXO, 60 TPI |
Electric Components
| Motor |
SyncDrive Sport, 70Nm Powered by Yamaha |
|---|---|
| Battery |
EnergyPak Smart 500, 36V Integrated Lithium-IonEnergyPak Plus range extender compatible |
| Remote |
RideControl Dash, full color LCD screen |
| Charger |
EnergyPak 4A smart charger compact |
