2022 Giant

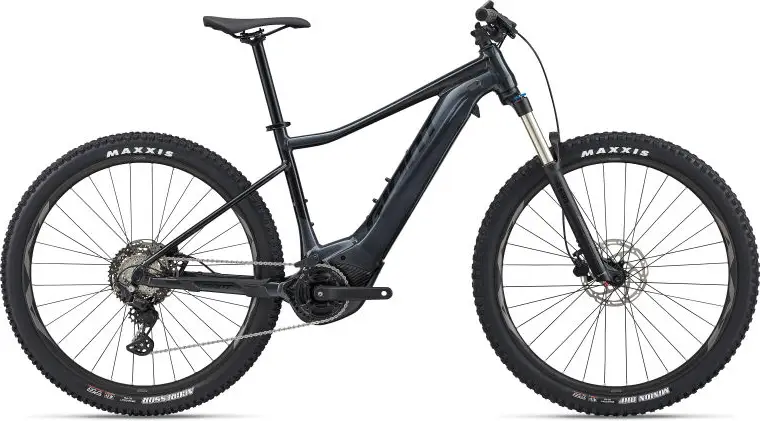

Fathom E+ 2 Pro A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Build
| Frame |
ALUXX Aluminum, Overdrive 1½ – 1â…›” head tube, 148x12mm Thru-Axle, integrated KS18 kickstand mount Color: Gunmetal Black |
|---|---|
| Fork |
SR Suntour XCR 34 Boost Air LOR, 130mm travel, Tapered 1½ – 1â…›” steerer, lockout |
| Rear Shock |
– |
| Bottom Bracket |
– |
| Stem |
Giant Contact |
| Handlebar |
Giant Connect TR Riser 31.8x780mm |
| Saddle |
Giant Sport |
| Seatpost |
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Pedals |
Aluminum Platform |
| Grips |
Giant Tactal Lock-On |
Groupset
| Rear Derailleur |
Shimano Deore, 10-speed, LinkGlide, Shadow+ |
|---|---|
| Front Derailleur |
– |
| Crank |
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set |
| Shifters |
Shimano Deore LinkGlide |
| Cassette |
Shimano Deore LinkGlide CS-M5130-10, 11-43T, 10-speed |
| Chain |
Shimano, CN-LG500, 9/10/11speed for LinkGlide |
| Brakes |
Tektro HD-M275, hydraulic disc, 180mm [F/R] |
| Brake Levers |
Tektro HD-M275 |
Wheels
| Rims |
Giant AM 29″, Tubeless ready, 30mm inner width |
|---|---|
| Spokes |
Stainless steel |
| Front Hub |
Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Rear Hub |
Shimano MT410 Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Tires |
Maxxis Minion DHF 29X2.5″ 60TPI Foldable, TLR EXO [F] Maxxis Aggressor 29X2.5″ 60TPI Foldable TLR EXO [R] |
Electric Components
| Motor |
SyncDrive Pro, 80Nm, powered by Yamaha |
|---|---|
| Battery |
EnergyPak Smart 625Wh EnergyPak Plus range extender compatible |
| Remote |
RideControl Dash, full color LCD screen |
| Charger |
EnergyPak 4A smart charger compact |
