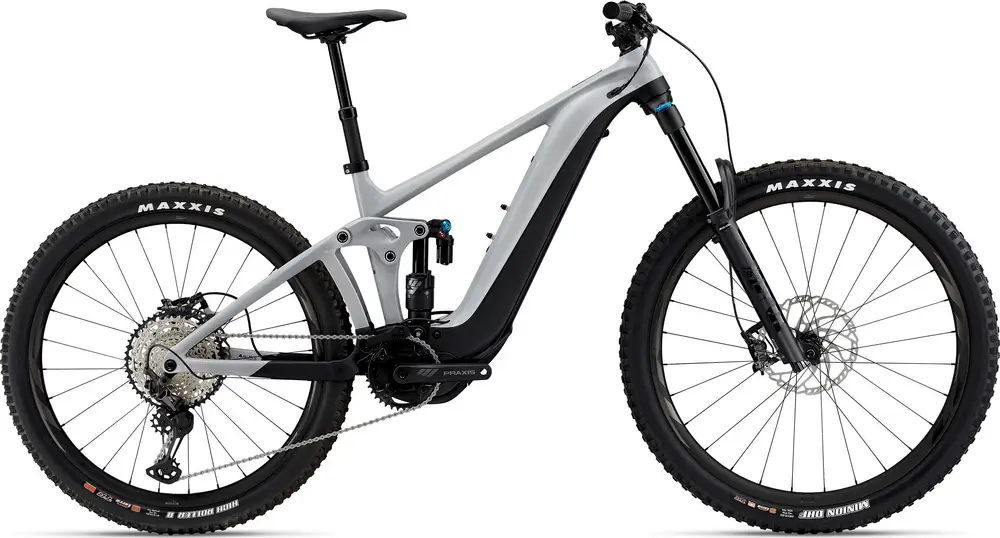

2022 Giant
Reign E+ 1 A 27.5″ aluminum frame full suspension enduro e-bike with high-end components.
Build
| Frame |
ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, ‘Boost’ 148x12mm, UDHTM derailleur hanger Color:Â Good Gray |
|---|---|
| Fork |
Fox 38 Float Performance Elite 29er, 170mm travel, GRIP2 VVC Damper, Boost 110×15 Kabolt floating axle, e-Bike optimized |
| Rear Shock |
Fox Float X2 Performance Elite, EVOL Large Volume sleeve, 2-position lever, 205×62.5mm Trunnion mount, custom tuned |
| Bottom Bracket |
N/A |
| Stem |
Giant Contact SL 35 |
| Handlebar |
Giant Contact Trail, 35x800mm |
| Saddle |
Giant Romero Trail |
| Seatpost |
Giant Contact Switch, dropper, 30.9mm (S:100, M: 125, L:150m XL:170) |
| Pedals |
Flat pedal |
| Grips |
Giant Tactal Pro-E, single lock-on **some bikes may be substituted: Giant Tactal, single lock-on |
Groupset
| Rear Derailleur |
Shimano Deore XT, 12-Speed, Shadow+ |
|---|---|
| Front Derailleur |
MRP 1X HD2 custom co-molded chain guide |
| Crank |
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (S/M:160, L/XL:165) |
| Shifters |
Shimano Deore XT |
| Cassette |
Shimano HG-M7100, 10-51T, 12-speed |
| Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Brakes |
Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 203mm |
| Brake Levers |
Shimano Deore XT BL-M8100, I-spec EV |
Wheels
| Rims |
Giant e-TR1 29″[F] 27.5″[R], Tubeless ready, 30mm inner width |
|---|---|
| Spokes |
Giant e-TR1 |
| Front Hub |
Giant e-TR1 [F] 110×15 [R] 148x12mm Thru-axle |
| Rear Hub |
Giant e-TR1 [F] 110×15 [R] 148x12mm Thru-axle |
| Tires |
Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5×2.5″ foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R] |
Electric Components
| Motor |
SyncDrive Pro, 85Nm, powered by Yamaha |
|---|---|
| Battery |
EnergyPak Smart 625WhEnergyPak Plus range extender compatible (M, L, XL sizes only) |
| Remote |
RideControl GO, frame integrated LED displayANT+ Wireless display compatible |
| Charger |
EnergyPak 6A smart charger |
