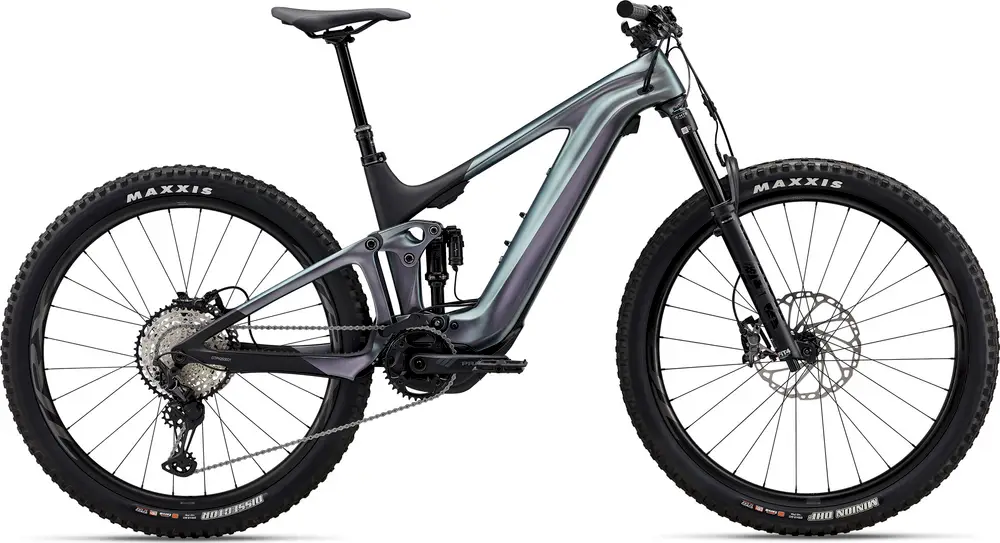

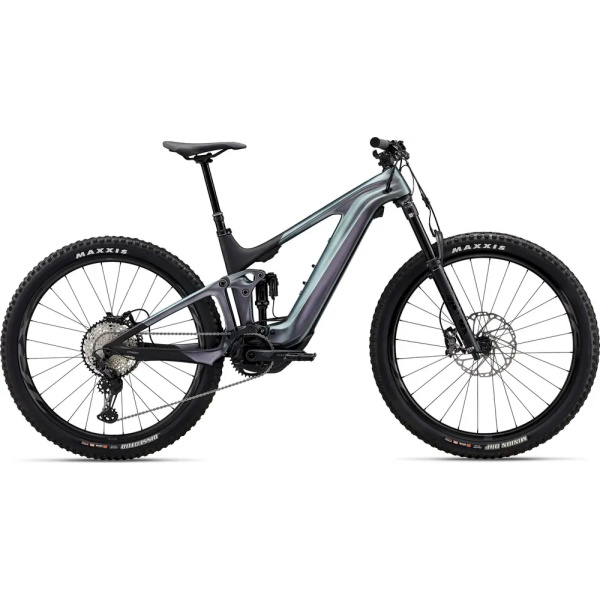

2023 Giant Trance X, Advanced E+ 1 A 29″ carbon frame electronic full suspension trail e-bike with high-end components.
Build
| Frame |
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system Color:Â Airglow |
|---|---|
| Fork |
Fox 36 Live Valve, 150mm travel, 44mm offset, Grip2 damper, Boost 110x15QR, electronic adaptive suspension, e-bike integrated, e-bike integrated |
| Rear Shock |
Fox Float X Live Valve, 185×52.5mm Trunnion mount, electronic suspension, e-bike integrated |
| Bottom Bracket |
N/A |
| Stem |
Giant Contact SL 35 |
| Handlebar |
Giant Contact SL 35 |
| Saddle |
Giant Romero, Neutral |
| Seatpost |
Tranz-X Rad+ travel adjust dropper, dropper |
| Pedals |
Flat pedals |
| Grips |
Giant Tactal Pro-E, single lock-on |
Groupset
| Rear Derailleur |
Shimano Deore XT, 12-speed, Shadow+ |
|---|---|
| Front Derailleur |
MRP HD2 co-moulded chain guide |
| Crank |
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set |
| Shifters |
Shimano Deore XT |
| Cassette |
Shimano CS-M7100, 10-51T, 12-speed |
| Chain |
KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Brakes |
Shimano Deore XT, BR-M8120, 4-piston, hydraulic disc, 220mm |
| Brake Levers |
Shimano Deore XT, I-spec EV |
Wheels
| Rims |
e-TRX Hookless Clincher, 29″, 30mm inner width |
|---|---|
| Front Hub |
e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15 [F], 148 x 12 [R] Thru Axle |
| Rear Hub |
e-TRX 6 Bolt, Shimano Micro-spline, 110 x 15 [F], 148 x 12 [R] Thru Axle |
| Tires |
Maxxis Minion DHF 29×2.6″ foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
Electric Components
| Motor |
SyncDrive Pro, 85Nm, powered by Yamaha |
|---|---|
| Battery |
EnergyPak Smart 800, EnergyPak Plus range extender compatible |
| Remote |
RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
