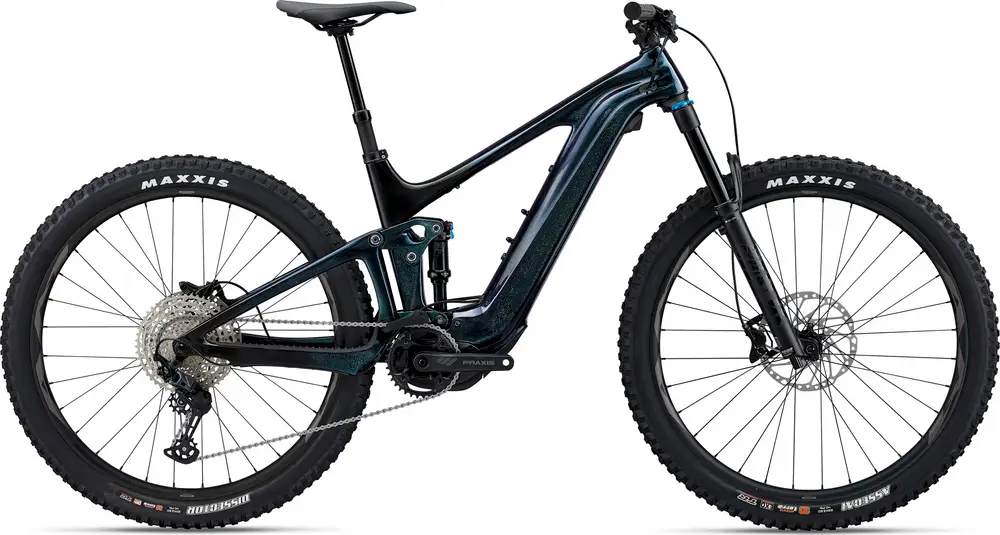

2022 Giant Trance X, Advanced E+ 2 A 29″ carbon frame full suspension trail e-bike with upper mid-range components.
Build
| Frame |
Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system Color:Â Starry Night |
|---|---|
| Fork |
Fox 36 Float Performance, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Boost 110x15QR, e-optimized |
| Rear Shock |
Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185×52.5mm Trunnion mount, custom tuned |
| Bottom Bracket |
– |
| Stem |
Giant Contact SL 35 |
| Handlebar |
Giant Contact 35 Trail, 35x780mm |
| Saddle |
Giant Romero, Neutral |
| Seatpost |
Giant Contact Switch, dropper, 30,9mm (S:125, M:150, L/XL:170) |
| Pedals |
Flatpedal |
| Grips |
Giant Tactal Pro-E, single lock-on |
Groupset
| Rear Derailleur |
Shimano Deore SLX, 12-speed, Shadow+ |
|---|---|
| Front Derailleur |
MRP HD2 co-moulded chain guide |
| Crank |
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor = 168, XS/S:160, M/L:165, XL:170) |
| Shifters |
Shimano Deore SLX |
| Cassette |
Shimano HG-M6100, 10-51T, 12-speed |
| Chain |
KMC e.12 Sport, NP/NP, e-bike optimized |
| Brakes |
Shimano Deore, BR-M420, 4-piston, hydraulic disc, 203mm |
| Brake Levers |
Shimano Deore, BL-MT410 |
Wheels
| Rims |
Giant AM 29″, Tubeless ready, 30mm inner width |
|---|---|
| Spokes |
Sapim E-Lite [r] Race [f] |
| Front Hub |
Shimano MT410, Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Rear Hub |
Shimano MT410, Boost, Center-Lock, [F] 110×15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Tires |
Maxxis Assegai 29×2.6″ foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+, 120tpi 3C [R] |
Electric Components
| Motor |
SyncDrive Pro, 85Nm, powered by Yamaha |
|---|---|
| Battery |
EnergyPak Smart 625 EnergyPak Plus, 250Wh range extender compatible |
| Remote |
RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
| Charger |
EnergyPak Smart 6A charger |
