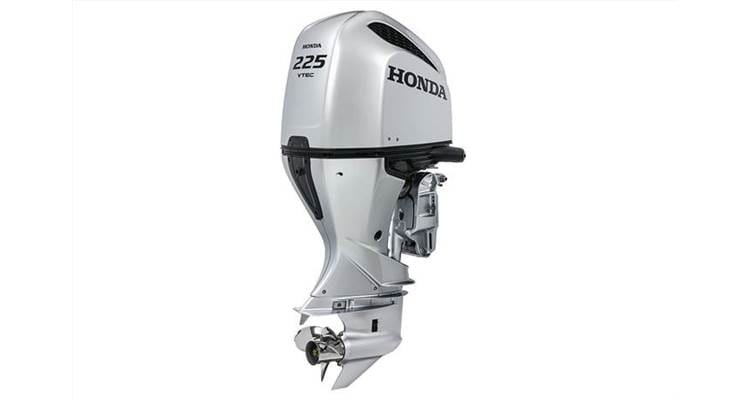

Honda BF225DXCRC Outboard Motor Specifications
| Specification | Details |
|---|---|
| Model | Honda BF225DXCRC |
| Engine Type | 4-Stroke V6, DOHC, 60-degree V-angle |
| Displacement | 3.5L (212.0 cu.in) |
| Bore x Stroke | 89mm x 93mm (3.50 in x 3.66 in) |
| Max Output | 225 HP @ 5,750 RPM |
| Recommended RPM Range | 5,000?6,000 RPM |
| Fuel System | Programmed Fuel Injection (PGM-FI) |
| Ignition System | Digital CDI |
| Starting System | Electric Start with optional manual backup |
| Alternator Output | 44 Amp (588W) |
| Fuel Tank Capacity | Fuel-efficient with recommended tank sizes |
| Trim and Tilt | Power Trim & Tilt |
| Steering | Hydraulic Power Steering |
| Exhaust | Through propeller |
| Cooling System | Water-cooled with thermostat |
| Weight (Approx.) | 249 kg (548 lbs) (with standard rigging) |
| Dimensions (L x W x H) | 1,142mm x 704mm x 1,340mm (44.9 x 27.7 x 52.8 in) |
| Fuel Type | Unleaded Gasoline |
| Engine Oil Capacity | 7.6 L (8.0 US qt) |
| Propeller Shaft Length | 25-inch (L) |
| Tilt Limit | Yes |
