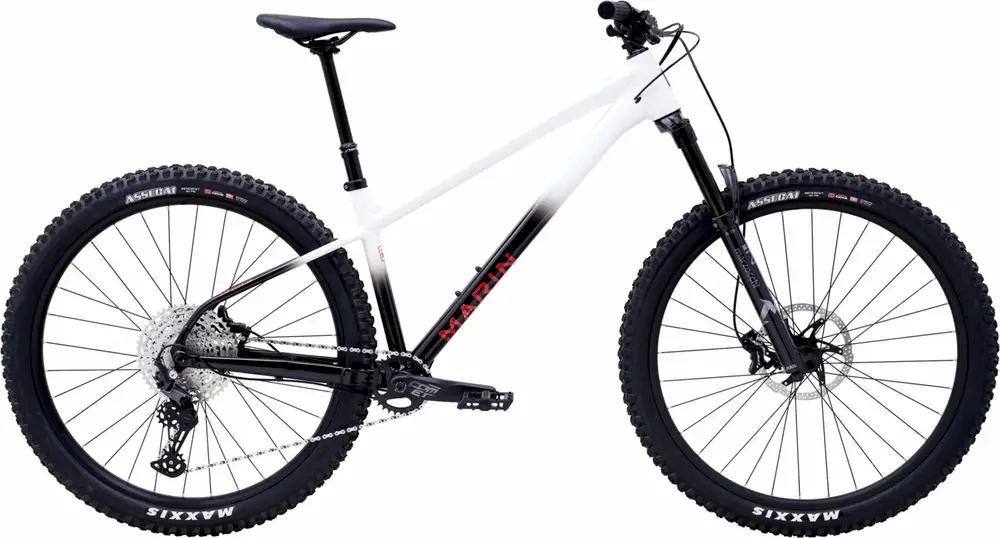

Marin San Quentin 29″ 3 Bike 2025 Overview
Build
| Frame |
Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB BB Standard:?BSA, 73mm, Threaded Color:?Gloss White / Black/red |
|---|---|
| Fork |
Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle, 44mm Offset Travel:?140mm Spring Type:?Air |
| Bottom Bracket |
FSA MegaExo 73mm BSA |
| Headset |
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2 |
| Stem |
Marin 3D Forged Alloy, 35mm |
| Handlebar |
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5 Up, 9 Back |
| Saddle |
Marin Speed Concept |
| Seatpost |
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm Type:?Dropper |
| Pedals |
Marin Nylon Flat |
| Grips |
Marin Grizzly Lock On |
Groupset
| Rear Derailleur |
Shimano Deore, 12-Speed, SGS |
|---|---|
| Front Derailleur |
– |
| Crank |
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
| Shifters |
Shimano Deore, 12-Speed, SL-6100IR |
| Cassette |
SunRace, 12-Speed, MicroSpline, 10-51T |
| Chain |
KMC X-12 Silver and Black |
| Brakes |
TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 203mm Rotor Type:?Hydraulic Disc |
| Brake Levers |
TRP Slate EVO, I-Spec EV Compatible |
Wheels
| Rims |
Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible |
|---|---|
| Spokes |
14g Black Stainless Steel |
| Front Hub |
Shimano HF-MT410B, 110x15mm, 32H |
| Rear Hub |
Shimano HB-MT410B, 148x12mm, 32H, MicroSpline Freehub Body |
| Tires |
Maxxis Assegai, 29 x 2.5″ MAXX TERRA, EXO Casing, Tubeless Compatible |
