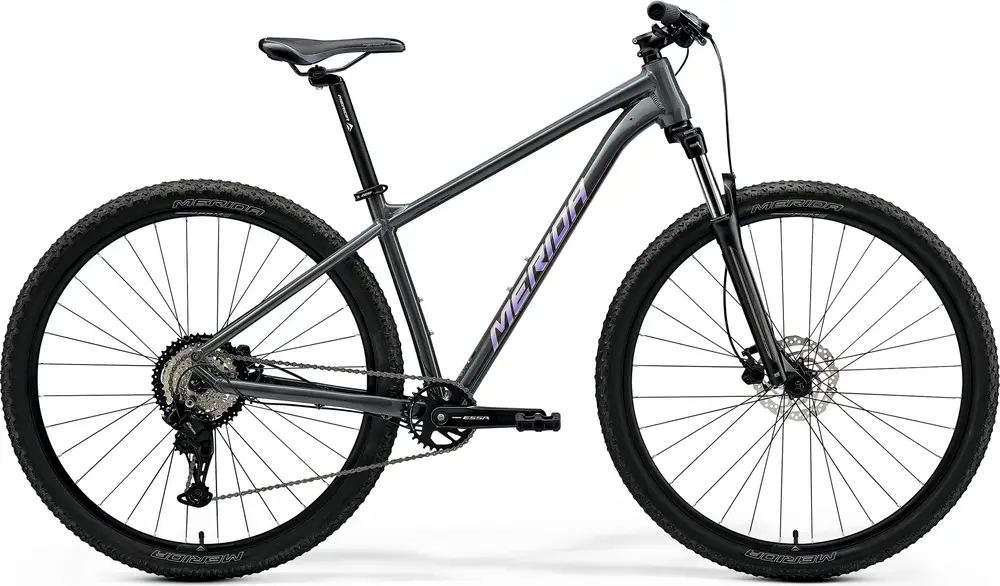

Merida BIG.NINE 20 Bike 2025 Overview
Build
| Frame |
BIG.NINE TFS IV, material: aluminum, 29×2.25″ max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard BB Standard:?BSA, 73mm, Threaded |
|---|---|
| Fork |
Suntour XCT30 HLO, Coil, 100mm suspension travel, lockout, 29×2,25″ max. wheelsize Travel:?100mm Spring Type:?Coil |
| Bottom Bracket |
BSA, 73mm, threaded |
| Headset |
MERIDA M2345 |
| Handlebar |
MERIDA CC, material: aluminium, 690mm width, 15mm rise |
| Saddle |
MERIDA Sport comfort |
| Seatpost |
MERIDA CC, 30.9mm diameter, 15mm setback, material: aluminium Type:?Rigid |
| Pedals |
VP VPE-891 |
Groupset
| Rear Derailleur |
Shimano ESSA RD-U2000-8, GS |
|---|---|
| Crank |
Shimano ESSA FC-U2001 32 teeth, MAT Aluminium, 170 mm-S, 175 mm-M up |
| Shifters |
Shimano ESSA SL-315-8R |
| Cassette |
Shimano CS-HG400-8, 11-45 teeth, 8 speed |
| Chain |
KMC Z8.3 |
| Brakes |
Tektro HD-M275, hydraulic brake Type:?Hydraulic Disc |
Wheels
| Rims |
MERIDA CC, 17mm inner width, material: aluminium |
|---|---|
| Spokes |
Black steel |
| Front Hub |
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock |
| Rear Hub |
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock |
| Tires |
MERIDA K1080, 29×2.2″, wire |
| Disc Rotors |
Shimano RT10, 160 mm |
