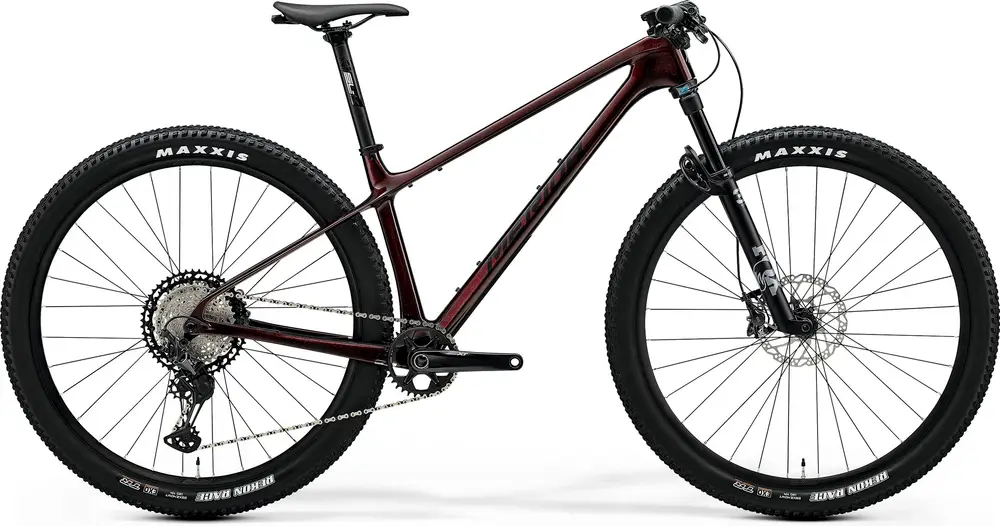

Merida BIG.NINE XT Bike 2025 Overview
Build
Frame
BIG.NINE CF3 III, material: carbon, 29×2.4″ max wheelsize, 148x12mm axle standard, BSA bottom bracket standard
BB Standard:?BSA, 73mm, Threaded
Fork
Fox 32 SC Performance, Air, 100mm suspension travel, Tapered, 2 position remote lockout, 29×2.4″ max. wheelsize, 44 mm fork offset
Travel:?100mm
Spring Type:?Air
Bottom Bracket
BSA, 73mm, threaded
Headset
Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing
Handlebar
MERIDA EXPERT CC, material: aluminium, 760mm width, flat
Saddle
MERIDA COMP SL, 25% recycled material, V-mount
Seatpost
FSA SL-K, material: carbon, 30.9mm diameter, 0mm setback
Type:?Rigid
| Frame |
BIG.NINE CF3 III, material: carbon, 29×2.4″ max wheelsize, 148x12mm axle standard, BSA bottom bracket standard BB Standard:?BSA, 73mm, Threaded |
|---|---|
| Fork |
Fox 32 SC Performance, Air, 100mm suspension travel, Tapered, 2 position remote lockout, 29×2.4″ max. wheelsize, 44 mm fork offset Travel:?100mm Spring Type:?Air |
| Bottom Bracket |
BSA, 73mm, threaded |
| Headset |
Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing |
| Handlebar |
MERIDA EXPERT CC, material: aluminium, 760mm width, flat |
| Saddle |
MERIDA COMP SL, 25% recycled material, V-mount |
| Seatpost |
FSA SL-K, material: carbon, 30.9mm diameter, 0mm setback Type:?Rigid |
Groupset
| Rear Derailleur |
Shimano XT, SGS |
|---|---|
| Crank |
Shimano XT, 34 teeth, 170 mm-S, 175 mm-M up |
| Shifters |
Shimano XT M8100, Multi Release |
| Cassette |
Shimano XT, 10-51 teeth, 12 speed |
| Chain |
KMC X12 |
| Brakes |
Shimano XT M8100 / Shimano XT M8110, 2 piston Type:?Hydraulic Disc |
Wheels
| Rims |
MERIDA EXPERT CC II, 25mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Spokes |
Double Butted Black stainless |
| Front Hub |
Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock |
| Rear Hub |
Shimano XT, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Tires |
Maxxis Rekon Race, 29×2.4″ WT, tubeless ready, 3C MaxxTerra EXO |
| Disc Rotors |
Shimano RT54, 180mm, 160mm |
