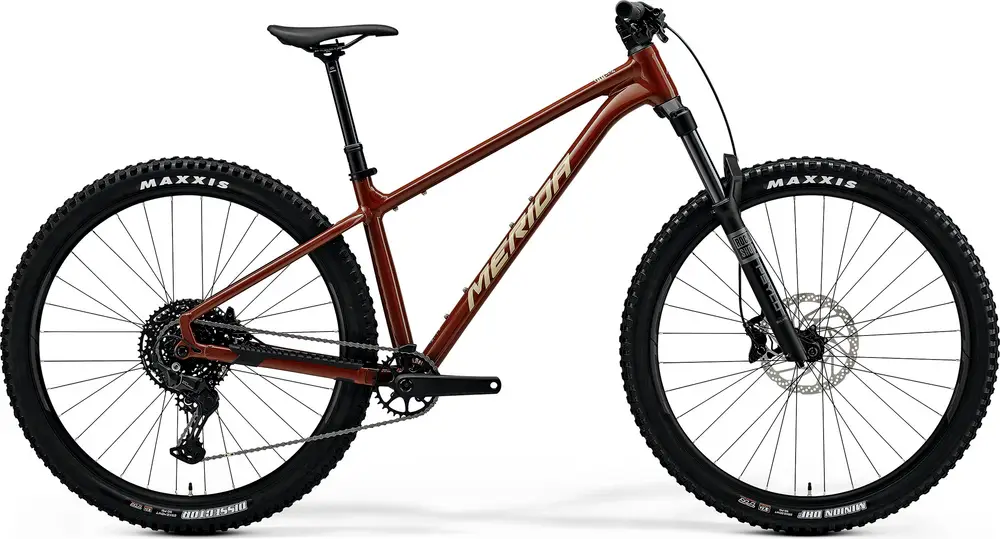

Merida BIG.TRAIL 500 Bike 2025 Overview
Build
| Frame |
BIG.TRAIL TFS II, material: aluminium, 29×2.4″ max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard BB Standard:?BSA, 73mm, Threaded |
|---|---|
| Fork |
Rock Shox Psylo Silver RC, Air, 140mm suspension travel, platform Travel:?140mm Spring Type:?Air |
| Bottom Bracket |
BSA, 73mm, threaded |
| Headset |
Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing |
| Handlebar |
MERIDA COMP TR, material: aluminium, 780mm width, 20mm rise |
| Saddle |
MERIDA COMP SL, 25% recycled material, V-mount |
| Seatpost |
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT: 150mm travel seatpost – SHORT : 170mm travel seatpost – MID/LONG: 200mm travel seatpost – XLONG: 230mm travel seatpost Type:?Dropper |
Groupset
| Rear Derailleur |
Shimano CUES U6000, GS |
|---|---|
| Crank |
MERIDA Expert TR II, 32 teeth, 165mm XSHORT and SHORT |
| Shifters |
Shimano SL-MT500-L |
| Cassette |
Shimano LG300, 11-48 teeth, 10 speed |
| Chain |
KMC xGlide |
| Brakes |
Shimano MT410, 4 piston, 2 piston Type:?Hydraulic Disc |
Wheels
| Rims |
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included) |
|---|---|
| Spokes |
Double Butted Black stainless |
| Front Hub |
Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock |
| Rear Hub |
Shimano TC500-HM-B, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Tires |
Maxxis Minion DHF, 29×2.5″, fold, TR EXO Dual |
| Disc Rotors |
Shimano RT30, 203mm, 180mm |
