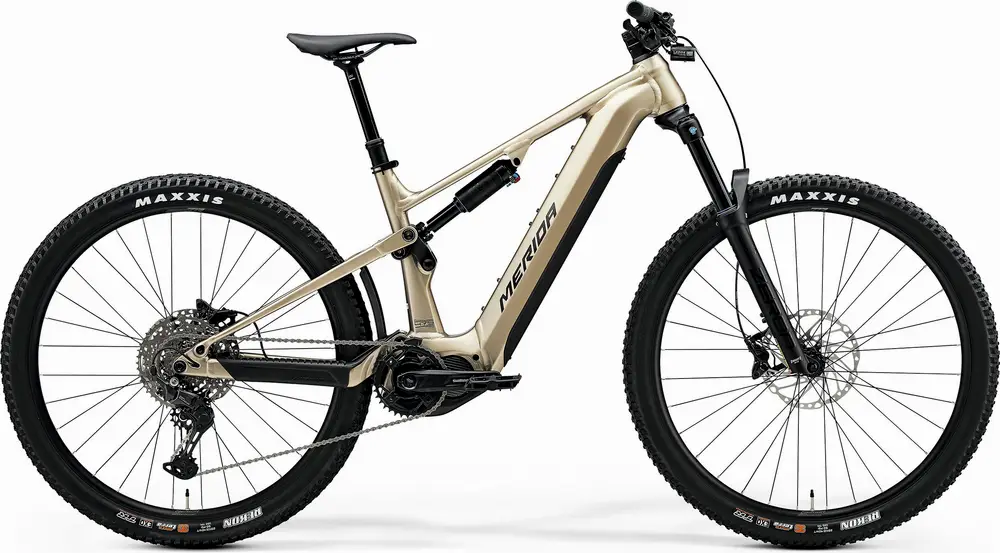

Merida eONE-FORTY 400 Bike 2025 Overview
Build
| Frame |
eONE-FORTY LITE IV, material: aluminium, 133mm suspension travel, 27.5×2.8″ max. wheelsize, 148x12mm axle standard, intube BB Standard:?BSA, 73mm, Threaded |
|---|---|
| Fork |
SR Sunotur Zeron 36X, Air, 150mm suspension travel, Tapered, 44mm fork off set, 29×2.6″ max wheelsize Travel:?150mm Spring Type:?Air |
| Shock |
SR Suntour Edge Plus, platform Travel:?133mm |
| Bottom Bracket |
BSA, 73mm, threaded |
| Headset |
Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| Handlebar |
MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB |
| Saddle |
MERIDA COMP SL, 28% recycled material, V-mount |
| Seatpost |
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost – S: 150mm travel seatpost – M/L: 200mm travel seatpost – XL: 230mm travel seatpost Type:?Dropper |
| Pedals |
VP VPE-533 |
Groupset
| Rear Derailleur |
Shimano Cues U6000, GS |
|---|---|
| Crank |
FSA 1x Steel Chainring, 36 teeth |
| Shifters |
Shimano SL -MT500-IL |
| Cassette |
Shimano LG400, 11-48 teeth, 10 speed |
| Chain |
Shimano LG500 |
| Brakes |
Shimano MT420, 4 piston Type:?Hydraulic Disc |
Wheels
| Rims |
MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29″ |
|---|---|
| Spokes |
Black stainless |
| Front Hub |
Shimano TC500-B, 110x15mm width front hub, 32 spoke holes, Centerlock |
| Rear Hub |
Shimano TC500-HM-B, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Tires |
Maxxis Rekon, 29×2.4″, fold, TR 3C EXO MaxxTerra |
| Disc Rotors |
Shimano RT64 / Shimano RTEM600, 203 mm |
Electric Components
| Motor |
Shimano EP801, 85Nm |
|---|---|
| Battery |
Shimano EN806 630 Wh, removeable, No Range Extender compatibility |
| Display |
Shimano SC-EN600 |
Accessories
| Fenders |
EOF-204 |
|---|
