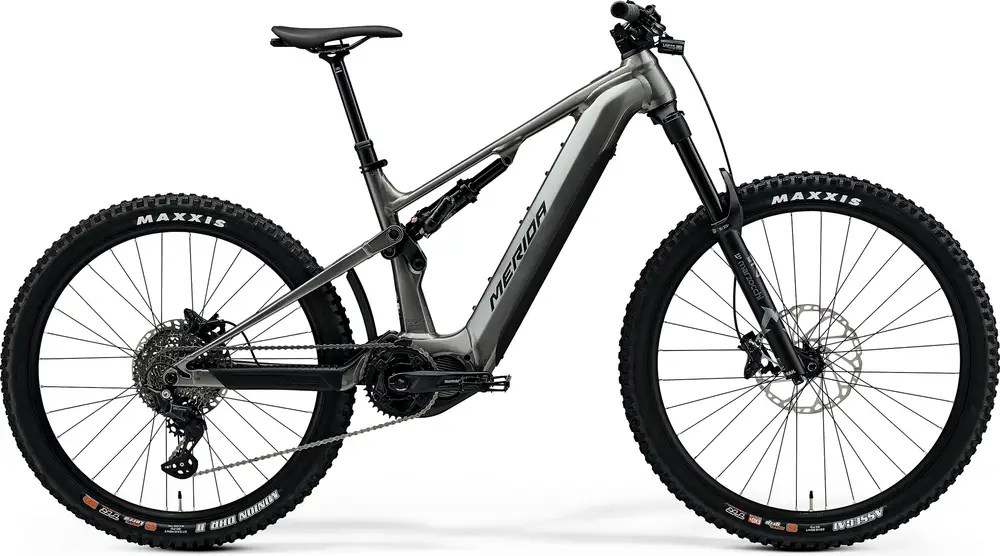

Merida eONE-SIXTY 675 Bike 2025 Overview
Build
| Frame |
eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29×2.6″ max. wheelsize, 148x12mm axle standard, intube, 750 Wh BB Standard:?BSA, 73mm, Threaded |
|---|---|
| Fork |
Marzocchi Z1 eMTB, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29×2.6″ max wheelsize Travel:?170mm Spring Type:?Air |
| Shock |
Marzocchi Bomber Air, platform Travel:?160mm |
| Bottom Bracket |
BSA, 73mm, threaded |
| Headset |
Acros ICR MERIDA EXTERNAL neck w/ Blocklock |
| Stem |
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0 stem angle, Supernova mount, 40 mm all sizes |
| Handlebar |
MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB |
| Saddle |
MERIDA COMP SL, 28% recycled material, V-mount, incl. MERIDA minitool |
| Seatpost |
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost – S: 150mm travel seatpost – M/L/XL: 200mm travel seatpost – XL: 230mm travel seatpost Type:?Dropper |
| Pedals |
VP VP-532 |
Groupset
| Rear Derailleur |
Shimano Deore RDM5130 LinkGlide 10 |
|---|---|
| Crank |
FSA 1x Steel Chainring, 36 teeth |
| Shifters |
Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post) / Shimano XT M5130 10 |
| Cassette |
Shimano LG400, 11-43 teeth, 10 speed |
| Chain |
Shimano LG500 |
| Brakes |
Shimano Deore M6120, 4 piston Type:?Hydraulic Disc |
Wheels
| Rims |
MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29″, rear 27.5″ |
|---|---|
| Spokes |
Black stainless |
| Front Hub |
Shimano TC500-B / Shimano TC600-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Rear Hub |
Shimano TC500-B / Shimano TC600-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Tires |
Front: Maxxis Assegai, 29×2.5 “, fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 27.5×2.4 “, fold, 3C DD TR MaxxTerra |
| Disc Rotors |
Shimano RT64 / Shimano RTEM600, 220 mm, 203 mm |
Electric Components
| Motor |
Shimano EP801, 85Nm |
|---|---|
| Battery |
Trendpower Internal Battery TPS-C04-35SD Gen 2, 750Wh, removeable |
| Display |
Shimano SC-EM800 |
| Charger |
Trendpower EU Smart Charger, 4A |
Accessories
| Lights |
LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / Lezyne LED Fempto USB rear STVZO |
|---|
