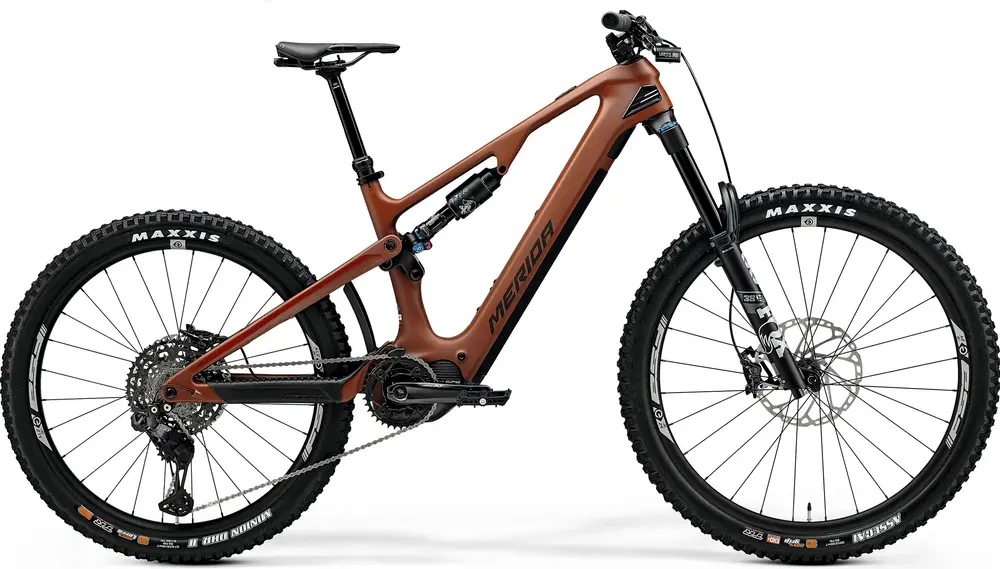

Merida eONE-SIXTY 8000 Bike 2025 Overview
Build
| Frame |
eONE-SIXTY CF4 III, material: carbon, 160mm suspension travel, 29 x 2,6 max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh BB Standard:?BSA, 73mm, Threaded |
|---|---|
| Fork |
Fox 38 Performance Elite eMTB+, Air, 170mm suspension travel, Tapered, 44mm fork offset, 29×2.6″ max wheelsize Travel:?170mm Spring Type:?Air |
| Shock |
Fox Float X Performance, 2 Pos Lever Travel:?160mm |
| Bottom Bracket |
BSA, 73mm, threaded |
| Headset |
Acros ICR MERIDA INTEGRATED neck w/ Blocklock |
| Stem |
MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0 stem angle, Supernova mount, 40 mm all sizes |
| Handlebar |
MERIDA EXPERT eTR, 780mm width, XS,S 20RHB, M,L,XL 30RHB |
| Saddle |
Proxim Nembo Steel, V-mount adapter, incl. MERIDA minitool |
| Seatpost |
MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost Type:?Dropper |
| Pedals |
VP VP-532 |
Groupset
| Rear Derailleur |
Shimano XT Di2 RDM8150 LinkGlide 11 |
|---|---|
| Crank |
FSA 1x Steel Chainring, 36 teeth |
| Shifters |
Shimano SL -MT500-IL / Shimano XT Di2 M8150 11 |
| Cassette |
Shimano LG700, 11-50 teeth, 11 speed |
| Chain |
CNLG500 |
| Brakes |
Shimano XT, 4 piston Type:?Hydraulic Disc |
Wheels
| Rims |
FSA E-MTB i30 Alloy, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, 6-Bolt, Shimano HG, material: aluminium, Tubeless ready (tubeless tape and valves included) |
|---|---|
| Front Hub |
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key |
| Rear Hub |
MERIDA EXPERT TR, including removeable lever, 6/4mm allen key |
| Tires |
Front: Maxxis Assegai, 29×2.5 “, fold, TR EXO+ 3C MaxxGrip, Rear: Maxxis Minion DHR II, 27.5×2.4 “, fold, 3C DD TR MaxxTerra |
| Disc Rotors |
Shimano RT66, 220 mm, 203 mm |
Electric Components
| Motor |
Shimano EP801, 85Nm |
|---|---|
| Battery |
Trendpower Internal Battery 600 Wh TPS-C15-58SD, Shimano Gen 2, integrated |
| Display |
Shimano SC-EM800 |
| Charger |
Trendpower EU Smart Charger, 4A |
Accessories
| Lights |
LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / USB REAR Light CG-214RG |
|---|
