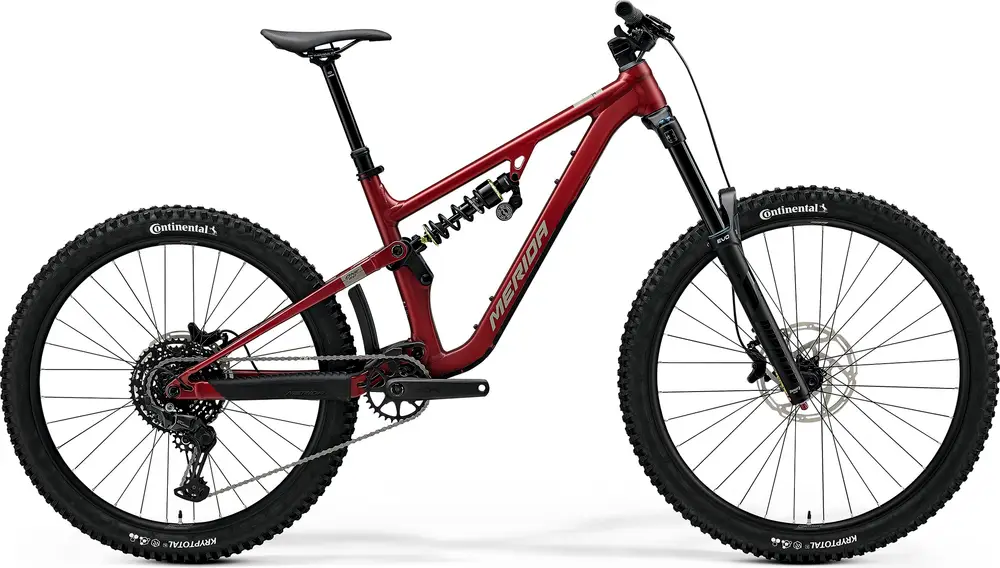

Merida ONE-SIXTY FR 400 Bike 2025 Overview
Build
| Frame |
ONE-SIXTY LITE III, 171mm suspension travel mullet, material: aluminium, 29×2.5″ max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard BB Standard:?BSA, 73mm, Threaded |
|---|---|
| Fork |
SR Suntour Durolux 38 RC, Air, 180mm suspension travel, Tapered, xxmm fork offset, 29×2.60″ max. wheelsize Travel:?180mm Spring Type:?Air |
| Shock |
DVO Jade X D3, coil, spring rate: XS 300 lbs, S 350 lbs, M: 400 lbs, L: 450, XL: 500 Travel:?171mm |
| Bottom Bracket |
Samox BSA 24mm EB2401 |
| Headset |
Acros ICR MERIDA EXTERNAL neck, Upper and lower IPS sealing |
| Stem |
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0 stem angle, 40 mm |
| Handlebar |
MERIDA EXPERT TR II, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise |
| Saddle |
MERIDA COMP SL, 25% recycled material, V-mount |
| Seatpost |
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XSHORT/SHORT: 150mm travel seatpost – MID: 170mm travel seatpost – LONG: 200mm travel seatpost – XLONG: 230mm travel seatpost Type:?Dropper |
Groupset
| Rear Derailleur |
Shimano CUES U6000, GS |
|---|---|
| Crank |
MERIDA Expert TR II, 32 teeth, 165 mm for all sizes |
| Shifters |
Shimano SL-MT500-L / Shimano CUES U6000 |
| Cassette |
Shimano LG300, 11-48 teeth, 10 speed |
| Chain |
KMC xGlide |
| Chain Guide |
MERIDA EXPERT TR ISCG05 |
| Brakes |
Tektro Gemini HD-M535, 4 piston Type:?Hydraulic Disc |
Wheels
| Rims |
MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29″, rear 27.5″ |
|---|---|
| Spokes |
Double Butted Black stainless |
| Front Hub |
Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Rear Hub |
Shimano TC500-B / Shimano TC500-HM-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock |
| Tires |
Front: Continental Kryptotal-F, 29×2.4″, fold, TR, Enduro casing, Soft Compund, Rear: Continental Kryptotal-R, 27.5×2.4″, fold, TR, Enduro Casing, Soft Compound |
| Disc Rotors |
Tektro TR203-45, 203mm |
