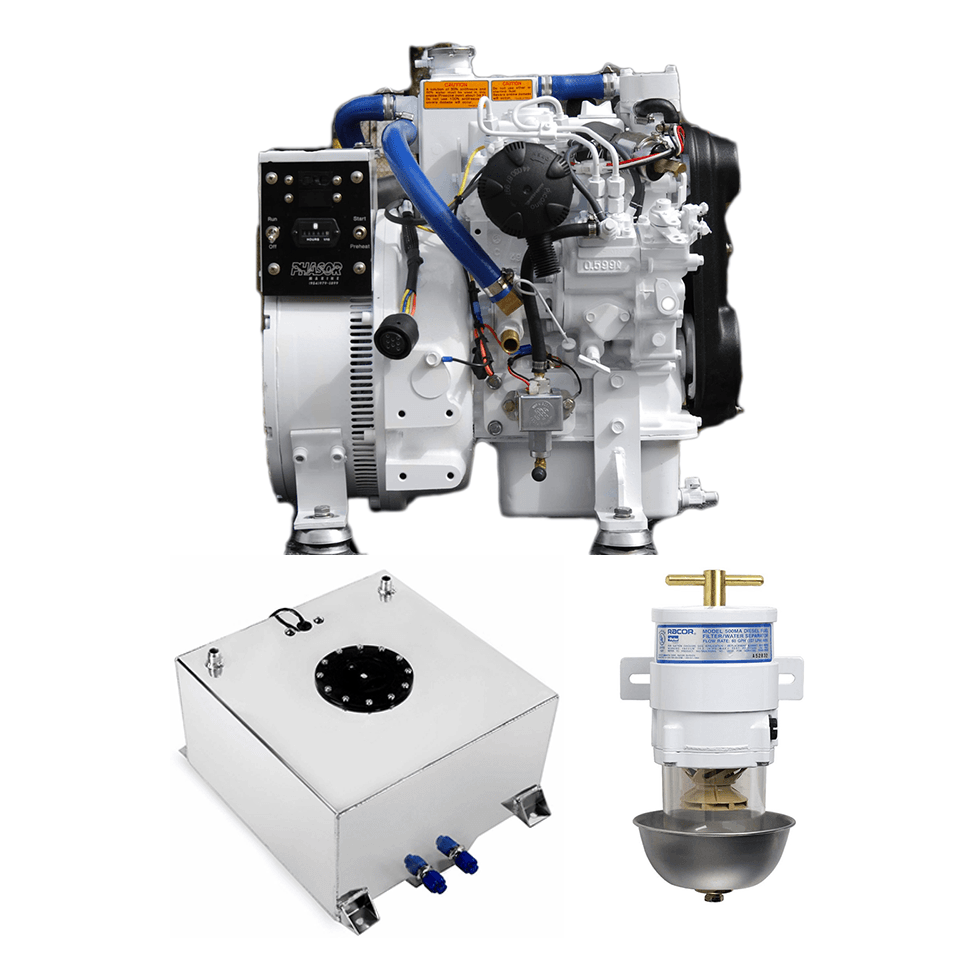

Phasor k2-4.5pmg-kit Marine Generator (Includes Fuel Tank and Filter) 4.5 KW (60 Hz) – Ignition Protected
nThe Phasor k2-4.5pmg-kit Marine Generator is a compact, reliable 4.5 kW (60 Hz) gas generator package, specifically designed for small boats and installations requiring ignition-protected components for safety (gasoline application). This complete Phasor Marine Generator includes the generator unit, fuel tank, and filter, making installation straightforward. The k2-4.5pmg-kit delivers consistent power for onboard essentials, featuring a durable design and the necessary safety measures for gasoline engines in marine environments. Choose this Phasor unit for its small footprint, ease of setup, and reliable auxiliary power.n
| Kubota Model | Z602-E4B |
| Number of Cylinders | 2 |
| Cubic Inch Displacement | 36.55 |
| KW Rating at 60 Hz | 4.5 |
| KW Rating at 50 Hz | 3.5 |
| Electric End | Coliseum |
| Bore x Stroke | 2.83″ X 2.90″ |
| Dimensions (LxWxH) without enclosure | 20″ x 17″ x 22″ |
| Dimensions (LxWxH) with enclosure | 26″ x 20″ x 24.2″ |
| Weight (lbs.) | 294 |
| Output (volts) | 120/240 |
| Output (amps) | 38/19 |
| Output (watts) | 4500 |
| Exhaust Dia. | 2.0″ |
| Raw Water Dia. | 3/4″ |
| Fuel Line Dia. | 5/16″ |
| Return Line Dia. | 3/16″ |
n

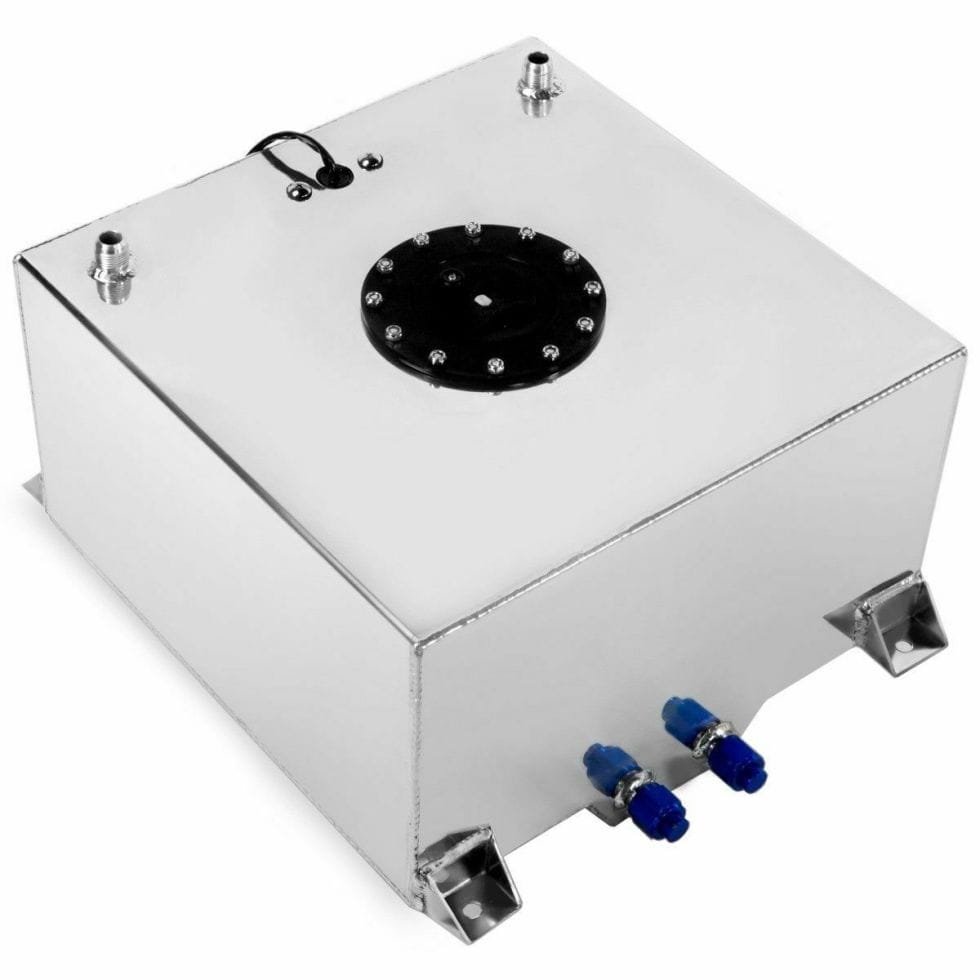

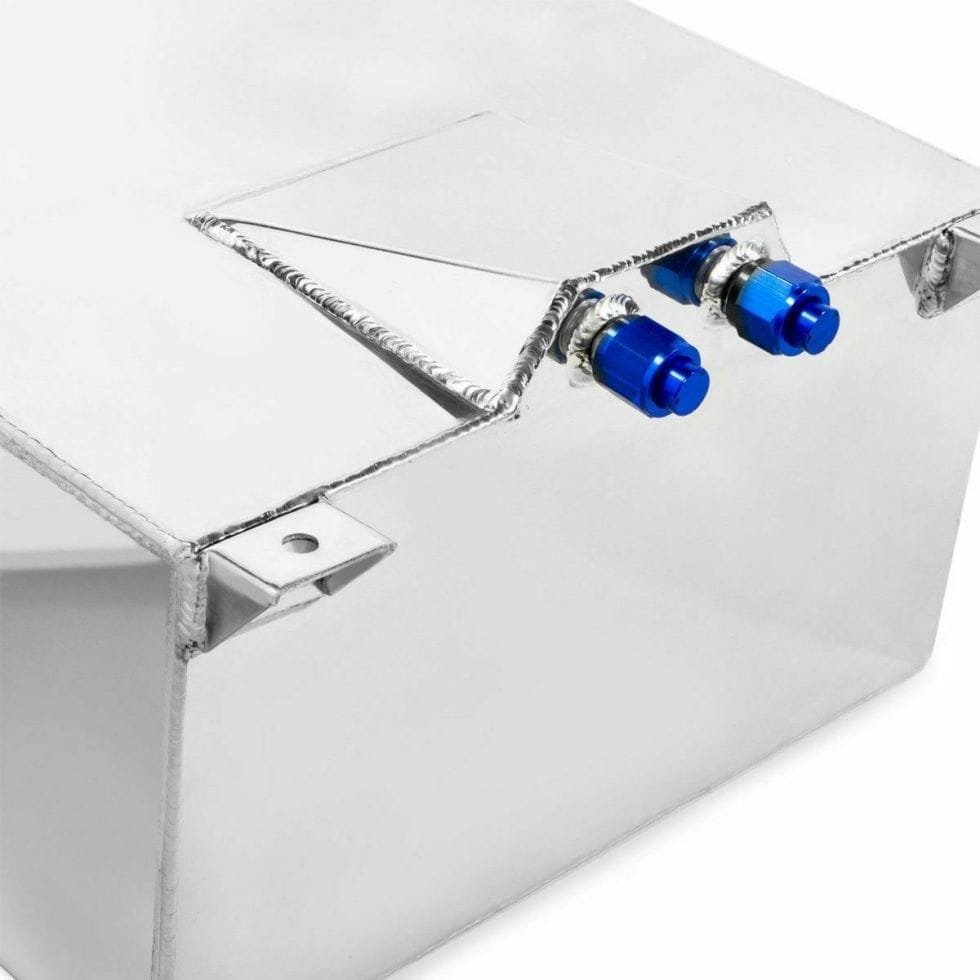

Fuel Tank Specifications
n
| Material | Aluminum |
| Tank Measures | 16.5″ (L) x 16.5″ (W) x 9.25″ (H) |
| Sump Measures | 6″ x 6″ x 2″ Deep |
| Capacity | 10 Gal / 40L |
| Fuel Sender | 0-90 Ohm |
| Anti-slosh Foam Included | Silver |
n
