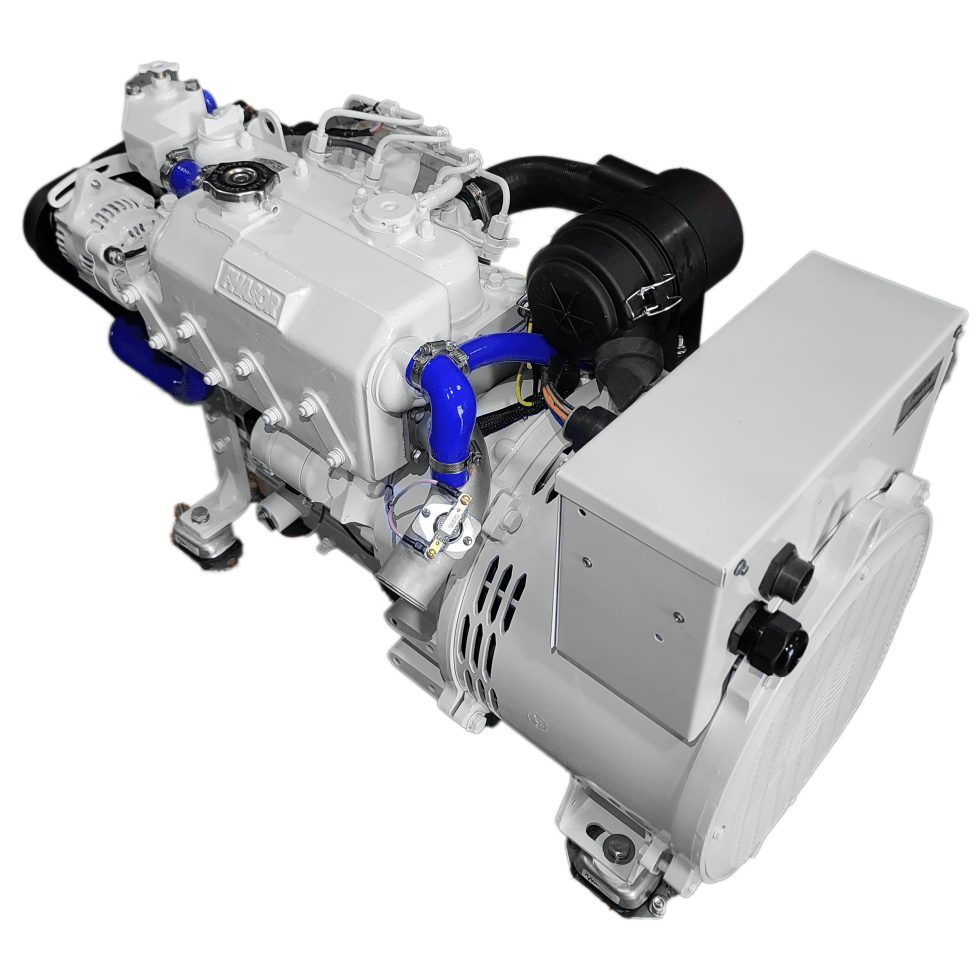

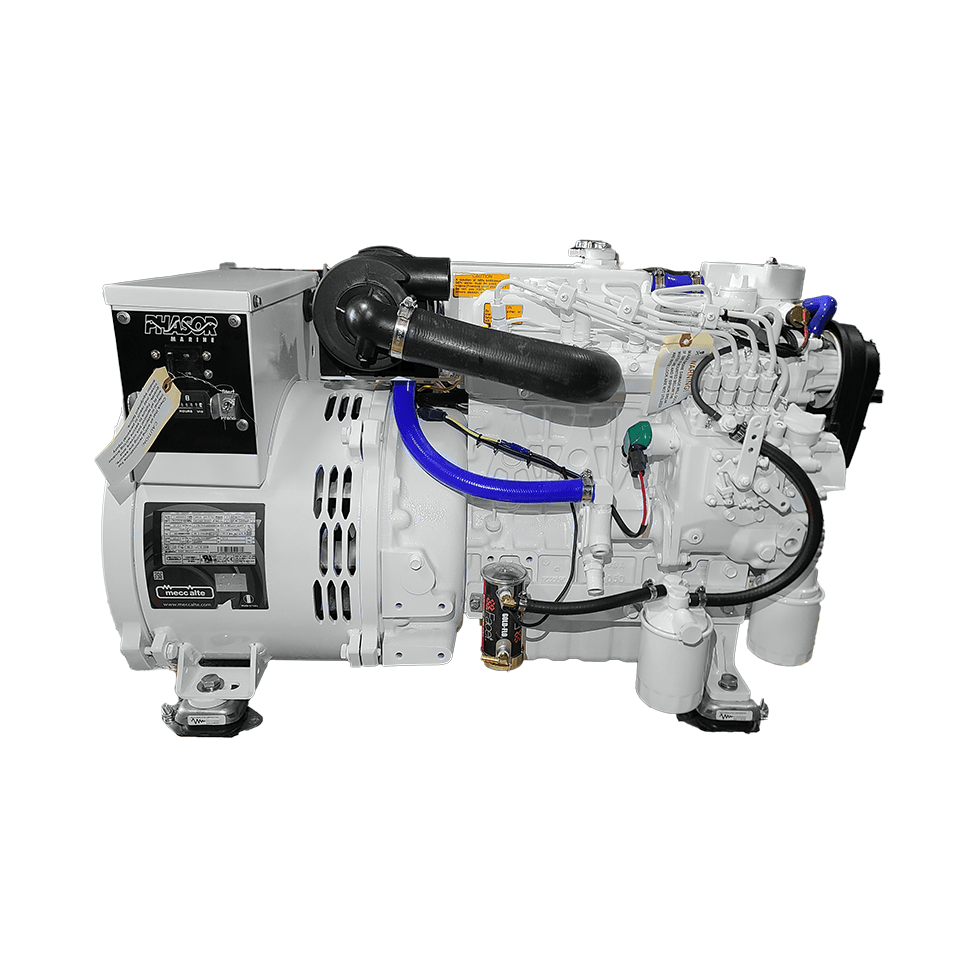

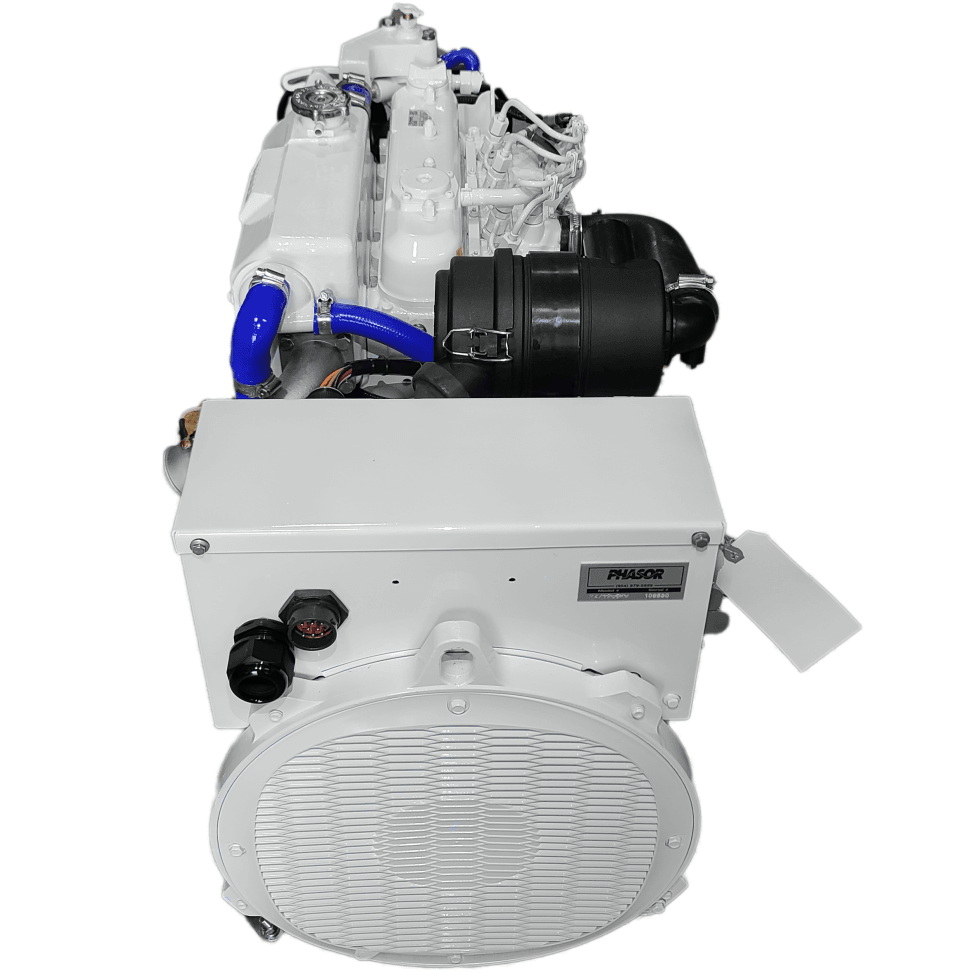

Phasor K3-14.0 kW Diesel Marine Generator 14.0 kW 60 Hz 1800 RPM Standard Series

Phasor K3-14.0 kW Diesel Marine Generator – 14.0 kW (60 Hz) – 1800 RPM – Standard Series

nThe Phasor K3-14.0 kW Diesel Marine Generator delivers high-output, continuous power, offering a strong 14.0 kW (60 Hz) capacity in the Standard Series. Running at a slow 1800 RPM speed, this generator ensures outstanding durability, low noise, and optimal fuel economy, making it an excellent choice for serious cruising yachts. The Phasor K3-14.0 kW provides stable, reliable power for multiple air conditioning units and extensive onboard systems. Choose this robust Phasor Marine Generator for its long service life and high-performance capability.n

n
• Kubota Diesel Engine • Single bearing direct coupled brushless generator

n

•  +/– 1% Solid-state voltage regulation

n

• Low 1,800 RPM operating speed

n

• Safety shutdown system for high coolant temperature or low lube oil pressure

n

• Tinned wiring

n

• Freshwater double pass heat exchanger

n

• Water-cooled exhaust manifold with removable intergral Cupro-Nickel heat exchanger core

n

• Zinc anode in heat exchanger

n

• Stainless Steel exhaust elbow cast

n

• Gear-driven raw water pump

n

• 4-Point isolation mounts S/S

n

• Molded blue silicone water hoses with Stainless Steel AWAB clamps • Air intake Cleaner / Silencer

n

• Spin-on lube filter

n

• Secondary 5 Micron fuel filter

n

• Self-bleed fuel system

n

• USCG approved fuel lines

n

• Electric fuel transfer pump

n

• Forged brass oil drain valve with safety lock

n

• Awl-Craft 2000 urethane finish

n

• Circuit breaker – main line

n

• Belt guard

n

• 5-Year Limited Warranty

n

n

Specifications

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Kubota Model	D1503-M-E4BG
Number of Cylinders	3
KW Rating at 60 Hz	14.0 Kw
KW Rating at 50 Hz	11.5 Kw
Cubic Inch Displacement	91.47
Fuel Consumption ( Gal/Hr )	full load 0.76 Half Load 0.40
Electrical End	Linz
Bore x Stroke	3.27 x 3.64″
Dimensions (LxWxH) without enclosure	34.5 x 21 x 26″
Dimensions (LxWxH) with enclosure	37.5 x 24 x 28″
Weight (lbs.)	685
Output (volts)	120/240
Output (amps)	116.6/58.3
Output (watts)	14,000
Exhaust Dia.	2.0″
Raw Water Dia.	1″
Fuel Line Dia.	5/16″
Return Line Dia.	3/16″
