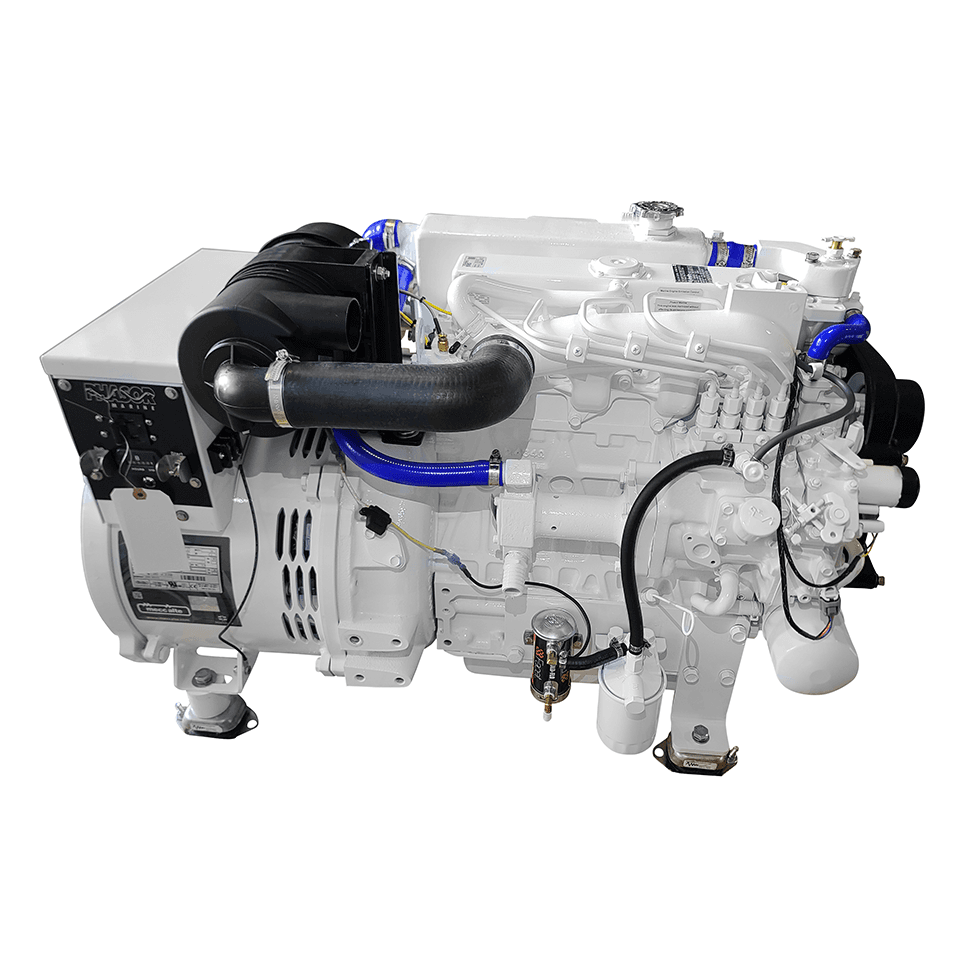

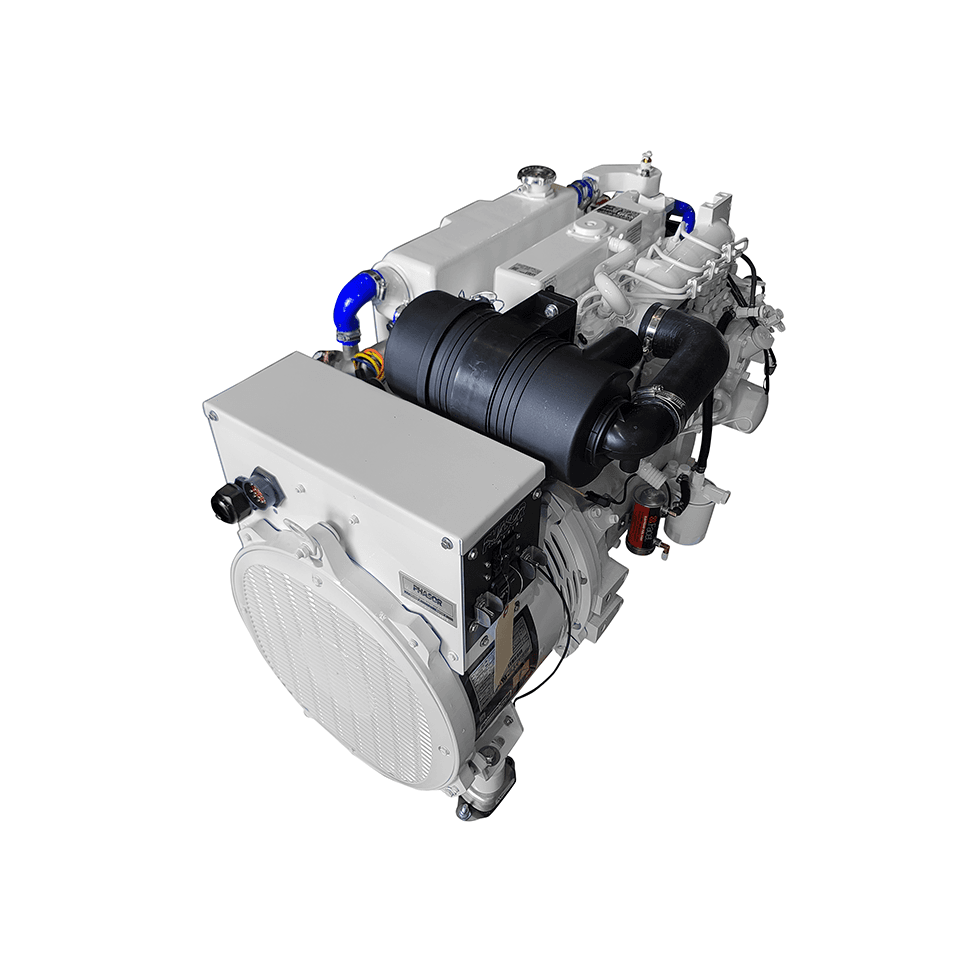

Phasor K4-21.0kW Diesel Marine Generator – 21.0kW (60 Hz) – 1800 RPM – Standard Series Specifications

nThe Phasor K4-21.0kW Diesel Marine Generator offers commercial-grade power in the Standard Series, delivering a robust 21.0 kW (60 Hz) capacity. Operating at a slow 1800 RPM speed, this four-cylinder unit ensures exceptional durability, reduced noise, and extended engine life, making it ideal for continuous duty applications like trawlers and large cruising yachts. This Phasor Marine Generator provides stable, reliable power for heavy loads and complex onboard systems. Choose the K4-21.0kW for its long-term reliability, fuel efficiency, and heavy-duty performance.n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Model V2403-M-E4BG
Number of cylinders 4
KW Rating at 60 Hz 21.0 Kw
KW Rating at 50 Hz 17.5 Kw
Cubic Inch Displacement 148.5
Fuel Consumption ( Gal/Hr ) Full Load 1.48 Half Load 0.90
Electric End Linz
Bore x Stroke 3.43″ X 3.64″
Dimensions (LxWxH) without enclosure 39.5″ x 21″ x 26″
Dimensions (LxWxH) with enclosure 43″ x 24″ x 28″
Weight (lbs.) 776
Output (volts) 120/240
Output (amps) 175/87.5
Output (watts) 21,000 (21KW) at 60HZ / 17,500 (17.5KW) at 50HZ
Exhaust Dia. 2.0″
Raw Water Dia. 1.0″
Fuel Line Dia. 5/16″
Return Line Dia. 3/16″
