Build
| Frame |

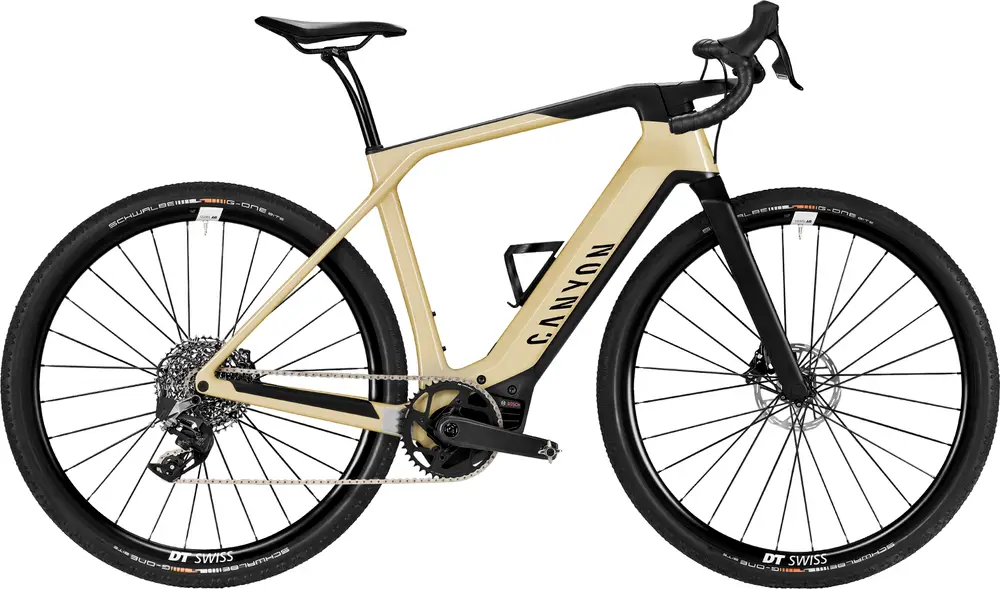

Canyon Grail:ON CF, Carbon e-gravel frame with agile handling, low motor position and extended wheelbase for huge stability, and a more upright, relaxed, comfortable riding position., Axle dimension: 12×148 mm, Tyre clearance: 50 mm, Material: Carbon (CF) Tire Clearance:Â 50c Color:Â Sand |
|---|---|
| Fork |
Canyon FK0064 CF Disc, A robust carbon fibre fork offering the optimal mix of robustness, stiffness, and lightness., Material: Carbon (CF), Weight: 0.94 lbs |
| Saddle |
Fizik Argo Terra X5, Gender: Unisex, Weight: 0.60 lbs |
| Seatpost |
Canyon S15 VCLS 2.0 CF, Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package., Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g Type:Â Dropper |
| Pedals |
Iridium VP-536 |
Groupset
| Rear Derailleur |
SRAM Rival XPLR eTap AXS, Weight: 0.75 lbs |
|---|---|
| Crank |
FSA CRANK E-BIKE CK 762, Number of chainrings: 1 |
| Shifters |
SRAM Rival eTap AXS 2s, Weight: 1.03 lbs | SRAM Rival eTap AXS 12s, Weight: 1.03 lbs |
| Cassette |
SRAM Rival XPLR XG-1251, 12-speed, 10-44T, Number of sprockets: 12, Range: 10-44 12S |
| Chain |
SRAM Rival D1 12s |
| Chain Guide |
Chainguide FSA |
| Brakes |
SRAM Rival eTap AXS 2s, Weight: 1.03 lbs | SRAM Rival eTap AXS 12s, Weight: 1.03 lbs Type:Â Hydraulic Disc |
| Brake Levers |
SRAM Rival eTap AXS 2s, Weight: 1.03 lbs | SRAM Rival eTap AXS 12s, Weight: 1.03 lbs |
Wheels
| Rims |
DT Swiss HG1800 Spline 28, Axle dimension: 12×100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Inner width: 24 mm, Rim material: Aluminium, Weight: 2.14 lbs | DT Swiss HG1800 Spline 28, Rotor mount: Center Lock, Weight: 2.50 lbs |
|---|---|
| Tires |
Schwalbe G-One Bite TLE, 50mm, Width: 50 mm, Weight: 1.10 lbs |
| Disc Rotors |
SRAM Paceline, Size: 160 mm, Weight: 0.35 lbs |
Electric Components
| Motor |
Bosch Performance Line Speed 28mph |
|---|---|
| Battery |
Bosch Powertube 500Wh BBP286 vertical |
| Display |
Bosch Purion |
| Charger |
Bosch Compact 2A |
