Build
| Frame |

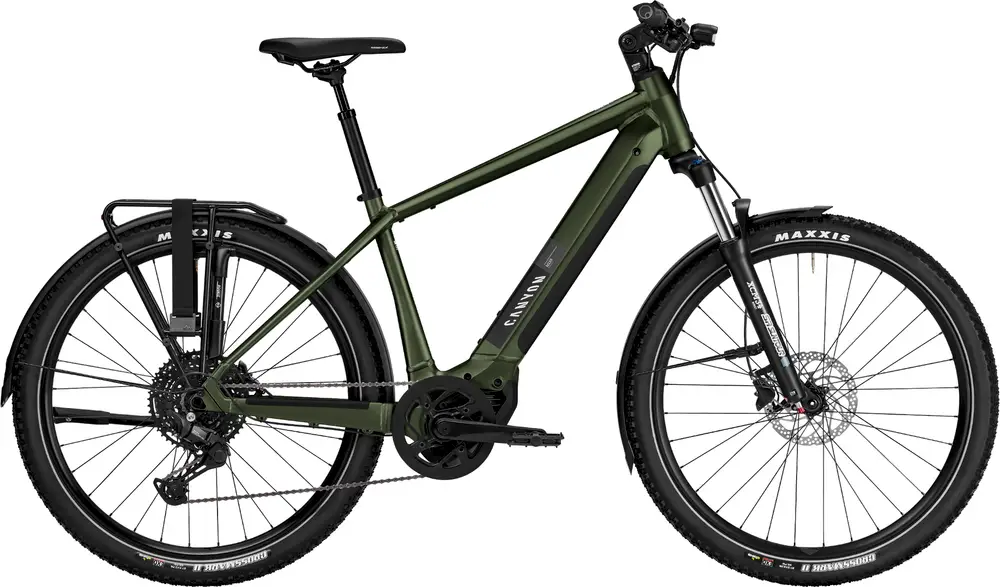

Canyon Pathlite:ON, A tough, feature-packed aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12×148 mm, Material: Aluminium (AL) Color:Â Tundra Green |
|---|---|
| Fork |
Suntour XCM34 Coil, Axle dimension: 15×110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8″, Offset: 47 mm, Weight: 3.42 kg Travel:Â 100mm Spring Type:Â Coil |
| Stem |
Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm |
| Handlebar |
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle |
SD SR ESSENZA PLUS ATHLETIC |
| Seatpost |
Iridium Suspension Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL) Type:Â Suspension |
| Pedals |
Iridium VP-536 |
| Grips |
Ergon GA3 |
Groupset
| Rear Derailleur |
Shimano CUES 10-speed, Cage length: short, Weight: 348 g |
|---|---|
| Crank |
FSA CK-220, Number of chainrings: 1 |
| Shifters |
Shimano CUES U6000, Weight: 30 g |
| Cassette |
Shimano CUES LG300-10, Number of sprockets: 10, Range: 11-48 |
| Chain |
Shimano LG500 |
| Brakes |
Shimano MT200 | Shimano MT200, Number of pistons: 2 Type:Â Hydraulic Disc |
Wheels
| Rims |
Alexrims MD25 | Promax DR850, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g | Alexrims MD25 | Promax DR850 SH11, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 1.14 kg |
|---|---|
| Tires |
Maxxis Crossmark II Reflexstrip Clincher, Width: 2,25″, Weight: 750 g |
| Disc Rotors |
Shimano MT200, Size: 180 mm, Weight: 50 g |
Electric Components
| Motor |
Bosch Performance Line CX |
|---|---|
| Battery |
Depending on your selected configuration. |
| Display |
Bosch Purion 200 |
| Charger |
Bosch 2A |
Accessories
| Lights |
Bchel Shiny 40 LED Front Light | Sate-Lite M12 Rear Light |
|---|---|
| Fenders |
Plastic mudguards | Canyon GP0563-01 Fender Kit |
| Racks |
Canyon Rack |
