Build
| Frame |

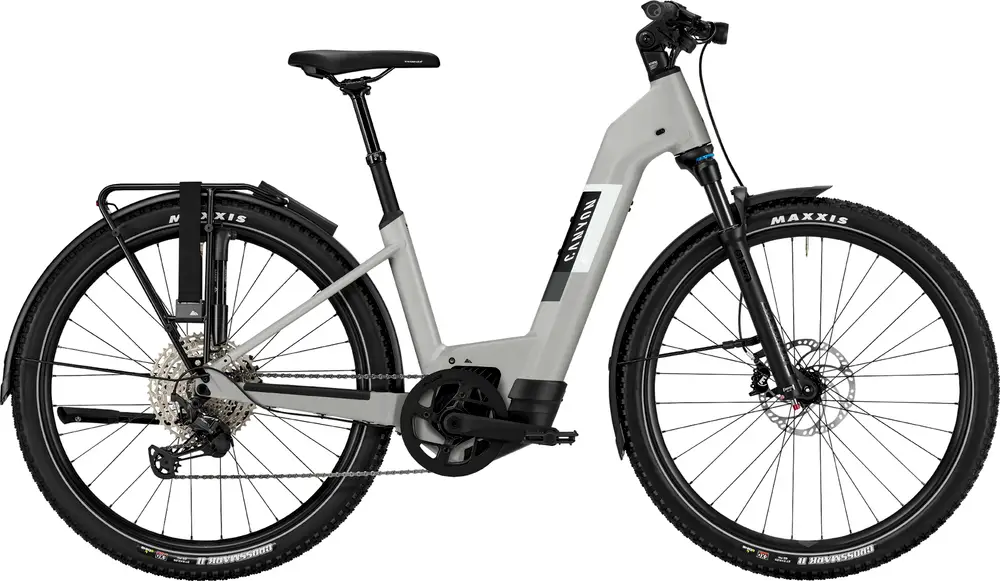

Canyon Pathlite:ON Step-Through, A tough, feature-packed, easy-to-mount aluminium e-touring bike frame with a comfortable riding position., Axle dimension: 12×148 mm, Material: Aluminium (AL) Colors:Â Stone Grey; Tundra Green; Outback Orange |
|---|---|
| Fork |
SR Suntour XCR34 Air, Axle dimension: 15×110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8″, Weight: 2.34 kg Travel:Â 100mm Spring Type:Â Air |
| Stem |
Canyon ST0036 Adjustable, Fork steer tube diameter: 1 1/8″, Clamping diameter: 31,8 mm |
| Handlebar |
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 680 mm, Rise: 5 mm |
| Saddle |
SD SR ESSENZA PLUS ATHLETIC |
| Seatpost |
Iridium Suspension Dropper Post, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 518 g Type:Â Dropper |
| Pedals |
Iridium VP-536 |
| Grips |
Ergon GA3 |
Groupset
| Rear Derailleur |
Shimano Deore XT M8100, Cage length: long, Weight: 286 g |
|---|---|
| Crank |
FSA CK-220, Number of chainrings: 1 |
| Shifters |
Shimano Deore M6100, Weight: 136 g |
| Cassette |
Shimano Deore M6100, Number of sprockets: 12, Range: 10-51 12S |
| Chain |
Shimano CN-M6100 |
| Brakes |
Magura MT30 hydraulic disc brake, Number of pistons: 4 | Magura MT thirty rear, Number of pistons: 2 Type:Â Hydraulic Disc |
Wheels
| Rims |
Alexrims MD25 | Promax DR850, Axle dimension: 15×110 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 905 g | Alexrims MD25 | Promax DR850 SH12, Axle dimension: 12×148 mm, Rotor mount: Center Lock, Rim height: 20 mm, Inner width: 25 mm, Rim material: Aluminium, Weight: 950 g |
|---|---|
| Tires |
Maxxis Crossmark II Reflexstrip Clincher, Width: 2,25″, Weight: 750 g |
| Disc Rotors |
Magura MDR-C, Size: 180 mm, Weight: 138 g |
Electric Components
| Motor |
Bosch Performance Line CX |
|---|---|
| Battery |
Bosch PowerTube 750Wh |
| Display |
Bosch Purion 200 |
| Charger |
Bosch 4A |
Accessories
| Lights |
Supernova Mini 2 Pro | Sate-Lite M12 Rear Light |
|---|---|
| Fenders |
Plastic mudguards | Canyon GP0563-01 Fender Kit |
| Racks |
Canyon Rack |
