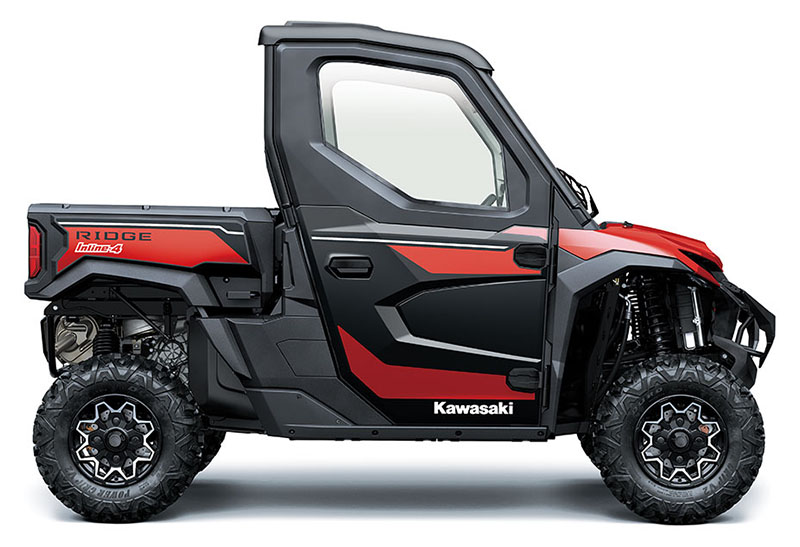

Kawasaki RIDGE HVAC 2024 Specifications
| Manufacturer | Kawasaki |
| Model Year | 2024 |
| Model | RIDGE HVAC |
| Model Code | KWF1000DRFNN |
| Stock Number | 2024400 |
| Color | Candy Persimmon Red |
| Front Brakes | Dual hydraulic 249 mm discs with two-piston calipers |
| Rear Brakes | Dual hydraulic 249 mm discs with single-piston calipers |
| Engine Braking | Yes |
| Wheels | 14 in. aluminum |
| Front Tires | Duro 27 x 9-11 |
| Rear Tires | Duro 27 x 11-14 |
| Overall Length | 124.4 in. |
| Overall Height | 81.3 in. |
| Overall Width | 64.0 in. |
| Ground Clearance | 13.6 in. (max preload) |
| Wheelbase | 90.7 in. |
| Turning Radius | 15.0 ft. |
| Curb Weight | 2,044 lb. (with fluids, fuel, tool kit) |
| Transmission | CVT with High/Low/Neutral/Reverse |
| Final Drive | Selectable 4WD with locking rear differential, shaft |
| Alternator Output | 85A (max) |
| Instrumentation | Full-color TFT with Smartphone Connectivity (RIDEOLOGY THE APP Powersports), Speedometer, Tachometer, Fuel Gauge, Odometer, Tripmeters, Total Time, Trip Time, Average Speed, Gear Indicator, Driving Mode, Power Mode, Clock, Water Temp, Battery Voltage, Oil Change Reminder, Bluetooth, ECO Indicator, Maintenance Reminder, High Beam, Neutral, Reverse, Warning Lights (Battery, EPS, CVT, Seatbelt, Parking, Oil Pressure, Water Temp) |
| Lighting | All-LED |
| Advanced Electronics | Power Modes (Work/Normal/Sport) Economical Riding Indicator |
| Engine | 4-stroke, DOHC, 4-valve |
| Cylinders | In-line four |
| Cooling | Liquid |
| Displacement | 999 cc |
| Bore x Stroke | 2.9 x 2.3 in. (73.4 x 59.0 mm) |
| Compression Ratio | 10.6:1 |
| Horsepower | 92 hp @ 8,500 rpm (ISO 4106 standard) |
| Torque | 65.8 lb-ft @ 5,500 rpm |
| Fuel System | Electronic Fuel Injection (EFI) |
| Ignition | TCBI with digital advance |
| Starting | Electric |
| Fuel Capacity | 12.9 gal. |
| Frame | Ladder type, tubular steel |
| Front Suspension | Long-travel, double wishbone Travel: 12.7 in. |
| Rear Suspension | Long-travel, double wishbone Travel: 10.1 in. |
| Steering | Rack-and-pinion with Electric Power Steering (EPS), Tilting D-shape steering wheel |
| Seating Capacity | 3 (bench seat, adjustable driver’s seat) |
| Cargo Box (L x W x H) | 37.6 x 49.0 x 12.8 in. |
| Cargo Capacity | 1,000 lb. |
| Payload Capacity | 1,499 lb. |
| Towing Capacity | 2,000 lb. |
| Included Features | Full cab with HVAC, ERGO-FIT system, USB ports, KQR system compatibility |
| Safety Features | Rearview mirror, Glass rear panel, Glass windshield with washer and wiper, Full doors with powered windows, Full coverage roof with liner and dome light |
| Warranty | Kawasaki STRONG 3-year limited |
