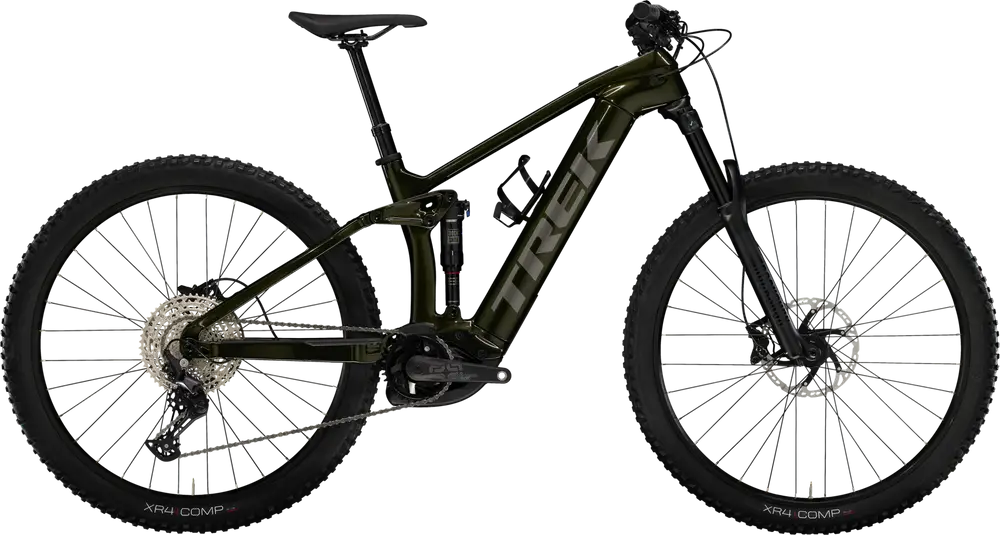

2024 Trek Rail 9.5 Gen 4

OCLV Mountain Carbon main frame, 1.8” lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel

RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

RockShox Deluxe Select+ RT, 230 mm x 57.5 mm

Bosch, press-fit

Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length

Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Bontrager Arvada, steel rails, 138 mm width

Size: S, TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length; Size: M, TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length; Size: L, XL, TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length

VP-536 nylon platform

Bontrager XR Trail Comp, nylon lock-on

Shimano Deore M6100, long cage

E*thirteen E*spec Plus, 165 mm length

Shimano Deore M6100, 12-speed

Size: S, M, L, XL, SunRace CSMZ800 11-51, 12-speed; Size: S, M, L, XL, Shimano Deore M6100, 10-51, 12-speed

Shimano Deore M6100, 12-speed

Size: S, M, L, XL, Tektro HD-M745 hydraulic disc; Size: S, M, L, XL, Tektro HD-M745 4-piston hydraulic disc; Size: S, M, L, XL, Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper

Size: S, M, L, XL, Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve; Size: S, M, L, XL, Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve

14 g stainless steel, black

Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Size: S, M, L, XL, Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle; Size: S, M, L, XL, Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle

Size: S, M, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29×2.40in; Size: S, M, L, XL, Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60in

Size: S, M, L, XL, Tektro, 6-bolt, 203 mm; Size: S, M, L, XL, Shimano RT76, 6-bolt, 203 mm

Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

Size: S, Bosch PowerTube 625Wh, smart system; Size: M, L, XL, Bosch PowerTube 750Wh, smart system

Bosch LED remote, smart system

Bosch standard 4A, 230V, smart system
