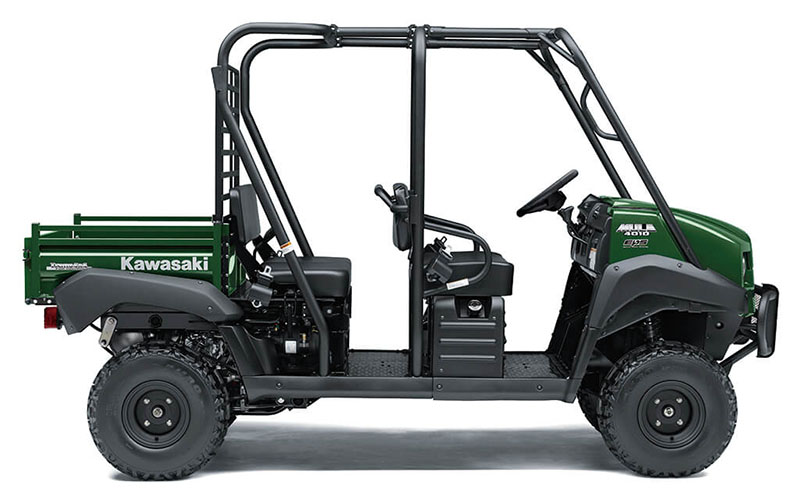

2025 Kawasaki MULE 4010 Trans4x4 for Sale
Features
Comfort & Convenience
- RIDE PREPARED: Electric Power Steering (EPS), thick padded bench seats and passenger grab bars help make the ride comfortable. The dashboard houses 2 glove boxes, a 12V DC outlet and cup holders for added convenience, along with a digital fuel gauge and hour meter. A generous 15.8-gallon storage space is located under the hood, making it easy to stow additional belongings.
Hauling & Towing
- PACKED WITH PULLING POWER: Move extra equipment, supplies, and tools easily with 1,200 lbs of towing capacity. While you’re at it, haul up to 800 lbs (400 lbs in two-row configuration) in the durable steel cargo bed designed to tackle tough loads. The cargo bed also tilts for easy access to the engine compartment.
Power
- BUILT KAWASAKI STRONG: A 617cc V-twin engine produces strong, dependable performance. Start up in cold or warm temperatures with ease thanks to fuel injection.
Trans Cab
- MOVE PEOPLE & PAYLOADS: The 2- to 4-passenger Trans Cab system design lets you quickly change from a 4-seat crew mover to a 2-seat cargo hauler, without the need for tools.
Specifications
General Information
Manufacturer
Kawasaki
Model Year
2025
Model
MULE 4010 Trans4x4
Model Code
KAT620BSFNN
Stock Number
2025515
Color
Timberline Green
Brakes/Wheels/Tires
Brakes
Front / Rear – Drum
Park – Independent, mechanical drum
Wheels
Stee
Tires
Front / Rear – 23 x 11-10
Dimensions
Length
Overall – 128.5 in.
Height
Overall – 75.8 in.
Width
Overall – 58.5 in.
Weight
Curb – 1,587.6 lb.* (*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).)
Ground Clearance
7.1 in.
Wheelbase
85.2 in.
Turning Radius
12.8 ft.
Drivetrain
Transmission
Continuously Variable Transmission (CVT) with (H, L, N, R)
Final Drive
Selectable 2WD / 4WD, shaft. Dual mode rear differential with differential lock
Electrical
Alternator
Output (max) – 23A
Instrumentation
Parking brake warning light, coolant temperature warning light, 12V DC outlet, fuel gauge, hour meter
Lighting
(2) halogen headlights, (2) tail / brake lights
Engine
Engine
4-stroke, OHV, 90° V-twin
Cooling
Liquid
Cylinders
2
Displacement
617 cc
Bore x Stroke
3.0 x 2.7 in. (76.0 x 68.0 mm)
Torque
Maximum – 34.7 ft. lb. @ 2,500 rpm
Compression Ratio
10:3:1
Fuel System
DFI with 34 mm Mikuni throttle body
Fuel Capacity
6.3 gal.
Operational
Front Suspension
MacPherson strut
Wheel Travel – 3.9 in.
Rear Suspension
DeDion axle
Wheel Travel – 2.8 in.
Steering
Rack-and-pinion with Electric Power Steering (EPS)
Seating
2 – 4-person capacity
Other
Additional Colors
Timberline Green
Dark Royal Red
Cargo Box Length
2-person – 50.4 in.
4-person – 30.3 in.
Cargo Box Height
2-person / 4-person – 11.2 in.
Cargo Box Width
2-person / 4-person – 47.6 in.
Cargo Box Capacity
Load (2-person) – 800 lb.
Load (4-person) – 401 lb.
Cargo Box
Steel
Capacity
Payload – 1,330 lb.
Towing Capacity
1,200 lb.
Safety Features
Steel front bumper
All MULE 4010 TRANS Series side x side’s Rollover Protective Structure (ROPS) meets the performance requirements of SAE J1194
Warranty
Kawasaki strong 3-year limited
