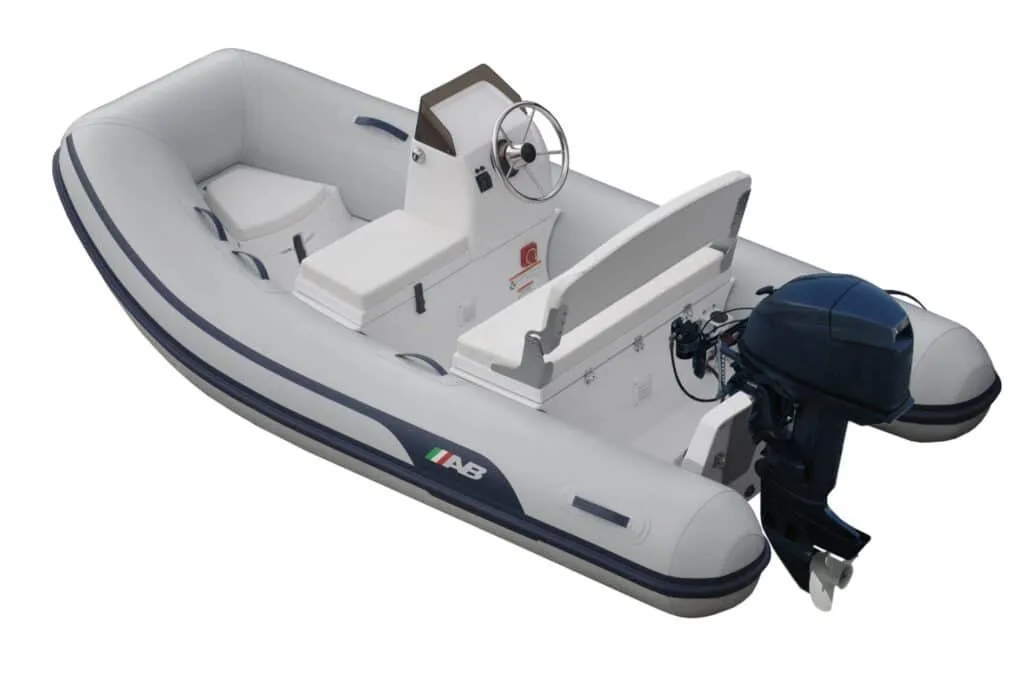

AB Mares 10 VSX Inflatable Boat (SIB)

AB Mares 10 VSX Inflatable Boat (SIB)

KEY FEATURES

• New Console with Cupholder & SS Grab Handle
• Foldable Console
• Mechanical Steering System and Wheel
• LED Navigation Lights
• All Around LED Anchor Lights
• “V” Hull
• SS Gas Springs for easy lifting
• Solid Rubrail

SPECS

• Overall length: 10′ 6″ / 3.19m
• Overall Beam: 5′ 7″ / 1.72m
• Inside Length: 7′ 7″ / 2.31m
• Inside Beam: 2′ 8″ / 0.81m
• Tube Diameter: 17″ / 0.43m
• Number of Chambers: 3
• Person Capacity: 4
• Weight: 287lbs / 130kg
• Recommended HP: 25hp / 18.7kw
• Maximum HP: 30hp / 22.4kw
• Shaft Length: 15’’ – 20″ / 38.1cm – 50.8cm
• RDC Design Category: C

STANDARD EQUIPMENT

STANDARD EQUIPMENT

• Hand Laid Fiberglass Deep “V” Hull
• Stringer System Laminated into Hull
• Diamond Shape Non-skid Deck
• Plastic External Transom Plate
• Aluminum Internal Transom Plate
• 1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
• 1 Port Inside Transom Orca (CSM) Fabric Handles on Tubes
• 2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes
• Raised Single Rub Rail
• Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
• Orca (CSM) Five Layer Coated Fabric
• Hand Pump
• Maintenance Kit
• Owner’s Manual
• Closed Cell Foam Upholstery
• New Integrated Fiberglass Console with Cupholder & Lateral Seat with Cushion
• Foldable Console
• Integrated Stern Seat with Storage
• 2 Deck Drain
• Bow Locker/Seat
• Bow Hatch Cushion
• Console Front Access Lid
• LED Navigation Side Lights
• 360° White Light Navigation Pole
• 4 Stainless Steel Davit Lifting Points
• Stainless Steel Bow Eye
• Stainless Steel Tow Rings & Tie Downs
• Stainless Steel Console Grab Rail
• Hull Drain with Plug
• 2  Waterproof Rocker Switches with Circuit Brakers
• Battery Box
• Battery Switch
• Fuel and Water Separator Filter
• Automatic Bilge Pump 500 GPH
• Mechanical Steering System
• Stainless Steel Steering Wheel
• Complete Tin Wiring & Heat Shrink Sealed Terminals
• 3 Layers Reinforced Seams

Additional Information

Weight 262 kg
Max-passenger
4
