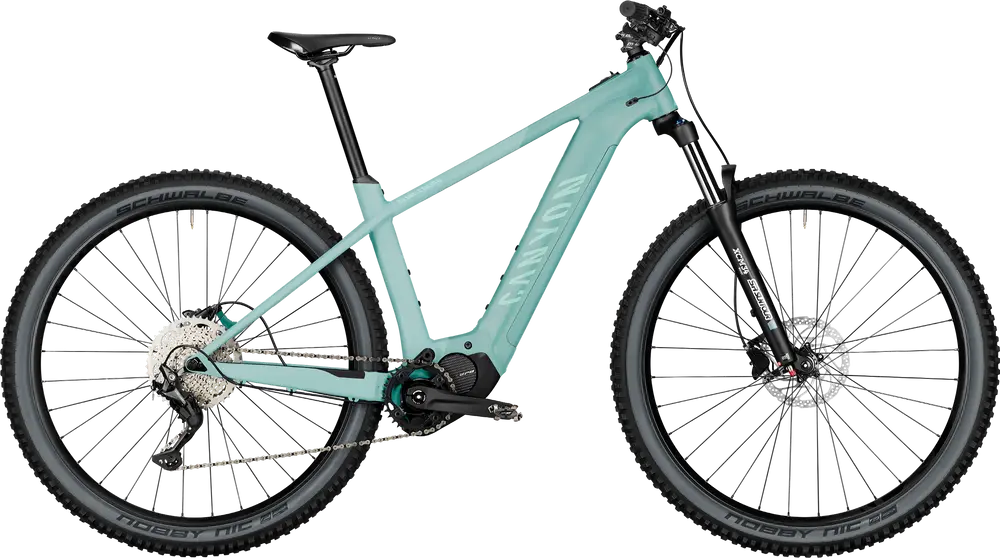

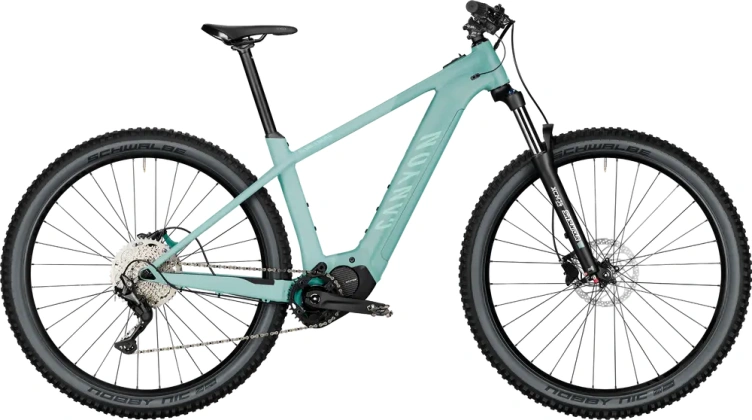

2022 Canyon Grand Canyon:ON 7 A 27.5″ / 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Build
| Frame |
Canyon Grand Canyon [ON], Canyon Grand Canyon:ON aluminium frame. A downtube-integrated battery can be removed in seconds. With USB-C top tube port for charging smartphones, GPS-devices, or lights. Category: 3e., Axle dimension: 12×148 mm, Material: Aluminium (AL) Colors: Dark Ocean; Flaming Cherry; Cool Iceberg |
|---|---|
| Fork |
Suntour XCM34, 120mm, 120mm of front suspension, 29er fork, Boost 110 spacing, 34mm stanchions, coil spring with preload adjuster |
| Stem |
FSA Comet 35, Clamping Diameter: 35,0 mm |
| Handlebar |
FSA Comet Alloy 35 Riser, Width: 760 mm, Rise: 25 mm |
| Saddle |
Fizik Terra Alpaca X5 |
| Seatpost |
Iridium, Clamp diameter: 30,9 mm |
| Grips |
Canyon Lock-On Grips, Get the ideal mix of incredible direct feedback and comfort. The grips always stay firmly in place, thanks to the screw-tight clamp. |
Groupset
| Rear Derailleur |
Shimano Deore M4120, 10/11-speed, Cage length: long |
|---|---|
| Crank |
FSA CK 752 E-MTB, Number of chainrings: 1 |
| Shifters |
Shimano Deore M4100, 10-fach |
| Cassette |
Shimano Deore, 10-speed (11-46), All-steel cog design, Shimano HG freehub compatible, Gear range: 11-46T, weight: 360 g, |
| Chain |
KMC X10-93 10s, Durable half nickel plated chain. | KMC X10-93 NP/GY 10-speed Chain |
| Chain Guide |
Canyon Chainguide EP1001-02, This Canyon chain guide keeps the chain safe and secure on bumpy terrain. |
| Brakes |
Shimano MT200 |
Wheels
| Rims |
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | TRYP 30 | Shimano MT400, Shimano MT400 rear hub with Boost 148 spacing, TRYP 30 aluminum rim, 30mm inner rim width |
|---|---|
| Tires |
Schwalbe Nobby Nic Performance 2.6, Width: 2,6″ |
| Disk Rotors |
Shimano RT30 | Shimano EM300, Disc Mount: Centerlock | Shimano SM-RT30 Brake Rotor |
Electric Components
| Motor |
Shimano Steps EP8 Motor, High-torque motor. Maximum torque: 85 Nm. 3 app-tunable support modes: Eco, Trail, Boost. |
|---|---|
| Battery |
Depending on your selected configuration. |
| Remote |
ELPA SHIM SC-E7000 Display Set 35 |
