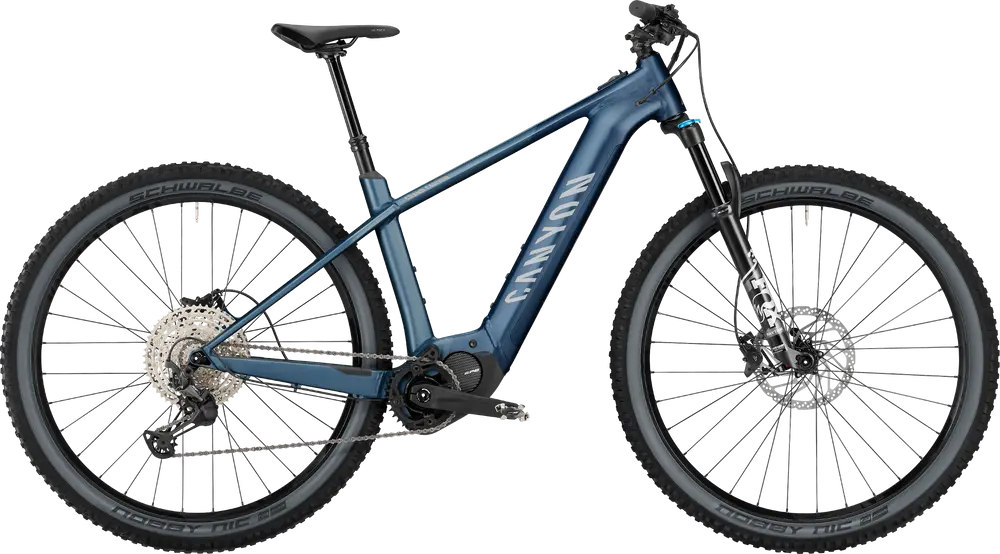

2022 Canyon Grand Canyon:ON 9 A 27.5″ / 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Build
| Frame |
Canyon Grand Canyon [ON], Canyon Grand Canyon:ON aluminium frame. A downtube-integrated battery can be removed in seconds. With USB-C top tube port for charging smartphones, GPS-devices, or lights. Category: 3e., Axle dimension: 12×148 mm, Material: Aluminium (AL) BB Standard: STEPS, Press Fit Colors: Stealth; Dark Ocean |
|---|---|
| Fork |
FOX 34 Rhythm Grip, 120mm, 120mm of front suspension. 29er fork. Boost 110 spacing. 34mm stanchions, 2-Position Sweep Adjust compression adjuster, adjustable rebound damping |
| Bottom Bracket |
STEPS, press-fit |
| Stem |
FSA Comet 35, Clamping Diameter: 35,0 mm |
| Handlebar |
FSA Comet Alloy 35 Riser, Width: 760 mm, Rise: 25 mm |
| Saddle |
Fizik Terra Alpaca X5 |
| Seatpost |
Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm |
| Grips |
Canyon Lock-On Grips, Get the ideal mix of incredible direct feedback and comfort. The grips always stay firmly in place, thanks to the screw-tight clamp. |
Groupset
| Rear Derailleur |
Shimano Deore XT M8100 12speed, Precise 1×12 drivetrain. |
|---|---|
| Crank |
Shimano STEPS E-MTB, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms |
| Shifters |
Shimano Deore M6100 12speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment., 133 g |
| Cassette |
Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness., Gear range: 10-51 |
| Chain |
Shimano CN-M6100 12s |
| Chain Guide |
Canyon Chainguide EP1001-02, This Canyon chain guide keeps the chain safe and secure on bumpy terrain. |
| Brakes |
Shimano MT410 2-piston, rear brake, Deore-caliber, 2-piston disc brake, resin pads | Shimano Deore M4100 |
Wheels
| Rims |
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | Iridium 30 | Shimano MT410, Shimano MT410 rear hub with Boost 148 spacing, Iridium 30 aluminum rim, 30mm inner rim width |
|---|---|
| Tires |
Schwalbe Nobby Nic Performance 2.6, Width: 2,6″ |
| Disk Rotors |
Shimano SM-RT30 Center lock 203 mm, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano RT-EM300 STEPS, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only. |
Electric Components
| Motor |
Shimano Steps EP8 Motor, High-torque motor. Maximum torque: 85 Nm. 3 app-tunable support modes: Eco, Trail, Boost. |
|---|---|
| Battery |
Shimano BT-E8036, Slimline Shimano battery with 630 Wh capacity. Chargeable either in the bike, or when removed. Adapter for external charging not included. |
| Remote |
ELPA SHIM SC-E7000 Display Set 35 |
