Description

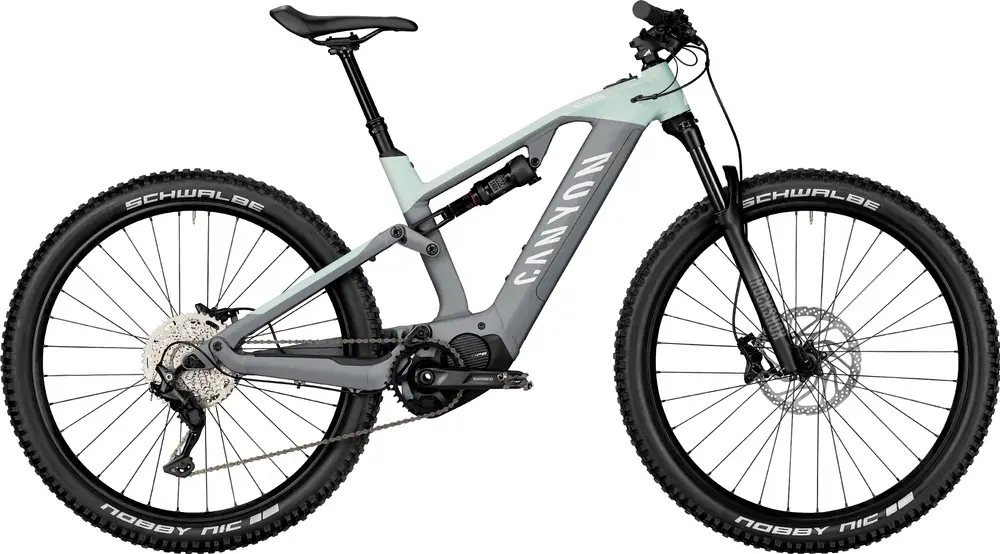

2022 Canyon Neuron:ON 7 WMN A 27.5″ / 29″ aluminum frame full suspension trail e-bike with upper mid-range components.

Build

Frame

Canyon Neuron:ON, Aluminium frame, 130mm of rear suspension on Med-XL frames (125mm travel on XS-SM frames), award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (180)

BB Standard: STEPS, Press Fit

Color: Quantum Grey

Fork

RockShox Judy Silver, 130mm, 130mm of front suspension. 29er fork. Boost 110 spacing. 30mm stanchions, TurnKey compression lockout, adjustable rebound damping

Rear Shock

RockShox Deluxe Select R, Provides 130 mm of rear travel. With Maxima Plus damper oil for minimum friction and performance that lasts. External rebound adjustment.

Bottom Bracket

STEPS, press-fit

Stem

Canyon:ON Stem, 35mm clamp diameter, 60mm length

Handlebar

Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise

Saddle

Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g

Seatpost

Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm

Grips

Canyon Lock-On, Get the ideal mix of incredible direct feedback and comfort. The grips always stay firmly in place, thanks to the screw-tight clamp.

Groupset

Rear Derailleur

Shimano Deore, 10-speed, 10/11-speed, max cassette size: 46T. Weight: 331 g, Shadow RD+ chain stabilizing system

Crank

Shimano STEPS E-MTB, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms

Shifters

Shimano Deore, 10-speed, Rear derailleur shifter, 10-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g

Cassette

Shimano Deore, 10-speed (11-46), All-steel cog design, Shimano HG freehub compatible, Gear range: 11-46T, weight: 360 g,

Chain

Shimano HG54 10-speed, Super Narrow HG-X chain, mud-shedding design.

Chain Guide

Canyon Chainguide EP1001-02

Brakes

Shimano MT420, Shimano 4-piston caliper provide 20% more stopping power than equivalent 2-piston version | Shimano BR-MT410 Deore, Deore-caliber, 2-piston disc brake, resin pads

Wheels

Rims

Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | TRYP 30 | Shimano MT400, Shimano MT400 rear hub with Boost 148 spacing, TRYP 30 aluminum rim, 30mm inner rim width

Tires

Schwalbe Nobby Nic Performance, 2.6, 29×2.6″

Disk Rotors

Shimano SM-RT30 Center lock 203 mm, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano RT-EM300 STEPS, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
