Description

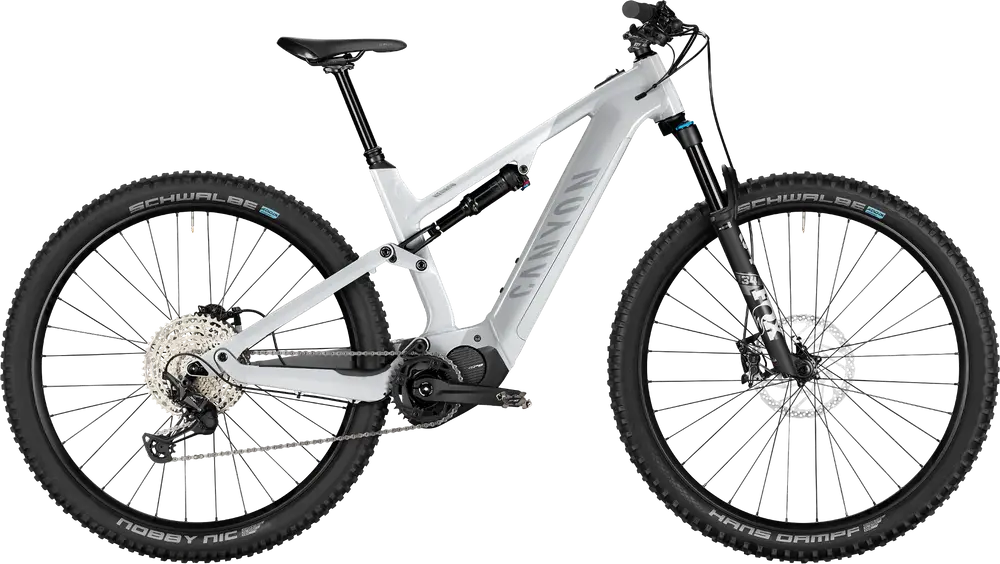

2022 Canyon Neuron:ON 8 A 27.5″ / 29″ aluminum frame full suspension trail e-bike with upper mid-range components.

Build

Frame

Canyon Neuron:ON, Canyon Neuron:ON aluminium frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12×148 mm, Material: Aluminium (AL)

BB Standard: STEPS, Press Fit

Colors: Stealth; Raw Concrete

Fork

FOX 34 Performance Elite 29, Air-sprung with 130 mm travel. Grip2 cartridge. A huge amount of tuning options, like HS/LS compression and rebound. Axle dimensions: 15 x 110 mm., Travel: 130 mm, Fork steer tube diameter: 1 1/8″ – 1,5″

Rear Shock

FOX FLOAT DPS Performance, This air-sprung shock provides 130 mm of rear travel. You can minimise rear triangle movement for more efficient climbing using the two-position platform lever. Eye-to-eye: 210 x 50 mm (M-XL), 190 x 45 mm (S) .

Bottom Bracket

STEPS, press-fit

Stem

FSA Comet 35, Clamping Diameter: 35,0 mm

Handlebar

FSA Comet Alloy 35 Riser, Width: 760 mm, Rise: 25 mm

Saddle

Fizik Terra Alpaca X5

Seatpost

Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm

Grips

Canyon Lock-On, Get the ideal mix of incredible direct feedback and comfort. The grips always stay firmly in place, thanks to the screw-tight clamp.

Groupset

Rear Derailleur

Shimano Deore XT M8100 12speed, Precise 1×12 drivetrain.

Crank

Shimano STEPS E-MTB, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms

Shifters

Shimano Deore M6100 12speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment., 133 g

Cassette

Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness., Gear range: 10-51

Chain

Shimano CN-M6100 12s

Chain Guide

Canyon Chainguide EP1001-02, This Canyon chain guide keeps the chain safe and secure on bumpy terrain.

Brakes

Shimano XT M8120, High-power 4-piston brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads, 410 g | Shimano XT BR-M8100, Shimano’s lighter duty XT brake, reach adjust, quick pad retraction, banjo-type connection, ICE TECH brake pads

Wheels

Rims

Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | Iridium 30 | Shimano MT410, Shimano MT410 rear hub with Boost 148 spacing, Iridium 30 aluminum rim, 30mm inner rim width

Tires

Schwalbe Nobby Nic SuperTrail Speedgrip, 29×2.6″. Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version | Schwalbe Hans Dampf SuperTrail, 2.6, 29×2.6″. Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version

Disk Rotors

Shimano SM-RT30 Center lock 203 mm, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano RT-EM300 STEPS, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.

Electric Components

Motor

Shimano Steps EP8 Motor, High-torque motor. Maximum torque: 85 Nm. 3 app-tunable support modes: Eco, Trail, Boost.

Battery

Shimano BT-E8036, Slimline Shimano battery with 630 Wh capacity. Chargeable either in the bike, or when removed. Adapter for external charging not included.

Remote

ELPA SHIM SC-E7000 Display Set 35
