Description

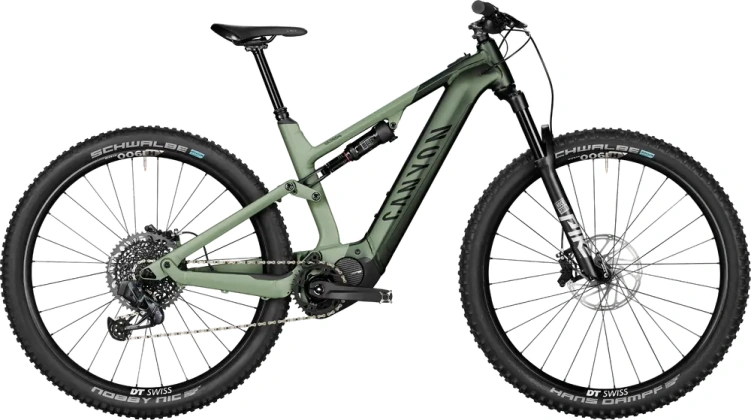

2022 Canyon Neuron:ON 9 A 27.5″ / 29″ aluminum frame full suspension trail e-bike with high-end components.

Build

Frame

Canyon Neuron:ON, Canyon Neuron:ON aluminium frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12×148 mm, Material: Aluminium (AL)

BB Standard: STEPS, Press Fit

Color: Dark Sage

Fork

Rockshox Pike Select +, Air-sprung fork with 130 mm travel. Improved DebonAir air spring. Charger 2.1 damper. Low-friction SKF wiper seals and Maxima Plush damper oil for minimum friction and performance that lasts. Axle dimensions: 15×110 mm., Travel: 130 mm, Fork steer tube diameter: 1 1/8″ – 1 1/4″

Rear Shock

RockShox Deluxe Select R, Provides 130 mm of rear travel. With Maxima Plus damper oil for minimum friction and performance that lasts. External rebound adjustment.

Bottom Bracket

STEPS, press-fit

Stem

FSA Comet 35, Clamping Diameter: 35,0 mm

Handlebar

FSA Comet Alloy 35 Riser, Width: 760 mm, Rise: 25 mm

Saddle

Fizik Terra Alpaca X5

Seatpost

Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm

Grips

Canyon Lock-On, Get the ideal mix of incredible direct feedback and comfort. The grips always stay firmly in place, thanks to the screw-tight clamp.

Groupset

Rear Derailleur

SRAM GX Eagle AXS 12s, Next-gen wireless 1×12 groupset. App-configurable.

Crank

Shimano STEPS E-MTB, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms

Shifters

SRAM GX Eagle AXS Controller, Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy.

Cassette

SRAM GX Eagle, 12-speed (10-52), Cassette size: 10-52T, Gear range: 520% | SRAM GX XG-1275 12-speed Cassette 10-52

Chain

SRAM GX Eagle 12s, Strong and sturdy 12 speed chain with SRAM’s easy to use powerlink. | SRAM GX EAGLE 12-speed Chain 126L

Chain Guide

Canyon Chainguide EP1001-02, This Canyon chain guide keeps the chain safe and secure on bumpy terrain.

Brakes

SRAM Code R

Wheels

Rims

DT Swiss H 1900 Spline Hybrid 29, Rotor mount: IS 6-bolt | DT SWISS H 1900 Spline Hybrid 29, Rotor mount: IS 6-bolt

Tires

Schwalbe Nobby Nic SuperTrail Speedgrip, 29×2.6″. Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version | Schwalbe Hans Dampf SuperTrail, 2.6, 29×2.6″. Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version

Disk Rotors

SRAM Centerline, 200mm, SRAM’s 200mm Centerline front rotor ensures you always have stopping power to spare. | SRAM Centerline Rounded 6-Bolt Brake Rotor 200mm | SRAM Centerline Rounded Brake Rotor 180mm
