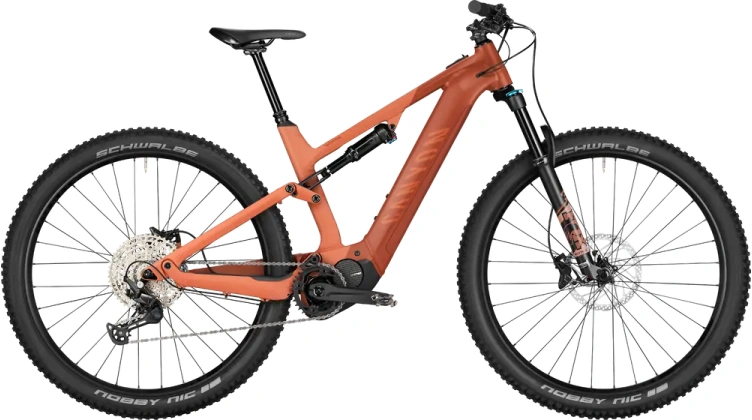

2022 Canyon Neuron:ON 7 A 27.5″ / 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Build
Frame | Canyon Neuron:ON, Canyon Neuron:ON aluminium frame, 130 mm rear travel in sizes M-XL (125 mm in sizes XS-S). Incredible kinematics thanks to Triple Phase Suspension design. Integrated battery. Boost standard rear axle (148 mm). Post mount brakes (180 mm rotors)., Axle dimension: 12×148 mm, Material: Aluminium (AL) BB Standard:Â BSA, 73mm, Threaded Colors:Â Stealth; Washed Denim; Burnt Clay |
---|---|
Fork | FOX 34 Rythm, Air-sprung all-mountain fork with 130 mm travel. Fork shaft diameter: tapered, 1.5″-1 1/8″. Stanchion diameter: 34 mm. Axle dimensions: 15 x 110 mm., Travel: 130 mm, Fork steer tube diameter: 1 1/8″ – 1 1/4″ |
Rear Shock | FOX FLOAT DPS Performance, This air-sprung shock provides 130 mm of rear travel. You can minimise rear triangle movement for more efficient climbing using the two-position platform lever. Eye-to-eye: 210 x 50 mm (M-XL), 190 x 45 mm (S) . |
Bottom Bracket | BSA, 73mm, threaded |
Stem | FSA Comet 35, Clamping Diameter: 35,0 mm |
Handlebar | FSA Comet Alloy 35 Riser, Width: 760 mm, Rise: 25 mm |
Saddle | Fizik Terra Alpaca X5 |
Seatpost | Iridium Dropper Post, Move more freely on steep descents, by dropping down saddle with the press of a handlebar-mounted button. With internal cabling., Clamp diameter: 30,9 mm |
Grips | Canyon Lock-On, Get the ideal mix of incredible direct feedback and comfort. The grips always stay firmly in place, thanks to the screw-tight clamp. |
Groupset
Rear Derailleur | Shimano Deore, 12-speed, 1×12 drivetrain for simpler, intuitive shifting. Long-cage design is compatible with wide-range cassettes. |
---|---|
Crank | FSA CK 752 E-MTB, Number of chainrings: 1 |
Shifters | Shimano Deore M6100 12speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment., 133 g |
Cassette | Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness., Gear range: 10-51 |
Chain | Shimano CN-M6100 12s |
Chain Guide | Canyon Chainguide EP1001-02, This Canyon chain guide keeps the chain safe and secure on bumpy terrain. |
Brakes | Shimano MT420, Shimano 4-piston caliper provide 20% more stopping power than equivalent 2-piston version | Shimano BR-MT410 Deore, Deore-caliber, 2-piston disc brake, resin pads |
Wheels
Rims | Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | Iridium 30 | Shimano MT410, Shimano MT410 rear hub with Boost 148 spacing, Iridium 30 aluminum rim, 30mm inner rim width |
---|---|
Tires | Schwalbe Nobby Nic Performance, 2.6, 29×2.6″ |
Disk Rotors | Shimano SM-RT30 Center lock 203 mm, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano RT-EM300 STEPS, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only. |
Electric Components
Motor | Shimano Steps EP8 Motor, High-torque motor. Maximum torque: 85 Nm. 3 app-tunable support modes: Eco, Trail, Boost. |
---|---|
Battery | Shimano BT-E8036, Slimline Shimano battery with 630 Wh capacity. Chargeable either in the bike, or when removed. Adapter for external charging not included. |
Remote | ELPA SHIM SC-E7000 Display Set 35 |
