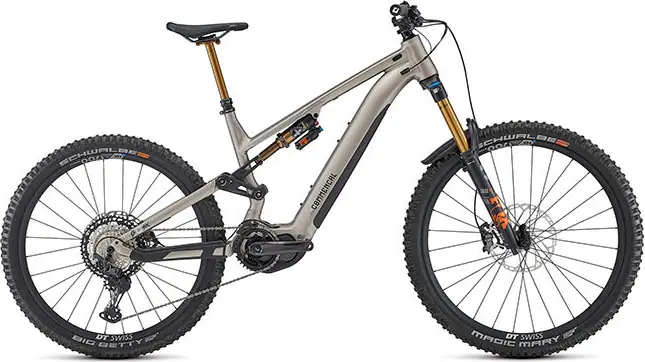

2022 Commencal META POWER SX SIGNATURE A 29″ / 27.5″ aluminum frame full suspension enduro e-bike with high-end components.

Build

Frame

2022 META POWER, 165 mm travel, 29′-27.5”’, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

Color: Champagne, Matte Finish

Fork

FOX 38 Factory E-Bike, 170 mm travel, 29″, Grip2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, oversized crown, 3 Tokens

Rear Shock

FOX Float X Factory, 230 x 65 mm, HSC, LSC, HSR,LSR, 2-postion adjustment

Bottom Bracket

SHIMANO

Headset

ACROS ZS56 / ZS66, Alloy cups, sealed bearings

Stem

RIDE ALPHA Freeride 40, 40 mm extension, 31,8 mm

Handlebar

RIDE ALPHA R20 POWER on S – RIDE ALPHA R27 POWER on M / L / XL, Internal Di2 cable routing – 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S – 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L – 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

Saddle

FIZIK Terra Aidon X3, Kium Mobius rails

Seatpost

Fox Transfer Factory, 31.6 mm, travel: 125 mm on S, 175 mm on M/L & 200 mm on XL, SHIMANO SL-MT500 remote

Grips

ODI Elite Motion, Soft pro compound, single clamp, black

Groupset

Rear Derailleur

SHIMANO XT, 12s

Crank

SHIMANO FC-M8150, 160 mm crank arms

Shifters

SHIMANO XT, 12s

Cassette

SHIMANO XT, 12s, 10-51t

Chain

SHIMANO XT, 12s

Chain Guide

RIDE ALPHA EP8, 32-34t

Brakes

SHIMANO XT, 4 pistons, I-Spec EV compatible

Wheels

Rims

Rear: DT SWISS HX1700 Spline – Front: DT SWISS HX1700 Spline, Rear: 27.5”, 28h, welded, 30 mm inner width rear – Front: 29”, 28h, welded, 30 mm inner width front

Front Hub

Rear: DT SWISS 350 – Front: DT SWISS 350, Rear: 28h, sealed bearings, 24t, e-bike specific – Front: 28h, sealed bearings

Rear Hub

Rear: DT SWISS 350 – Front: DT SWISS 350, Rear: 28h, sealed bearings, 24t, e-bike specific – Front: 28h, sealed bearings

Tires

Rear: SCHWALBE Big Betty – Front: SCHWALBE Magic Mary, Rear: 27.5″x2.4″, Super Trail, Addix Soft, Tubeless Easy – Front: 29″x2.4″, Super Trail, Addix Soft, Tubeless Easy

Disk Rotors

SHIMANO SM-RT66 220 mm, 6-bolt, bolt-on magnet

Electric Components

Motor

SHIMANO DU-EP800, Max. torque: 85N.m, 250W

Battery

SHIMANO BT-E8036, 630Wh

Remote

SHIMANO SC-EM800, LCD colored display featuring: Clock, Assist mode display, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Estimated range, Range overview, Cadence, Human output power (as scale indicator), Calorie setting, Maintenance alert, Bluetooth LE connection (for E-Tube Project communication)
