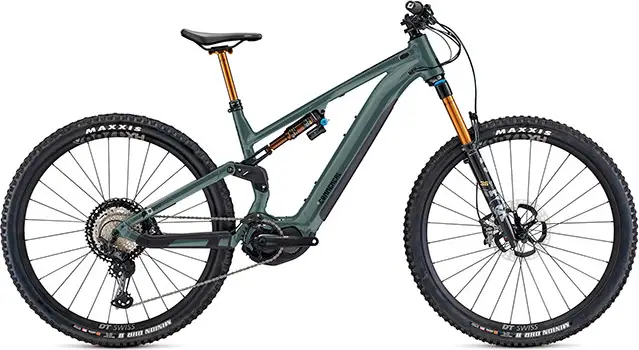

2022 Commencal META POWER TR SIGNATURE A 29″ aluminum frame full suspension trail e-bike with high-end components.
Build
Frame | 2021 Meta Power TR, 140 mm travel, 29”, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings Color: Keswick Green, Shiny Finish |
---|---|
Fork | FOX 36 Factory E-Bike, 150 mm travel, 29″, Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, oversized crown |
Rear Shock | FOX DPX2 Factory, 210 x 55 mm, LSC, LSR, 3-position adjustment |
Bottom Bracket | SHIMANO |
Headset | ACROS ZS56 / ZS66, Alloy cups, sealed bearings |
Stem | RIDE ALPHA Freeride 50, 50 mm extension, 31,8 mm |
Handlebar | RIDE ALPHA R20 E-Bike, 31,8 mm, 780 mm width, 20 mm rise, Alloy 6061, electric wire internal routing |
Saddle | WTB Silverado, Narrow shape, Cr-Mo rails |
Seatpost | Fox Transfer Factory, 31,6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L & XL, SHIMANO SL-MT500 remote |
Grips | ODI Elite Motion, Soft pro compound, single clamp, black |
Groupset
Rear Derailleur | SHIMANO XT, 12s |
---|---|
Crank | SHIMANO FC-M8150, 160 MM crank arms |
Shifters | SHIMANO XT, 12s |
Cassette | SHIMANO XT, 12s, 10-51t |
Chain | SHIMANO XT, 12s |
Chain Guide | RIDE ALPHA EP8, 32-34t |
Brakes | SHIMANO XT, 4 pistons, I-Spec EV compatible |
Wheels
Rims | DT SWISS H1700 Spline, 29”, 28h, 30 mm inner width |
---|---|
Front Hub | Rear: DT SWISS 350 – Front: DT SWISS 350, Rear: 28h, sealed bearings, e-bike specific – Front: 28h, sealed bearings |
Rear Hub | Rear: DT SWISS 350 – Front: DT SWISS 350, Rear: 28h, sealed bearings, e-bike specific – Front: 28h, sealed bearings |
Tires | Rear: MAXXIS DHR II – Front: MAXXIS DHR II, Rear: 29 x 2.4, 3C, EXO+, Tubeless Ready – Front: 29 x 2.4, 3C, EXO+, Tubeless Ready |
Disk Rotors | SHIMANO RT-MT900 203 mm, Centerlock, integrated magnet |
Electric Components
Motor | SHIMANO DU-EP800, 250 W, 85 Nm |
---|---|
Battery | SHIMANO BT-E8036, 630Wh |
Remote | SHIMANO SC-EM800, LCD colored display featuring: Clock, Assist mode display, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Estimated range, Range overview, Cadence, Human output power (as scale indicator), Calorie setting, Maintenance alert, Bluetooth LE connection (for E-Tube Project communication) |
