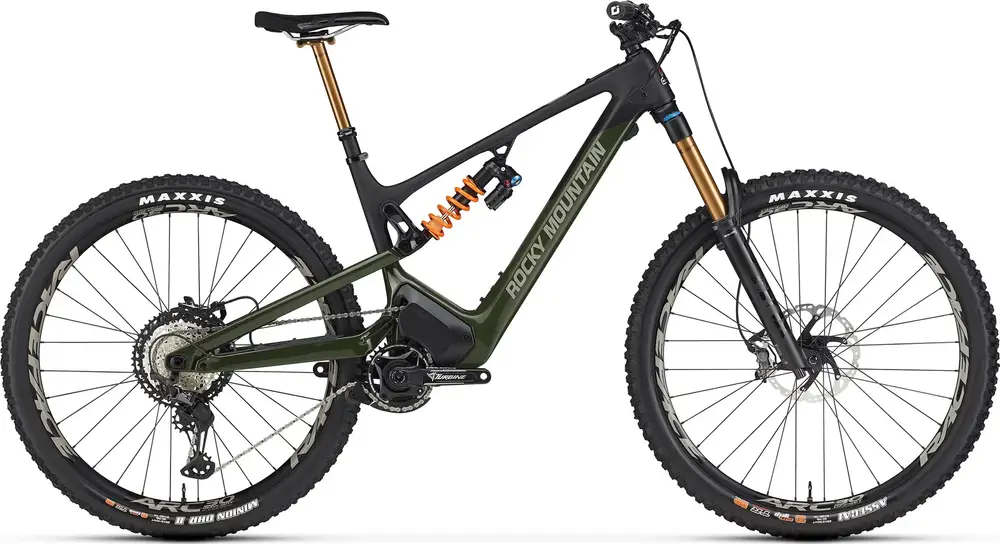

2022 Rocky Mountain Altitude Powerplay Carbon 90 Rally Edition A 29″ carbon frame full suspension enduro e-bike with high-end components.
Build
| Frame | SMOOTHWALL Carbon. Integrated Display. Mid-High Pivot Smoothlink Suspension System. Press Fit BB. RIDE-4 Adjustable Geometry + Suspension Rate. 160mm Travel. SMOOTHWALL Carbon Rear Triangle Color: Green / Carbon |
|---|---|
| Fork | Fox 38 Float EVOL GRIP2 Factory Series 170mm | 44mm Offset |
| Rear Shock | Fox DHX2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230×62.5mm | Size-Specific tune in FAQ |
| Bottom Bracket | Race Face BB89.5 30mm |
| Headset | FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem | Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40m |
| Handlebar | Race Face Turbine R | 780mm Width | 35mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp |
| Saddle | WTB Volt Race 142 |
| Seatpost | Fox Transfer Factory Series 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm |
| Grips | ODI Elite Pro Lock On |
Groupset
| Rear Derailleur | Shimano XT |
|---|---|
| Crank | Race Face Turbine Cinch 34T | 30mm Spindle | Crank Length: SM – MD = 165mm | LG – XL = 170mm |
| Shifters | Shimano XT |
| Cassette | Shimano XT 10-51T |
| Chain | Shimano M8100 |
| Brakes | Shimano XT Trail 4 Piston | Metal Pads | F: Shimano RT86 203mm | R: Shimano RT86 203mm |
Wheels
| Rims | Race Face ARC HD 30 | 32H | Tubeless Ready – Tape | Valves Incl |
|---|---|
| Spokes | F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0 |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | DT Swiss Hybrid 350 Boost 148mm | 24T Star-Ratchet |
| Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready | Cushcore Pro Tire Insert |
Electric Components
| Motor | Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 700w Peak Power | 108Nm | Rocky Mountain Micro Remote | Low RPM – High Efficiency Classe 1 eMTB System | Designed in Canada |
|---|---|
| Battery | 720 Wh Removable Integrated Li-Ion | xxx g |
| Remote | Rocky Mountain Micro Remote |
