Rocky Mountain Altitude Powerplay Carbon 90 Rally Edition Bike 2023

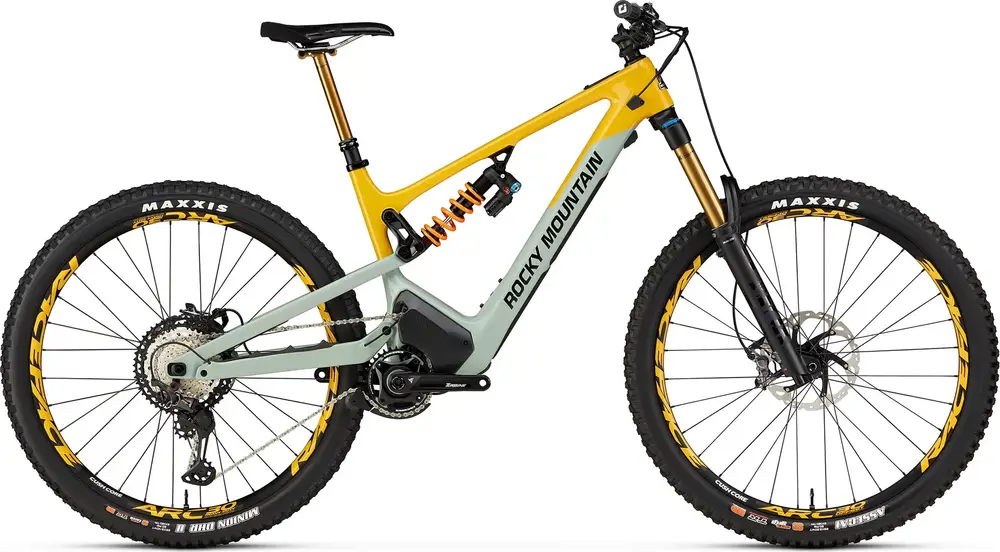

2023 Rocky Mountain Altitude Powerplay Carbon 90 Rally Edition A 29″ carbon frame full suspension enduro e-bike with high-end components.

Build

Frame

SMOOTHWALL Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4 Adjustable Geometry + Suspension Rate | 160mm Travel. SMOOTHWALL Carbon Rear Triangle

Color: Blue / Yellow
Fork

Fox 38 Float EVOL GRIP2 Factory Series 170mm | 44mm Offset
Rear Shock

Fox DHX2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230×62.5mm | Size-Specific tune in FAQ
Bottom Bracket

Race Face BB89 30mm
Headset

FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race
Stem

Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40m
Handlebar

Race Face Turbine R | 780mm Width | 35mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp
Saddle

WTB Volt Race 142
Seatpost

Fox Transfer Factory Series 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Grips

ODI Elite Pro Lock On
Groupset
Rear Derailleur

Shimano XT
Crank

Race Face Turbine Cinch 34T | 30mm Spindle | Crank Length: SM – MD = 165mm | LG – XL = 170mm
Shifters

Shimano XT
Cassette

Shimano XT 10-51T
Chain

Shimano M8100
Brakes

Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT86 203mm | R:Shimano RT86 203mm
Wheels
Rims

Race Face ARC HD 30 | 32H | Tubeless Ready – Tape / Valves Incl
Spokes

F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
Front Hub

Rocky Mountain Sealed Boost 15mm
Rear Hub

DT Swiss Hybrid 350 Boost 148mm | 24T Star-Ratchet
Tires

F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
Electric Components
Motor

Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM – High Efficiency class 1 eMTB System | Designed in Canada
Battery

720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Remote

Rocky Mountain Micro Remote
Charger

Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
