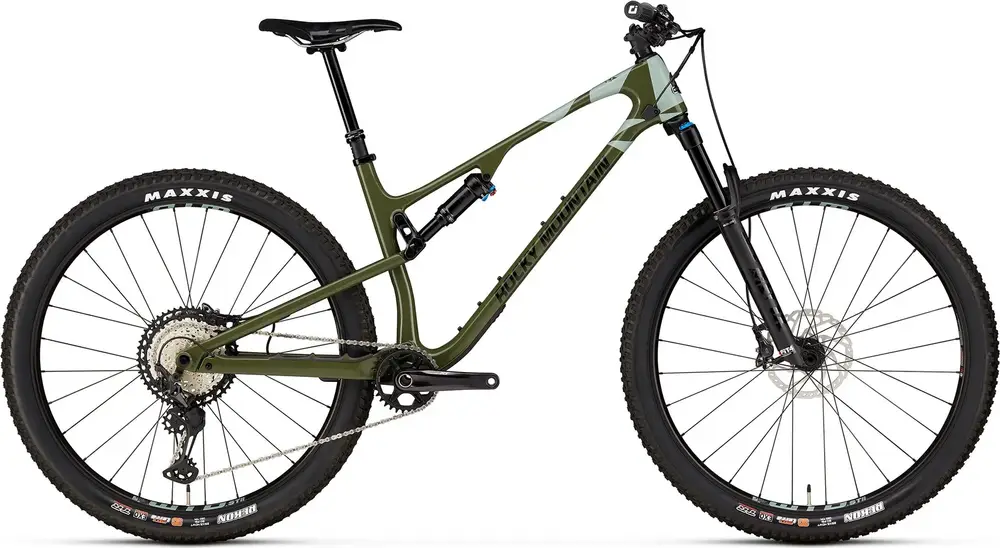

Rocky Mountain Element Carbon 70 Bike 2023

2023 Rocky MountainElement Carbon 70 A 27.5″ / 29″ carbon frame full suspension trail bike with high-end components.

Build

Frame

SMOOTHWALL Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4 Adjustable Geometry + Suspension Rate | 120mm Travel. SMOOTHWALL Carbon Rear Triangle

BB Standard: BSA, 73mm, Threaded

Colors: Green / Blue; Black / Carbon
Fork

Fox 34 Float Performance Elite 130mm | FIT4 Damper | 44mm Offset
Rear Shock

Fox Float DPS Performance Elite | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Bottom Bracket

Shimano SM-BB71
Headset

FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race
Stem

Rocky Mountain 35 XC | 5° Rise | All Sizes = 50m
Handlebar

Rocky Mountain AM | XS = 760mm | SM – XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Saddle

WTB Silverado Race 142
Seatpost

Race Face Turbine R (by Fox) Dropper 30.9mm | XS – SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Grips

ODI Elite Pro Lock On
Groupset
Rear Derailleur

Shimano XT
Crank

Shimano XT | 32T | 24mm Spindle | Crankarm Length: XS = 165mm Crankarm | SM – XL = 170mm
Shifters

Shimano XT
Cassette

Shimano XT 10-51T
Chain

Shimano M8100
Brakes

Shimano XT 2 Piston | Metal Pads | F:Shimano RT66 180mm | R:Shimano RT66 180mm
Wheels
Rims

WTB ST Light i27 TCS 2.0 Tubeless | 28H | Tubeless Ready – Tape / Valves Incl
Spokes

DT Swiss Competition 2.0/1.8/2.0
Front Hub

Rocky Mountain Sealed Boost 15mm
Rear Hub

DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Tires

F: Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4 // R: Maxxis Rekon WT 3C MaxxTerra EXO Tubeless Ready 2.4
