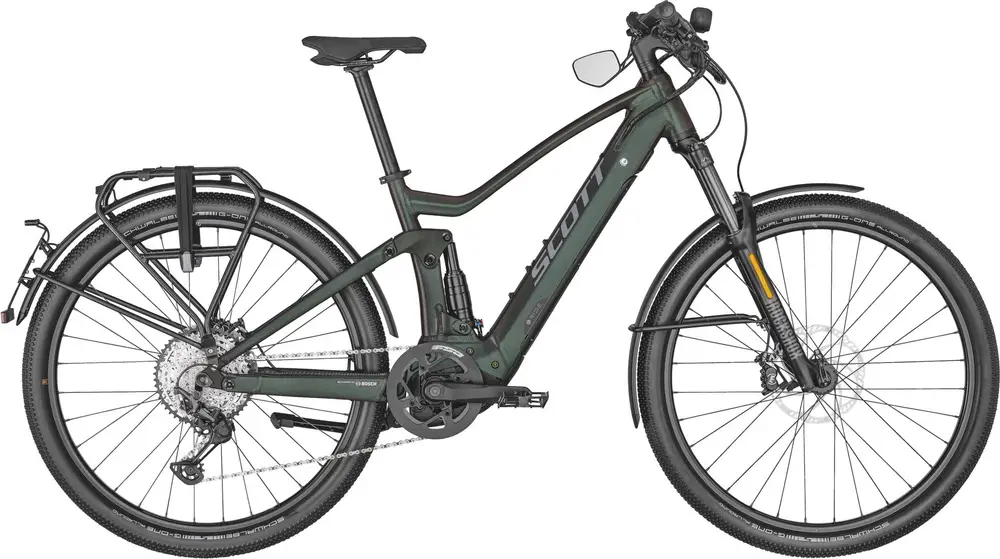

2022 Scott Axis eRIDE FS Speed A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Build
| Frame | Alloy S-XL=29″ / Virtual 4 link kinematic VLK 29″ / Boost 148x12mm 140mm travel / Bosch Integrated Battery Range Booster Ready Tapered Headtube BB Standard: Bosch, Press Fit |
|---|---|
| Fork | Rock Shox Recon Silver Air / Tapered / S-XL 29″/ 140mm Travel / Maxle Lite / Remote Lock Out |
| Rear Shock | X-Fusion NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control -Descend Reb. Adj. Travel 130-85-Lockout / 185X50mm |
| Bottom Bracket | Bosch, press-fit |
| Headset | Syncros FL2.0 Press Fit E2 / Tapered 1.5″-1 1/8″ OD 50/62mm / ID 44/56mm |
| Stem | Syncros FL3.0 with front Light mount and Kiox mount |
| Handlebar | Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip |
| Saddle | Selle Royale Essenza |
| Seatpost | Syncros FL3.0 / 31.6 |
| Pedals | VP VPE-506 |
Groupset
| Rear Derailleur | Shimano XT 12 Speed |
|---|---|
| Front Derailleur | SCOTT Chainguide |
| Crank | FSA CK-745 IS GEN4 MTB 170MM |
| Shifters | Shimano Deore Trigger SL-M6100RA |
| Cassette | Shimano CS-M7100-12 10-51T 12S |
| Chain | KMC E12S |
| Brakes | Magura MT5E 203/F and 203/R rotor |
Wheels
| Rims | Syncros MAXX Disc / 32H Tubeless ready |
|---|---|
| Spokes | Sapim double butted |
| Front Hub | Formula DC-711 / 15x110mm |
| Rear Hub | Formula EMSL-148S / Boost 12x148mm |
| Tires | Schwalbe G-One Allround Performance 29×2.25″ Wired |
Electric Components
| Motor | Bosch Performance Speed |
|---|---|
| Battery | PowerTube 625Wh |
| Remote | Kiox Display |
| Charger | 4A Charger |
