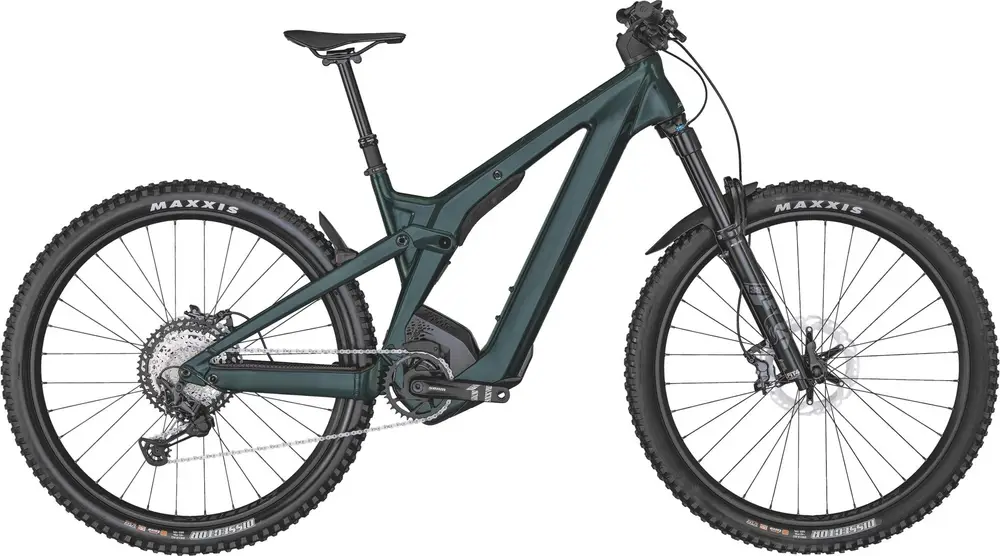

2022 Scott Contessa Patron eRIDE 900 A 29″ carbon frame full suspension enduro e-bike with high-end components.
Build
| Frame | Carbon Main Frame / Alloy SST-CST-Link Virtual 4 link kinematic VLK 29×2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8″ Headtube, Central Kickstand Mount Integr. Cable BB Standard: Bosch, Press Fit |
|---|---|
| Fork | FOX 38 Perf. Elite Air / eMTB+ / FIT4 3-Modes with low Speed adj. / QR Axle 15x110mm axle 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel |
| Rear Shock | FOX NUDE T eRIDE EVOL / Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom large air volume / DPS / Reb. Adj. Travel 160-115-Lockout / 205X60mm |
| Bottom Bracket | Bosch, press-fit |
| Headset | Acros / 1.8″ ZS66 OD74 / integr. Cable |
| Stem | Syncros AM1.5 / 2014 Alloy 31.8mm / 4° / 1 1/8″ |
| Handlebar | Syncros Hixon 1.5 / Alloy 7050D.B. 12mm rise / 9° / 760mm Syncros Women Pro lock-on grips |
| Saddle | Syncros Savona 1.5 V-Concept |
| Seatpost | FOX Transfer Dropper Post 31.6mm / S size 125mm / M & L size 150mm |
Groupset
| Rear Derailleur | Shimano XT / 12 Speed |
|---|---|
| Crank | FSA CK-745 165mm / 34T |
| Shifters | Shimano SL-M8100 |
| Cassette | Shimano CS-M8100 / 10-51 T |
| Chain | Shimano CN-M8100 |
| Chain Guide | e*thirteen / e*spec Slider |
| Brakes | Shimano XT / BR-M8120 4 Piston |
Wheels
| Rims | Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready |
|---|---|
| Spokes | Stainless Black |
| Front Hub | Formula CL-811 / 15x110mm |
| Rear Hub | Formula ECT-1481 / Boost 148x12mm |
| Tires | Maxxis Dissector 29×2.6″ 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra |
| Disk Rotors | Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm |
Electric Components
| Motor | Bosch Performance CX EU: 25kmh / INT: 20mph |
|---|---|
| Battery | PowerTube 750Wh |
| Remote | Bosch LED Remote & Kiox 300 |
| Charger | 4A Charger |
