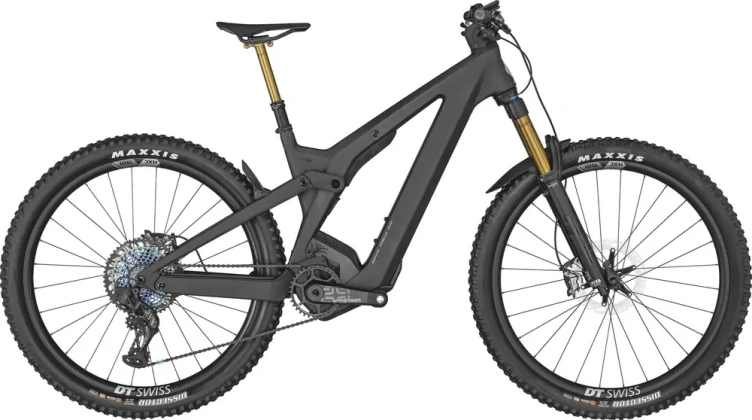

2022 Scott Patron eRIDE 900 Ultimate A 29″ carbon frame full suspension enduro e-bike with ultra high-end components.
Build
| Frame | Carbon Main Frame & SST / Alloy CST-Link Virtual 4 link kinematic VLK 29×2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8″ Headtube, Central Kickstand Mount Integr. Cable BB Standard:Â Bosch, Press Fit |
|---|---|
| Fork | FOX 38 Float Factory Air / Kashima / eMTB+ / FIT4 3-Modes with low Speed adj. / QR Axle 15x110mm axle 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel |
| Rear Shock | FOX NUDE T eRIDE EVOL Kashima / Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom large air volume / DPS / Reb. Adj. Travel 160-115-Lockout / 205X60mm |
| Bottom Bracket | Bosch, press-fit |
| Headset | Acros / 1.8″ ZS66 OD74 / integr. Cable |
| Handlebar | Syncros Hixon iC SL / 15mm Rise / integrated cockpit S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension 7° backsweep / 6° upsweep / Syncros Pro lock-on grips |
| Saddle | Syncros Tofino 1.0 Regular Carbon rails |
| Seatpost | FOX Transfer Factory Dropper Post Kashima 31.6mm / S size 125mm / M & L size 150mm / XL size 175mm |
Groupset
| Rear Derailleur | SRAM XX1 Eagle AXS / 12 Speed Wireless Electronic Shift System |
|---|---|
| Crank | e*thirteen / e*spec Race Carbon / 165mm / 34T |
| Shifters | SRAM Eagle AXS Rocker Controller |
| Cassette | SRAM XG1299 / 10-52 T |
| Chain | SRAM XX1 Eagle |
| Chain Guide | e*thirteen / e*spec Slider |
| Brakes | Shimano XTR / M9120 4 Piston Disc |
Wheels
| Rims | DT Swiss HXC1501 CL F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready Carbon rim 28H / XD Driver Syncros Axle w/Removable Lever with Tool |
|---|---|
| Tires | Maxxis Dissector 29×2.6″ 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra |
| Disk Rotors | Front: RT-MT900 CL 203mm / Rear: RT-EM900 CL 203mm |
Electric Components
| Motor | Bosch Performance CX EU: 25kmh / INT: 20mph |
|---|---|
| Battery | PowerTube 750Wh |
| Remote | Bosch LED Remote & Kiox 300 |
| Charger | 4A Charger |
