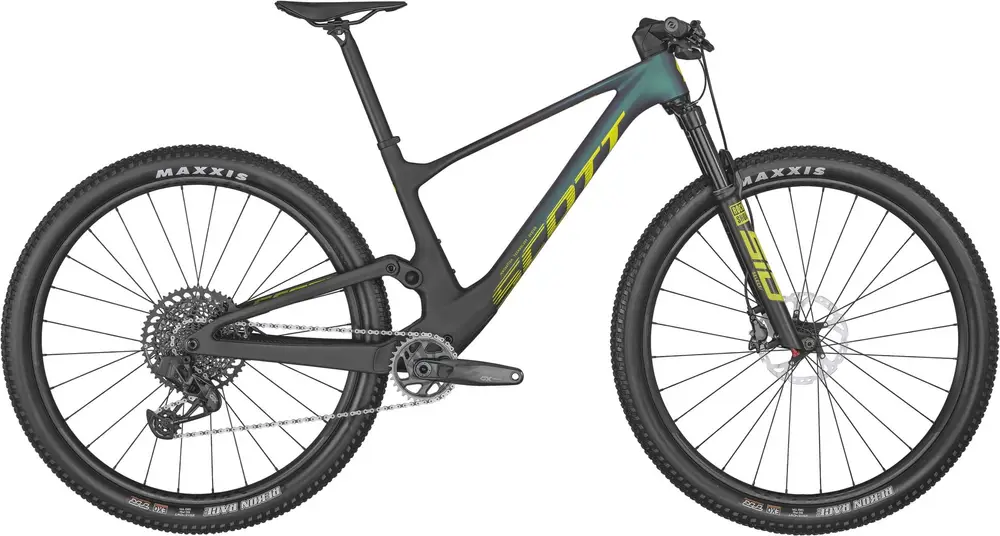

2022 Scott Spark RC Team Issue AXS A 29″ carbon frame full suspension trail bike with high-end components.
Build
| Frame |
Spark RC Carbon HMF Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline BB Standard: BB86/BB92, Press Fit |
|---|---|
| Fork |
RockShox SID Select RL3 Air Custom Charger 3-Mode Damper 15x110mm Maxle Stealth / 44mm offset / Tapered steerer Lockout / Reb. Adj. / 120mm travel |
| Rear Shock |
RockShox NUDE 5 RL3 Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Debon Air / Reb. Adj./ Travel 120-80-Lockout / T165X45mm |
| Bottom Bracket |
SRAM DUB PF 92 MTB Wide / shell 41x92mm |
| Headset |
Syncros – Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
| Stem |
Syncros XC 1.5 Syncros Cable Integration System -12° rise / 7050 Alloy / 31.8mm / 1 1/8″ |
| Handlebar |
Syncros Fraser 1.5 XC Alloy 7075 D.B. Flat Bar / 8° / 740mm Syncros Pro lock-on grips |
| Saddle |
Syncros Belcarra Regular 1.5 Titanium rails |
| Seatpost |
Syncros Duncan 1.5 / 10mm offset 31.6x400mm |
Groupset
| Rear Derailleur |
SRAM GX Eagle AXS / 12 Speed Wireless Electronic Shift System |
|---|---|
| Crank |
SRAM GX Eagle DUB 55mm CL / 32T |
| Shifters |
SRAM GX Eagle AXS Rocker Controller |
| Cassette |
SRAM XG1275 / 10-52 T |
| Chain |
SRAM CN GX Eagle |
| Brakes |
Shimano XT M8100 Disc |
Wheels
| Rims |
Syncros Silverton 2.0-30 6 Bolt F: 15x110mm, R: 12x148mm 30mm Tubeless ready rim / 28H / XD Driver Syncros Axle w/Removable Lever with 6mm Allen, T30 and T25 Tools |
|---|---|
| Tires |
Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead Tubeless Ready / EXO |
| Disk Rotors |
Shimano SM-RT76 / 6 Bolt / 180/F and 160/R |
